| Price: | US $ 105000/Set |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
PAR T1 THIS LINE CONSISTS OF (COMPULSORY) | ||||
1 | Automatic spring feeding machine | 1 set | ||
2 | Conical twin screw extruder SJSZ-80/156 | 1 set | ||
3 | Single screw extruder SJ-45/30 or 65/30 for UV extrusion | 1 set | ||
4 | T-type /hanger type die head (JC-Times brand) | 1 set | ||
5 | Corrugation forming boards | 1 set | ||
6 | Cooling frame and edge cutting unit | 1 set | ||
7 | Haul off machine | 1 set | ||
8 | Plastic cutting machine-guillotine with meter counting | 1 set | ||
9 | Stacker | 1 set | ||
10 | Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc) | |||
11 | Spare parts | 1 set | ||
PART 2 ACCESSORY MACHINE PARTS (OPTIONAL) | ||||
1 | High speed hot and cold mixer SRL-Z 300/600 | 1 set | ||
2 | Plastic crusher SWP-450 | 1 set | ||
3 | Plastic pulverizer SMP-400 | 1 set | ||
4 | Air compressor | 1 set | ||
5 | Industrial water chiller | 1 set | ||
PART 3 SHEET APPLICATIONS | ||||
1 | Roof panels, roof tiles, roof sheets, ceilings | |||
2 | Factories, warehouses, farm building, greenhouses, canopies, walkways, patio covers, Pergolas, cladding | |||
PART 4 PAYMENT, DELIVERY AND AFTER SALE SERVICES | ||||
1 | Payment terms | 40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable | ||
2 | Delivery time | 70 days after receipt of prepayment | ||
3 | Packing method | Wooden cases/pallets with stretching films | ||
4 | Guaranteed time | 18 months for mechanical parts, 12 months for electrical parts | ||
5 | After sale service | Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable | ||
6 | Contact | Ms Lilly Zhou (mob: 0086-15266238607) | ||
Sheet specifications | |
Sheet width | 720,760,820,840,860,880,900,930,950,980,1050mm etc |
Sheet thickness | 0.5, 0.8, 1.0, 1.2, 1.5, 2.0,2.5,3.0mm |
Sheet length | 4m, 6m or customized |
Sheet weight | 1mm thickness 1.4kg-1.85kg/m2, 2.0-2.4 thickness 2.5-3kg/m2 |
Suitable environment | -40(50)ºC-70ºC |
Surface treatment | With UV coating |
Service life | More than 25 years, 10years can be guaranteed |
Colors and tints | Clear, bronze, opal |
Textures | Can be textures |
| Prod Model: | LSJ-80/156+65/30 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

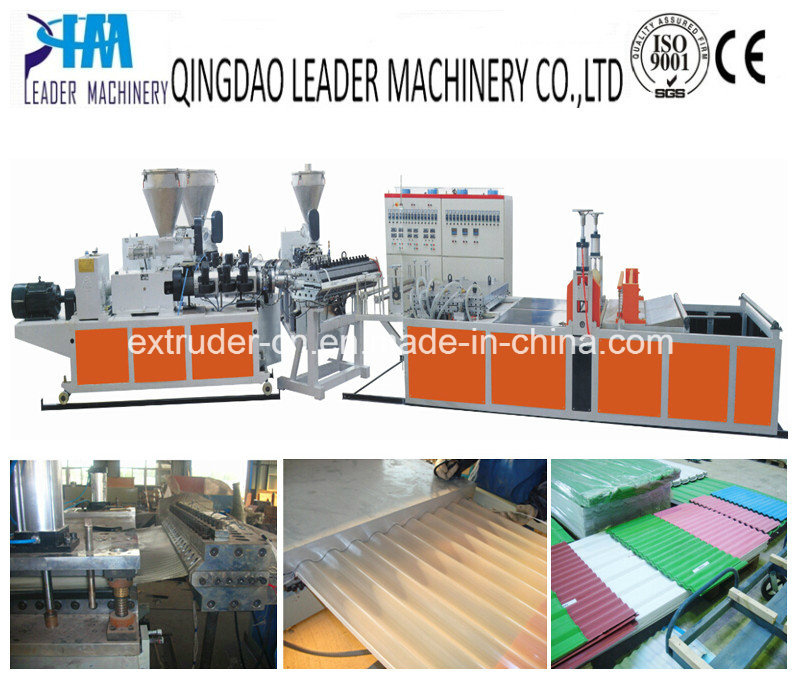

| Name: | UPVC Corrugated/Waved Roofing Tiles Extrusion Line |
| Sheet Width: | 720mm-1050mm |
| Sheet Thickness: | 0.5mm-3mm |
| Sheet Applications: | Roofing Tiles/Sheets/Panels for Warehouses |
| Extruder Model: | Conical Twin Screw Extruder +Single Screw Extruder |
| Die Head: | T-Type Die Head |
| Main Electrical Parts: | ABB, Omron, Rkc, Schneider, Siemens etc |
| Guaranteed Time: | 12 Months |
| Transportation: | 1 Set of 40gp Container and 1 Set of 20gp Containe |
| Product Type: | PVC Board |
| Board Layers: | Single Plate |
| Automation: | Automatic |
| Computerized: | Computerized |
| Certification: | ISO9001:2008 |
