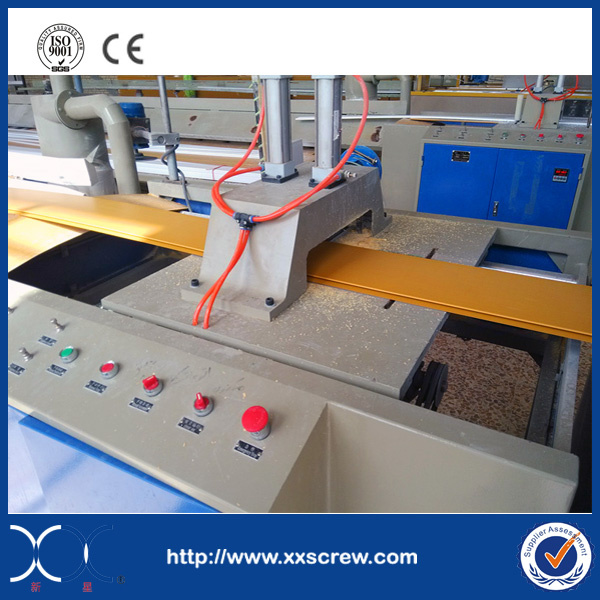

Xinxing brand PVC profile extrusion machine(YF)
1. This production line using the twin-screw extuder machine.
2. This production mainly USed for PVC profile.
3. This production line mainly consisted of host extruder, mold, vacuum tank, haul-off machine, cutting machine, stacker and so on.
4. The host extrusion capacity can be an hour between 150kg to 450kg optional.
5. Adopt the PLC control system, and using the famous British Eurothrm DC speed gonver can make the produce foaming good.
6. Depending on the different mold, the sharping tank can choose 4 meters, 6 meters, 8 meters, 11meters.
7. All movements are controlled by imported PLC, the design is reasonable, the operation is stable, also it can conduct automatic cutting with fixed length.
To view processing videos on Youtube:
https://www.youtube.com/user/xxscrewsh
To download catalogue and videos at:
https://drive.google.com/folderview?id=0BxWoQqV7i7c0LU9MY0hrZ1FVMm8&usp=sharing
TO get more information about the machine line:
Moblie: +86 15618973393
Type |
YF-180 |
YF-240 |
YF-700 |
YF-1000 |
Section bar width(mm) |
180 |
240 |
700 |
1000 |
The length of the vacuum shaping Taiwan(mm) |
2500 |
6000 |
6000 |
8000 |
Degree of Vacuum(Mpa) |
-0.08-0.09 |
-0.08-0.09 |
-0.08-0.09 |
-0.08-0.09 |
Traction Speed(m/min) |
0.5-0.4 |
0.5-0.4 |
0.3-3 |
0.2-0.1 |
Cutting saw Dia(mm) |
400 |
450 |
300 |
320 |
Total Power(kw) |
42 |
98 |
180 |
250 |
Length of line(m) |
20 |
25 |
35 |
45 |
XINXING brand was founded in 1993 at zhoushan city, Zhejiang province, China for barrel and screws manufacture;
Shanghai XINXING was founded in 1999 at Shanghai City, China for complete extrusion machine manufacture for PVC/PE pipe and pelletizing line.
With more than 20 year's experience XINXING has the ability to design and produce different extrusion line for PVC/PE/PP/PET/PS/ABS...Different raw materials with different final products like the PIPE, PROFILE, BOARD, SHEET, PELLET and so on.
And XINXING has exported all the lines to more than 30 countrys in all over the worl.
The mainly market for XINXING is Middle East, Eest Euro, South Asian and South American.
With 20 year's working in the interner market, XINXING has got strong market feedback, and set up reliable agent relation in the above market.
XINXING has the ability, the experience and the willing to offer professional and strong support to all the customer.
