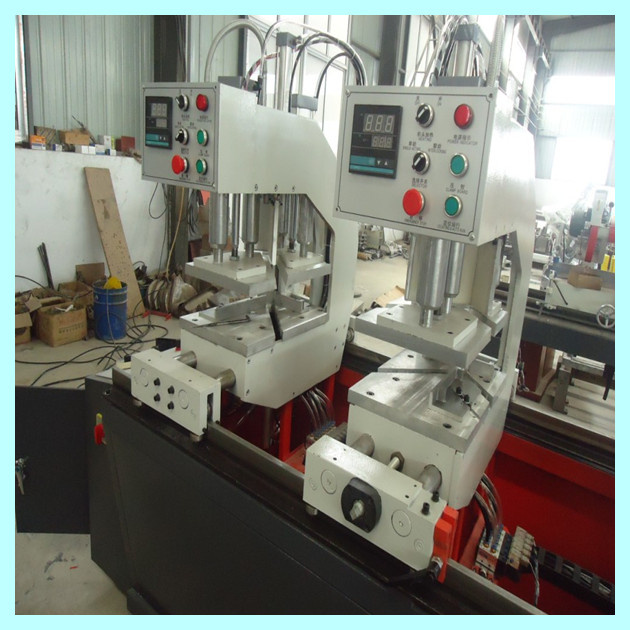

PVC window making machine of Welding Machine
1.Product Description
1).The machine is used for welding and the combination,used for PVC/UPVC/Plastic/Vinyl profile welding for making window door.with programming control and pneumatic driving systems, it has the features of high reliability, large processing range and easy operation, the two heads can work individually, simultaneously and combinative.
2).This machine can weld about 25-50 pieces windows doors per day in 8 working hours., if you extend working time, it process more.
3).This machine, it is our common welding machine, if your profile is Europe profile, it is no problem, if your profile is America type profile,it needs to make backup moulds according to the profile sample, so if it is America type profile, it needs customer post the profile sample to us,then we make the moulds according to the sample.
4).If you profile thickness(hight) is higher than 110mm, and also want to use this common welding machine, we can make this double head welding machine specially to weld to 200mm height if you require,but it needs to customer pay some extra charge about this.
5). All machine parts, we use famous brand:
------PLC:Omron/Mitsubishi,JAPAN
------Sensor: Omron,JAPAN
------Button and contactor: Schneider,FRANCE
------AIR PIPE: RISHUN, JAPAN
-----Cylinder: BAIDI,CHINA TAIWAN
-----Solenoid valve: STNC, CHINA TAIWAN
-----Linear bearing system:SBC,South Korea
6). If you want to welding variable angle, it is no problem, we can add the variable angle device to this welding machine, but it needs customer pay some extra charge if customer require us to add this device.
7).When we do machines, we will make machine according to your local true power supply if you require.
Technical parameters
| Model number | HJ02-3500.2/2A |
| Power supply | 380V /220V 50Hz |
| Air consumption | 100L/min |
| Motor power | 2.5kw |
| Welding length | 400~3300mm |
| Welding profile height | 20~110mm |
| Welding profile width | ≤120mm |
| Motor rotational speed | 2800 r/min |
| Operation air pressure | 0.4 ~ 0.6Mpa |
| Contour dimension(L×W×H) | 4300×1000×1700mm |
| Machine weight(about) | 950kg |
Jinan Better Machinery Co., Ltd. is a large scale enterprise specializing in research, development and production of equipment for plastic doors and windows, equipment for aluminum doors and windows and fabrication equipment for hollow glass.
Our guide principle is "Lead in Development, Strive for Quality, Live to Serve". Our company also developed three series of one hundred kinds of products to satisfy not only the demand of quality and scale but also the individuality designing and manufacture.
With the complete scientific facilities and technical center, export center, network center and training center in professional energy-saving machine for doors and windows, our company wins good fame and our products are sold well in domestic market and also far to Russia, Ukraine, Ethiopia, the United States, and Mongolia.
Depending on research ability, our employees continuously improve the quality of products and customer service. Welcome to visitor our company for business negotiations.
