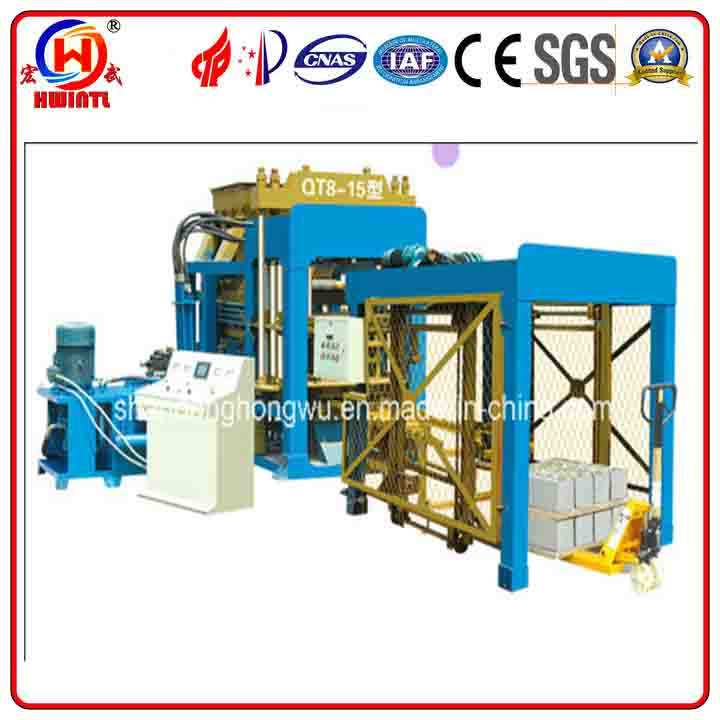

QT8-15 Automatic Brick Making Machine:
1. Super-strong steel structure made of extensive imported original parts, ensuring more stability and reliability for the concrete block machine body.
2. The whole process uses a PLC aptitude control and dialogue system of human-machine interface, easy to analyze the chance signal, ensure the best operation effect.
3. High-efficient and super-strong vibration system, computer-control flow pressure of the hydraulic system, realize vertically synchronous vibration, frequency conversion, and braking, with synthetic output compounded with double vibration sources, thus greatly increase product compactness and mold-box service life.
4. The cloth system adopts semi-closed screen reticular rotational feeding unit to feed materials forcedly, with evenness and even speed, ensuring product intensity.
5. Fitted with special hydraulic loading unit, readily realize mass and automatic production, saving a great deal of human power, maintenance field, and circulating fund investment.
Techincal Parameter Of QT 8-15 Concrete Brick Making Machine:
| Overall Dimension | 87500*2100*3020mm |
| Rated Pressure | 21MPa |
| Main Vibration Form | Platform vibration |
| Cycle Time | 15-25 seconds |
| Vibrating Frequency | 2800 -4500 rolls/minute |
| Motors Power | 41KW |
| Pallet Size | 1020*900*25mm |
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
| Applied Fields | widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Productivity:
| Bricks | Size | QTY/Mould | Cycle Molding | Per Hour | Per Day (10hours) |
|
| Hollow Brick | 400*200*200 | 8 | 15-20s | 1440-1920pcs | 14400-19200pcs |
| Porous Brick | 240*115*90 | 24 | 15-20s | 4320-5760pcs | 43200-57600pcs |
| Standard Brick | 240*115*53 | 52 | 15-17s | 11000-12480pcs | 11000-124800pcs |
| Color Brick | 220x112.5x60 | 28 | 25-30s | 3360-4032pcs | 33600-40320pcs |
Land Area required:
| Workshop | 200m2 |
| Office | 100m2 |
| Total area | About 2000m2 |
Workers Required:
| operation | 1 | Material loader | 1 |
| Drive forklift | 1 | Feeding pallets | 1 |
| Maintain | 1 | Total | 5 |
Main Machinery List of QT 8-15 Concrete Brick Making Machine:
| No | Name | Specification | QTY |
| 1 | 100 Ton Cement Silo | Capacity | 100tons | 1 |
| Diameter Of Tank | 3 m |
| Thickness Of Tank | 5mm |
| Discharge Height | 1.5m |
| Total Height | 15 m |
| 2 | LSY Screw Conveyor φ219×8m | Model No | LSY200 | 1 |
| Diameter (Mm) | 219 mm |
| Wall Thickness(Mm) | 8mm |
| Handling Capacity (M3/H) | 35m3/h |
| Power (Kw) | 7.5 kw |
| 3 | Cement Scale with water scale | Volume Of Weighing Hopper | 0.4m3 | 1 |
| Batching Precision | ±1% |
| Max. Metage Of Powder Material | 500kg |
| Max. Metage Of Water Scale | 180kg |
| 4 | PL1200-III Concrete Batching Machine | Cubage Of Weighing Hopper | 1.2 m³ | 1 |
| Cubage Of Reserve Hopper | 3×4 m³ |
| Productivity | 72 m³/h |
| Max. Metage | 2000 kg |
| Batching Category | 3 |
| Dimension(L×W×H)Mm | 8650×2000×2900 |
| 5 | JS750Twin-shaft Concrerte Mixer | Input Capacity | 800L | 1 |
| Output Capacity | 500L |
| Productivity | ≥25m3/h |
| Max. Raw Diameter Material | 80/60 mm |
| Mixing Vane Rotation Speed | 30.5r/min |
| Mixing Vane Quantity | 2×7 |
| Dimension ((L×W×H)Mm | 3050×2300×2680 |
| Mixer Motor Power | 18.5kW |
| Discharge Height | 1500mm |
| Weight | 4000kg |
| 6 | QT'8-15C Block Making Machine | Block Making Machine | QT8-15C | 1 |
| Hydraulic Unit | QT8-15C | 1 |
| Conveyor Belt | 8m | 1 |
| Pallets Feeder | 1 piece | 1 |
| Block Conveyor | 1 piece | 1 |
| PLC Control Unit | QT8-15C | 1 |
| Spare Parts | QT8-15C | 1 |
| Mould | 6/8pc | 1 |
| 7 | Automatic Blocks Stacker | Weight | 1500KG | 1 |
| Power | 7.5KW |
| Manual Hydraulic Cart | 2000KG |
Features:
1.The machine can serve several purposes and can produce pavement bricks, riverside bricks, revetment bricks ,square bricks ,grassed bricks and so on with different moulds.
2.Low frequency in feeding material, high frequency vibration. Platform vibrating works together with mould, So that the concrete can be fully fluidified and exhausted in two or three seconds to reach the high density.
3.The advanced technique of hydraulic-controlled proportion can handle the oil press and amount of the system freely,therefore ,different materials can be able to produce the high quality products.
4.All the procedures are operated by PLC and equipment with out and in date device to realize person-machine conversation. Control system also including the advanced safe logical system and fault diagnosis system.
