| Price: | US $ 7000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Advantages | 1.Strong tensile strength; 2.Handy operation; 3.Quick link; 4.Connection is different; 5.High efficient; 6.High adaptablity; 7.Environment protection; |
Package | Wooden case; |
Privilege | According your order, we can provide mold as a present; |
Origin | Changzhou City, Jiangsu Province, China |
Other | 1.We can provide FREE SAMPLE(Rebar coupler); 2. If you have any problems, please send messages to me; |
| The Parameter For Standard Coupler (MM) | |||||||||||
| Steel bar Diameter(MM) | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 32 | 36 | 40 |
| Out Dia.of Coupler(MM) | 20 | 22 | 26 | 29 | 32 | 36 | 40 | 44.5 | 50 | 56 | 62 |
| Inner Dia.of Coupler(MM) | 11.9 | 13.9 | 17.4 | 19.4 | 20.9 | 23.9 | 26.3 | 29.3 | 31.8 | 34.8 | 40.3 |
| Length of Coupler(MM) | 30 | 34 | 40 | 44 | 48 | 52 | 60 | 66 | 72 | 80 | 90 |
| Size of Thread(MM) | M14*2 | M16*2 | M20*2.5 | M22*2.5 | M24*3 | M27*3 | M30*3.5 | M33*3.5 | M36*4.0 | M39*4.0 | M45*4.0 |

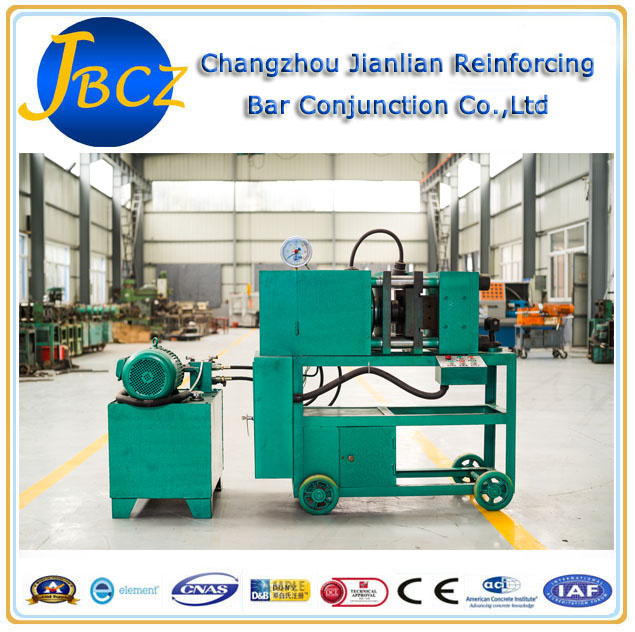

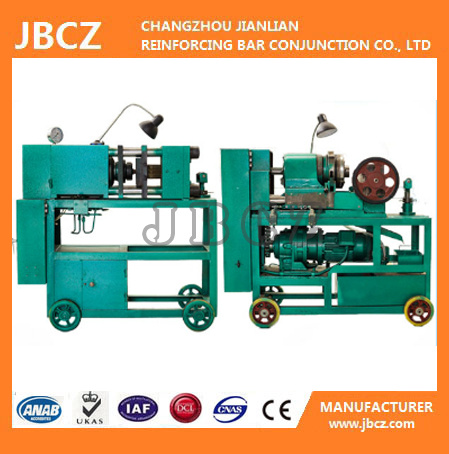

1, Adopts upset forging parallel thread connection technology; |
2, Wide working range: Adaptable for 12mm-40mm same diameter, different diameter, bending, new and old, advance covered up rebar of GB 1499, bs 4449, ASTM a615 or ASTM a706 standard. |
3, High strength: Stronger than the reinforcement bar and guarantees bar break under tensile stress(tensile strength of connection point =1.1 times of connected bar's specified tensile strength). It can satisfy the requirements stipulated in the Chinese standard jgj107-2003, jg171-2005. |
4, High efficiency: Upset forging and threading one joint only needs no more than one minute, and handy operation and quick link. |
5, Environmental protection and economy profit: No envirement pullution, can work all day, not affected by weather, economize energy source and bar material. |
| Parameters of standard rebar couplers: | |||
| Diameter of steel bar(mm) | Outer Diameter of coupler(mm) | Length of coupler (mm) | Dimension of thread(mm) |
| 12 | 22 | 30 | M14x2.0 |
| 14 | 24 | 34 | M16x2.0 |
| 16 | 26 | 40 | M20x2.5 |
| 18 | 29 | 44 | M22x2.5 |
| 20 | 32 | 48 | M24x3.0 |
| 22 | 36 | 52 | M27x3.0 |
| 25 | 40 | 60 | M30x3.5 |
| 28 | 44 | 66 | M33x3.5 |
| 32 | 50 | 72 | M36x4.0 |
| 36 | 56 | 80 | M39x4.0 |
| 40 | 62 | 90 | M45x4.0 |
1. How can I know the quality of JBCZ rebar coupler?
We can send you FREE SAMPLE to do test, or you can send us your rebar, we link it with our rebar coupler, then send back to you, if the test result is bad, we will pay you for the courier charges.
2. Where is your company?
Our company is located between Shanghai and Nanjing China, if you arrive at Shanghai Airport, we are glad to pick up. It will take 2 to 3 hours from the Airport to our company by Car. You are very welcome to visit us!
3. If you have any problems, please send message to me, I will reply you within 1 working day.
| Prod Model: | GZL-45 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: | Gd-150;Gzl-45 |
| Tensile Strength: | 1.08-1.35 Times of Rebar |
| Certificate: | CE and ISO |
| Function: | Process Rebar Dia. From12~40mm |
| Gzl-45: | Patent No. Zl97247900.7 |
| Gd-150: | Patent No. Zl97243207.8 |
| Thread Type: | Parallel Thread |
| Port: | Shanghai Port by Sea |
| Quality: | Wonderful |
| Brand Name: | Jbcz |
| Forging Forming Method: | Mold Forging |
