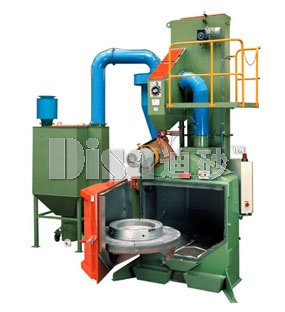

Rotary Table Type Shot Blasting Machine
| Price: |
US $ 30000/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
(Q35) In this type of machine, the pieces are placed on a rotary table where they receive the shot impact.This type blasting machine is for the treatment of sensitive parts, components that only need to be blasted on one side, as well as complex, heavy or large parts that can not be processed in tumble belt blast machines for bulk load or spinner hanger machines. The rotary table type shot blasting machines are designed in different capacities and productions. It also fit for cleaning and intensifying surface of steel structure and castings, as well as removing surface with thick steel and cleaning oxidized surface, apply for foundry industry, forging industry, machinery and steel industry.As an example of specific application of this type of machine, it would be mentioned the continuous shot blast of pans, disc, mold, etc. | No. | Model
Item | Q3512 | QF3512B | Q3525 |
| 1 | Size of blasting chamber | mm | ¢1350*560 | ¢1350*860 | ¢2654*560 |
| 2 | Size of work piece | mm | 600*250*250 | 600*250*250 | 600*500*250 |
| 3 | Turn table | Load capacity | kg | 400 | 400 | 1000 |
| Diameter | mm | 1200 | 1200 | 2500 |
| 4 | Blast wheel | Abrasive flow rate | kg/min | 200 | 2*120 | 2*250 |
| Power | kw | 11 | 7.5*2 | 15*2 |
| 5 | Lifting amount of elevator | t/h | 15 | 15 | 30 |
| 6 | Separating amount of separator | t/h | 15 | 15 | 30 |
| 7 | Abrasive initial filling | kg | 400 | 350 | 1500 |
| 8 | Ventilation capacity | M3/h | 2800 | 2800 | 5200 |
| 9 | Outline dimension | mm | 1500*3450*3780 | 1900*1900*4165 | 4260*3647*5366 |
| 10 | Power (dust collector not included) | kw | 17.3 | 18.7 | 35.2 |
| Prod Model: |
Q35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size As Per Customer's Request: |
Color Can Be Green or Blue or White |
| Application: |
Gas Cylinder Processing |
| Certification: |
ISO9001 |
Disa as shot blasting machine international leading supplier in China, has been established for 20 years, Disa known production shot blasting machine, since it sold in 1992 in China, the first such shot blasting machine, in just 20 years has developed rapidly, as of 2011 years on sale to the world more than 200 articles, good to use.
Disa offers you system solutions from a single source - beginning with a project idea to consulting, profitability analysis and individual engineering to a turnkey plant. With 17 years of collective experience, we have rebuilt over 1500 kinds of shot blasting machines. Through the years we expanded our engineering and manufacturing capabilities so that today we are able to take on design problems involving castings, forgings, stampings, steel mill products, fabricating, etc.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
