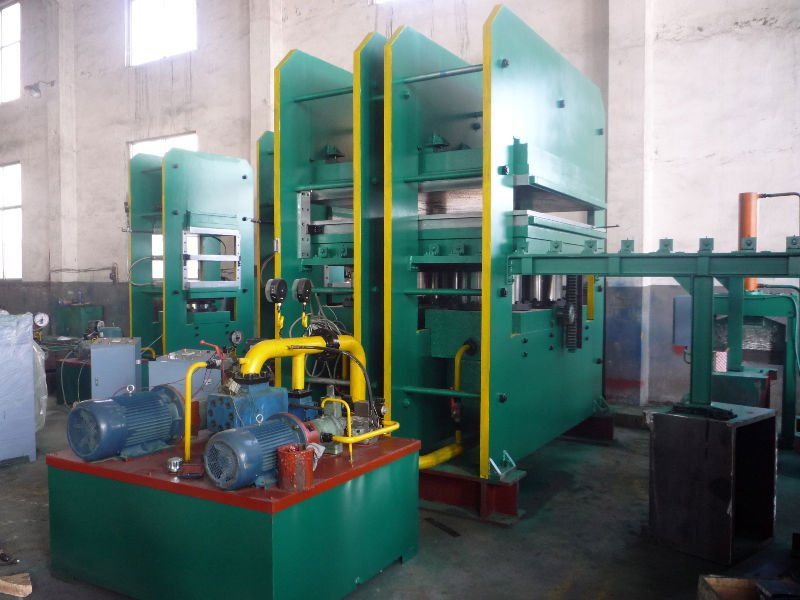

1. Rubber platen vulcanize machine
2. It is used for vulcanizing all kinds of rubber and plastic mould products, and non-mould products.
3. It is used for vulcanizing all kinds of rubber and plastic mould products, and non-mould products.
4. Frame type, rubber platen vulcanize machine is different from the column type, it is allowed to install larger diameter hydraulic cylinder, reducing the quantity of cylinders, with simple structure, and little maintain wok. The frame can bear more stress and it has cheap price, nice surface, easy to operate.
|
Model XLB-D |
600*600*1 |
600*600*2 |
800*800*1 |
|
Plate Size(mm) |
600*600 |
600*600 |
800*800 |
|
Working Layer |
1 |
2 |
1 |
|
Total Pressure(MN) |
1.00 |
1.00 |
1.00 |
|
Plunger Stroke(mm) |
250 |
250 |
300 |
|
Layer Distance(mm) |
250 |
125 |
300 |
|
Plate Unit Pressure(Mpa) |
2.8 |
2.8 |
1.6 |
|
Plunger Diameter(mm) |
300 |
300 |
300 |
|
Total Heating Power(KW) |
7.2 |
10.8 |
|
|
Heating Type |
Electricity |
Electricity |
Electricity |
|
Max.Temperature |
200°C |
200°C |
200°C |
|
Configuration Type |
Pillar |
Pillar |
Frame |
|
Motor Power |
2.2KW,960r/min |
2.2KW,960r/min |
2.2KW, 940r/min |
|
Pressure of Working Fluid(Mpa) |
14.2 |
14.1 |
14.1 |
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
