Rubber Mat Manufacturing Machine, Rubber Tile Press Machine
| Price: |
US $ 3500/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
THE DETAILED PARAMETER:

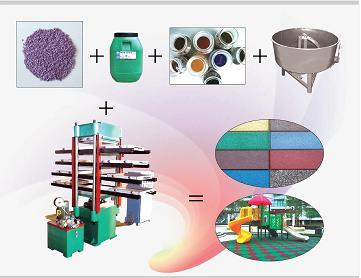

1, we usually design as clients' products and details request. Our machine is 4 working layers, 1 hour can made 8 pcs rubber floor. We can also according your needs. And decide the working layers.
2. The machine is matched with manual push-out device.
3, we also can provide the different size of the molds, from 20mm to 75mm thickness.
4, rubber mixer can also provided, if needed.
5, The press with 12 pcs molds and rubber mixer is only 8m3 of the flooring area, it can be LCL for loading, So the sea freight is very cheap.
6. We also can according to the customers' requirement, and design the non-standard type of rubber tile vulcanizing machine
Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
|
Type |
XLB-D550×550×4 |
XLB-D680*810*3 |
|
Total pressure (MN) |
0.50 |
1.00 |
|
Plate size (mm) |
550×550×45(Q235) |
680*810*60 |
|
Plate clearance (mm) |
150 |
150 |
|
Working layer nuber |
4 |
3 |
|
Piston stroke (mm) |
400 |
400 |
|
Motor power (kw) |
3.0 |
3.0 |
|
Overall dimension (mm) |
2200×900×2200 |
|
|
Weight (kg) |
3600 |
4500 |
| Prod Model: |
XLB-DQ550x550x4/0.50MN, XLB-DQ810x810x2/1.00MN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sales Market: |
20 More Than Countries |
| Warranty: |
1 Year |
| Control Way: |
Manual, Automatic System |
| Structure Mode: |
Four Column, Frame, Jaw Type |
| Heating Mode: |
Electrical, Oil |
| Floor Area: |
200 Sq.M |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Certification: |
CE, ISO |
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
