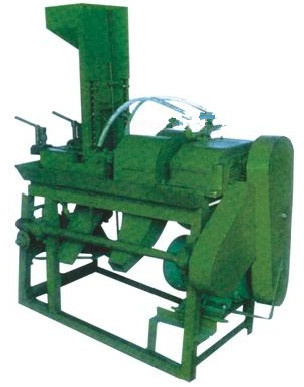

I Description of the machine
This machine is making various screws and rivets, is suitable for batch production of screws and rivets.
II Main technical data
| Machine code | Z12-10 | Z10-12 | Z12-16 | Z12-20 | Z12-24 |
| Suitable screw diameter | 8-10mm | 8-10mm | 12-16mm | 16-20mm | 20-24mm |
| Suitable screw length | 20-160mm | 30-200mm | 25-200mm | 45-200mm | 50-200mm |
| Producing speed | About 60pcs/min | About 50pcs/min | About 45pcs/min | About 40pcs/min | About 30pcs/min |
| Slide stroke | 210mm | 280mm | 260mm | 290mm | 290mm |
| Total power | 11kW | 18.5kW | 28kW | 37 kW | 50 kW |
| Machine dimension | 3520 x 1900 x 1700mm | 5900 x 2350 x 1750mm | 4600 x 2500 x 1950mm | 5300 x 2800 x 2000mm | 5500 x 2850 x2200mm |
| Weight of machine | 6500kg | 13000kg | 18000kg | 21000kg | 26000kg |
|
|
|
|
|
|
Our company is an manufacturer and export agent, specialized in cold roll forming machines, metal processing machines, tube machines, pipe machines, transformer making machines, fin making machines, wire bending machines, motor making machines, tank making machines, welding machines, etc. We are supply our customers worldwide with our good qualities, competitve prices and satisfied after-sale services.
