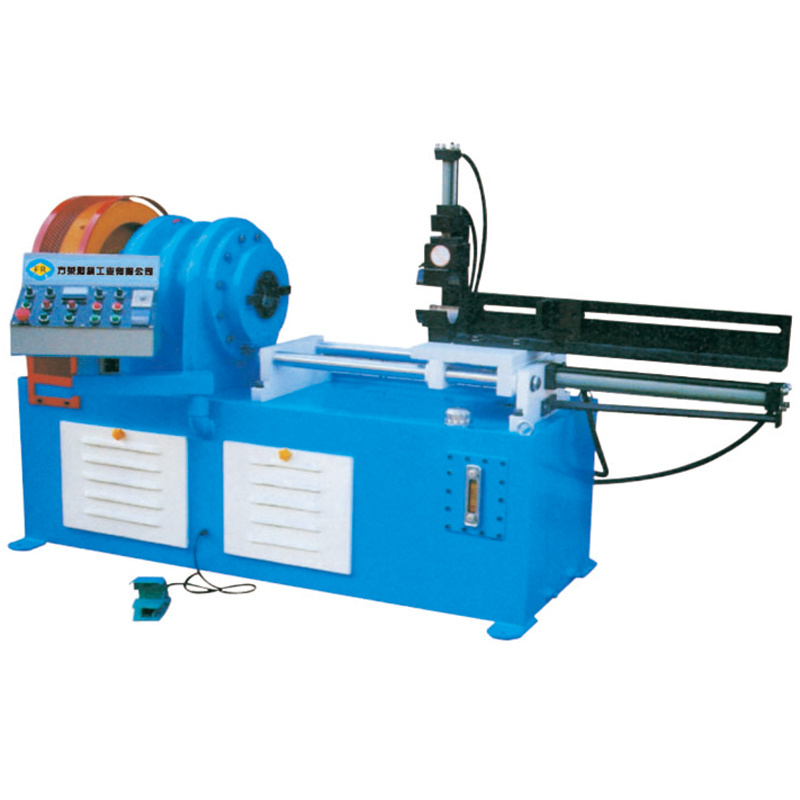

Semi-Auto Conical Pipe Tapering Machine (FR-38*300)
Semi-Auto Conical Pipe Tapering Machine is a special forming equipment for different sloping design pattern on metal pipe and tube, into a variety of sloping shape. Changing shape by the mould on the pipe and tube.
With easy installation and simple operation,this machines also has the capacity to contain variety of sloping design on shrinking dies upon requests.
The application of this machine is widely used on making semi-finished products and consumer goods,such as furniture parts,lighting parts,bicycle racks,hardware and automative parts.
Advantage of Semi-Auto Conical Pipe Tapering Machine
1.Practical value,low noise
2.Stable,precison,innovation
3.Taiwan technique,easy operation
4.High speed and quality
Technical parameter of Semi-Auto Conical Pipe Tapering Machine
| 1 | Manner of tapering | one piece one head, turn to other head to cone |
| 2 | Maximum diameter | Tubes 38mm |
| 3 | Thickness | 0.8-2.0mm |
| 4 | Die length | 300mm |
| 5 | Die number | 4 pcs |
| 6 | Speed | 20s/pcs |
| 7 | Motor power | 4kw |
| 9 | Weight(reference) | 1300kg |
| 10 | Dimension(L*W*H) | 2700mm*900mm*1500mm |
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
