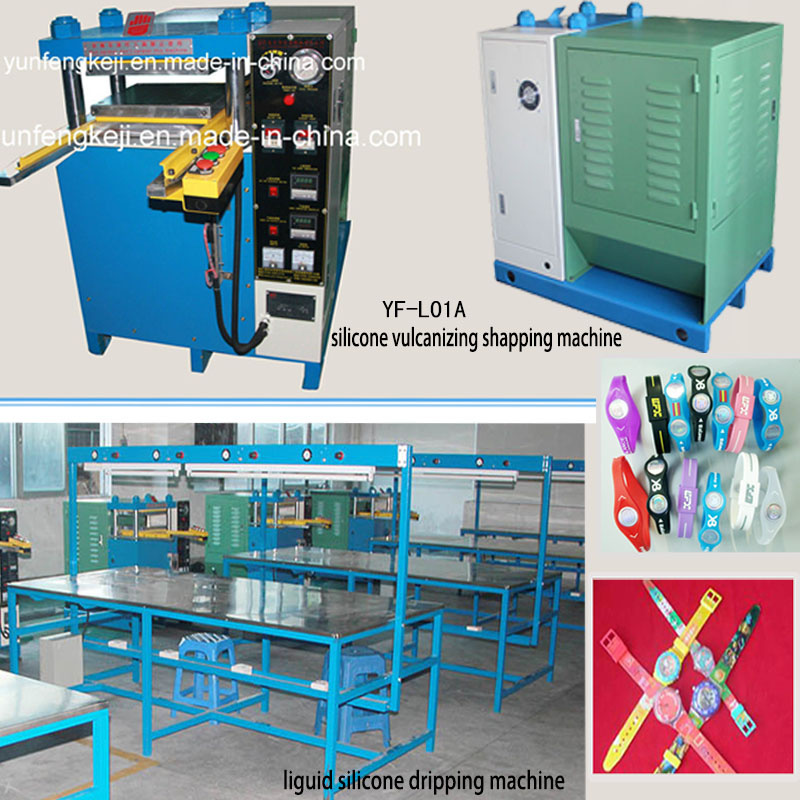

solid silicone babel making machine
Equipment application:
It is mainly mould pressing molding environmental protection silicone label for shoes, hat, garment, bags .also for environmental protection plastic crafts and daily use silicone products.
The product's material is environmental, with stereo feeling, fell comfortable, non toxic, no pollution, high &low temperature resistance, wear resistance and not easy to be old. Is the first choice for many topper brand label.
model
| YF-L01A |
| External dimension(mm) | L1450*W780*H1130 |
| Power(KW) | 8 |
| Heating board dimension(mm) | 350*330 |
| Clamping force(T) | 35 |
| Clamping force itinerary(mm) | 100 |
| Temperature control(ºC) | 0-399 |
| timer(s) | 1-999 |
| Voltage (V-AH) | 380-60 |
| Counter (pcs) | 1-999 |
| Weight(kg) | 1000 |
configuration and performance :
1.The surface of the whole machine adopts spraying technology processing, frame adopts CNC computer gong water mill flat surface to finish machining, four-post structure of formation, Ensure full level machine during operation, reduce defective products, improve production efficiency; Operation process can be divided into automatic and manual go up/down.
2.Accessories adopt Taiwan YEESEN hydraulic system, Taiwan's SHINI heating pipe, Taiwan FOTEK timer, Taiwan SHIHLIN contactor, the Great Wall national standard hydraulic oil, Japan OMRON intelligent thermostat, with the function of fast or slow speed raising and clamping, efficiently prolong the mould life .ultra low noise ,the motor smart start and stop, saving energy
3. Push mold mesa use 45# carbon steel heat treatment, two sides finish machining by water mill, the rail running adopts rolling bearing ,up and down heating board surface machining by water mill, then heat treatment, board surface treatment by electroplate hard chrome, to guarantee hard and won't rust.
4.Multicolor liquid silicone pressing molding with solid silicone, heating fast and vulcanized well, technology is leading in the same industry level, offer the raw material and product technical support.
liquid pvc silicone multi color dripping dispensing machine
Automatic liquid pvc silicone multi color dripping machine is used for PVC and silicone daily use product, any kinds of pvc or silicone craft. such as phone cover,key chain, frige magnet ,usb cover,power ring,wrist band,watch band.zipper puller shoes upper ,shoes sole car foot mat ,table mat .and for garment ,bags ,socks,gloves hats, label or accessories etc.,
model:YF-G02
Power:6 kw
Exterior size:2400mm*1200mm*1500mm
structure and configuration:
digital vision temperature control systerm,0-400 ºC can be adjusted.the table surface is made by stainless material.equip 8 foot switch control the dripping machine.
note:
We can according to different industry and different needs of customers to make the best quality equipment program.
