Silicone rubber for medical pipe catalyzed by platinum in extruding mould
Basic model: SSR2026AE/BE, SSR2028AE/BE, SSR2026-50A/B.
Product Description
2-part high strength solid silicone rubber, catalyzed by platinum.
Key Feature
Good transparence
High tensile strength and tear strength
None post cure
Rapid vulcanization
Excellent thermal stability
Excellent weather resistance
Low yellowing
Application

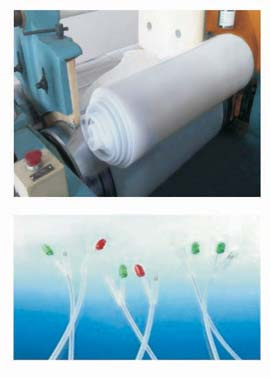

Soft transparent pipe in extrusion or compression molding process
Packaging
SQUARE® SSR2026AE/BE and SSR2028AE/BE are available in 20kgs cartons.
Typical properties
Remarks:
The product should be closed tightly, protected from light and moisture, the shlf life is 24 mont
These figures are for reference only, Please contact us for detail
SSR2026-50A/B is specially for extrusion molding
|
properties |
Test method |
Unit |
SSR2026AE/BE |
SSR202AE/BE |
SSR2026-50A/B |
|
Appearance |
|
|
transparent |
transparent |
transparent |
|
Specific Gravity |
D792 |
|
1.18 |
1.22 |
1.18 |
|
Shore A hardness |
D2204 |
°A |
60 |
75 |
50 |
|
Tensile strength |
D412 |
Mpa |
9.0 |
8.5 |
11.06 |
|
Tear strength |
D624B |
KN/M |
35.0 |
28.0 |
34.30 |
|
Elongation at break |
D412 |
% |
600 |
360 |
781 |
|
Cure condition |
150ºC
X5mins,2mmx150mmx150mm sheet |
