Silicone rubber for medical pipe in extruding mould
Consisting of the silicone rubber for medical pipe catalyzed by peroxidet in extruding mould and the silicone rubber for medical pipe catalyzed by platinum in extruding mould
Silicone rubber for medical pipe catalyzed by peroxidet in extruding mould:
SSR2018-40, SSR2018-50 SSR2018-60 SSR2018-70.
Product Description
SQUARE® SSR2018-XX is high transparence and high tear strength solid silicone rubber, suitable for extrusion or compression molding processes.
Key Features
High transparence
High tensile strength and high tear strength
Good rebound property
Excellent thermal and cold stability(-60ºC~250ºC)
Low yellowing
Outstanding resistance to ageing
Comply with US FDA CFR 21. Part. 177.2600 and EN1616 and RoHS standard. And Meet ISO10993 biological reactivity test,
Application

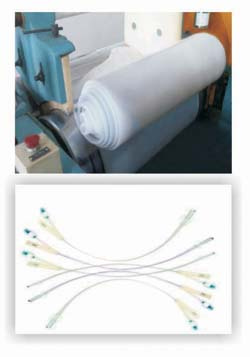

SQUARE® SSR2018-XX is suitable for making medical pipe etc.
Packaging
SQUARE® SSR2018-XX is available in 20kgs cartons
Typical Properties
Remarks:
The product should be closed tightly, protected from light and moisture, the shlf life is 24 mont
These figures are for reference only, Please contact us for detail.
|
properties |
Test method |
Unit |
SSR2018-40 |
SSR2018-50 |
SSR2018-60 |
SSR2018-70 |
|
Appearance |
|
|
transparent |
transparent |
transparent |
transparent |
|
Plasticity |
|
10 -5 m |
180 |
210 |
240 |
260 |
|
Specific Gravity |
D792 |
|
1.08 |
1.10 |
1.16 |
1.18 |
|
Shore A hardness |
D2204 |
°A |
40 |
50 |
60.00 |
70.00 |
|
Tensile strength |
D412 |
Mpa |
7.0 |
8.0 |
8.00 |
7.00 |
|
Tear strength |
D624B |
KN/M |
35.0 |
35.0 |
45.00 |
45.00 |
|
Elongation at break |
D412 |
% |
600 |
500 |
500.00 |
400.00 |
|
Compression set |
DIN53517 22hours@175 ºC
|
% |
22.0 |
24.0 |
25.00 |
26.00 |
|
Linear shrinkage |
JISK6301 |
% |
3.0 |
3.0 |
3.00 |
3.00 |
|
Cure condition |
170X10min |
