Zhejiang Shuangli Plastic Machinery Co., Ltd.
Main products: Automatic plastic blow molding machine, blowing machine, bottle blowing machine and other related products.
Currently producing sales rotary automatic blow molding machine and reciprocating automatic blow molding
Machine is mainly used for the production of 5ml-10L polyethylene, polypropylene as the original the material of all kinds of plastic hollow containers, is currently one of the few professional manufacturer of blow molding machinery vendors.

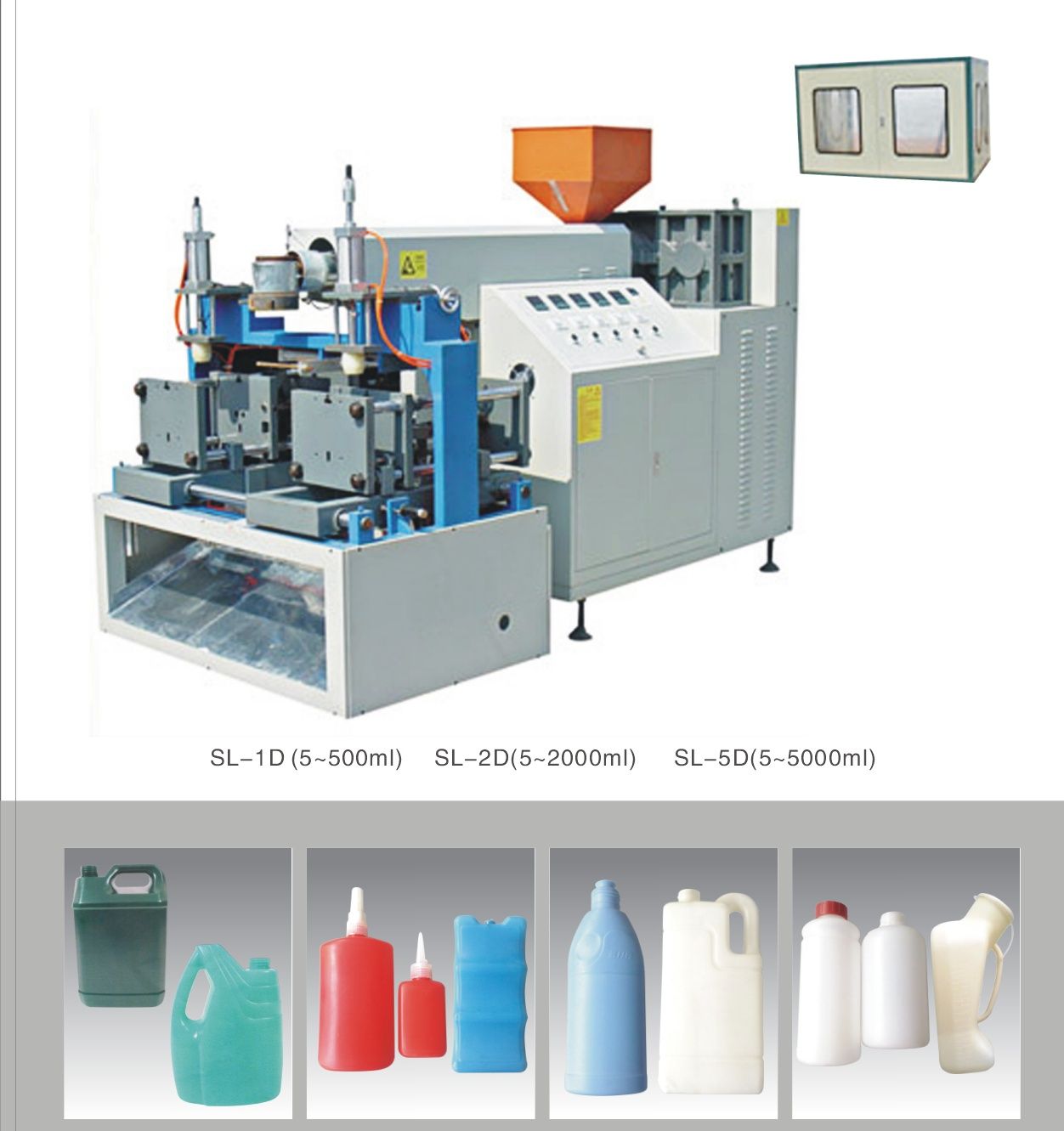

SL-1D SL-2D SL-5D SL-1DL SL-2DL SL-5DL Hydro-pneumatic Small and Medium Size Blow Molding Machine
Simple, practical, compact structure
Low energy consumption
The price is 1/5 advantages of similar products in small blow ideal enterprise product.
Power supply is 220V
PLC + man-machine interface(touch screen) computer control system,
Extrusion parts uses hardened reducer
Frequency control
Temperature control
Running smooth and stable
Easy operation
|
Specification |
Units |
SL-1D |
SL-2D |
SL-5D |
|
Applied Materials |
|
PE,PP,PVC,EVA |
PE,PP,PVC,EVA |
PE,PP,PVC,EVA |
|
Max Container Capacity |
L |
0.5 |
3 |
5 |
|
Number of Die |
Set |
1.2 |
1.2 |
1 |
|
Output (drycycle) |
pc/hr |
1500 |
1000 |
800 |
|
Machine Dimension LxWxH |
M |
3x1.2x1.8 |
3.2x1.4x1.8 |
3.8x1.7x2 |
|
Total Weight |
ton |
1 |
1.4 |
1.7 |
|
Clamping Force |
KN |
1.5 |
3 |
6 |
|
Platen Opening Stroke |
mm |
70-140 |
80-170 |
90-200 |
|
Platen Size |
mm |
200x300 |
280x360 |
320x420 |
|
Mould Thickness |
mm |
70-140 |
80-170 |
90-200 |
|
Max Drive |
KW |
6 |
7 |
12 |
|
Total Power |
KW |
8 |
10 |
16 |
|
Fan Power for Screw |
KW |
0.14x3 |
0.14x3 |
0.14x3 |
|
Air Pressure |
Mpa |
0.4 |
0.5 |
0.6 |
|
Air Consumption |
m ³/min |
0.3 |
0.4 |
0.5 |
|
Average Energy Consumption |
KW |
3.5 |
6 |
8 |
|
Screw Diameter |
mm |
45 |
65 |
75 |
|
Screw L/D Ratio |
L/D |
25 |
25 |
25 |
|
Plasticising Capacity |
kg/hr |
25 |
40 |
50 |
|
Number of Heating Zone |
Zone |
4 |
5 |
7 |
|
Extruder Heating Power |
KW |
6 |
7.5 |
10 |
|
Extruder Driving Power |
KW |
5.5 |
7.5 |
11 |
|
Max Die Pin Diameter |
mm |
50 |
75 |
130 |
|
Center Distance of Double Die |
mm |
100 |
120 |
140 |
|
Center Distance of Tetra-Die |
mm |
50 |
60 |
70 |
Our company supply different kinds of products, with high quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
