| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |

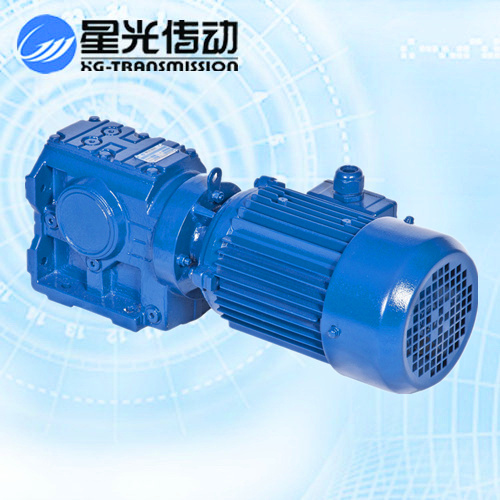

1.Products Spec.:
1. Helical Geared Motors have the advantange of wide scope of application,multiple modular combination and precision reduction ratios.
2.CAE optimal design to the body of the product,unique noise redution design to the gear and various equipment
3.High Efficiency,low noise,excellent heat-loss.
4.Duplex speed reducer is available,diversified mounting structure for choice,such as AD,AM,shrink dish,splined hole and B14 flange.
5. Products are widely used in ceramic, glass, food, metallurgy, beer & drink, printing and dyeing, textile, petrochemical engineering, warehouse logistics, wood-working machine, environmental protection equipment, printing and packaging, pharmacy, and leather.
2.Technical parameters:
| Housing (mono-block) | HT250 (cast iron) |
| Gear Pair | 20CrMnTi |
| Input/Output shaft material | 40CrMo Alloy steel |
| Motor shaft | 40Cr |
| Housing Hardness | HBS90-240 |
| Finish | Caburizing & Quenching |
| Design | Modularly designed , easy for exchangement with SEW product |
| Lubrication | VG220 |
| Bearing Brands | HRE,CU,NSK, SKF, etc |
| Oil Seal Brands | NAK,TTO,or others designated by customers |
| Model(7) | S37\S47\S57\S67\S77\S87\S97 |
| Ratio | 6.8-288 |
| Input Power | 0.12-22kW |
| Output Torque | 11-4530N.m |
| Output Speed | 4.86-206 RPM |
| Gear Accuracy | 6 to 4 Grade |
| Gear Surface hardness | HRC58°-62° |
| Input/Output shaft hardness | HRC25°-30° |
| Noise(Max) | 60-68dB |
| Tem.rise(Max) | 40°C |
| Tem.rise(Oil Max) | 50°C |
| Vibration | ≤20um |
| Backlash | ≤20Arcmin |
| Effeciency | Single stage 98%, Double-stage:96%, Three-stage:94% |
| Mounting Position | Foot / Flange Mounting |
| Motor | IP55 |
| Certification | CE, ISO |

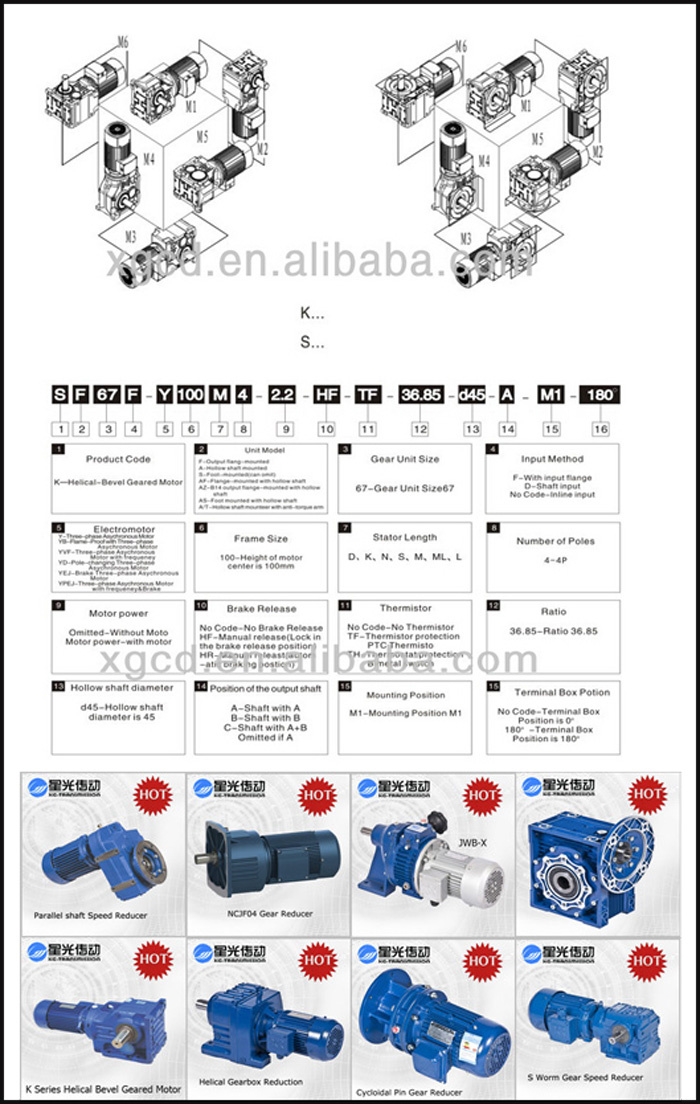

3.Model Description:
4.Applications:
Foshan XG Transmission Gearbox reducer are widely used in ceramic, glass, food, metallurgy, beer & drink, printing and dyeing, textile, petrochemical engineering, warehouse logistics, wood-working machine, environmental protection equipment, printing and packaging, pharmacy, and leather.
5.Why US?
1.Our Company: The Foshan XG-TRANSMISSION Machinery Co., Ltd is State-owned Xingguanggong Mold Factory, a state-owned military industrial enterprise established in 1965. It completed reform in 2002.
2.Our People: The company has a strong technical force. It has more than 400 employees at present, including more than 40 engineering technicians and 10 experts and senior engineers enjoying special allowances of the State Council.
3. Certificates:Passed " ISO 9001 International Quality System Certificate", "International Quality Credit AAA++ Ceritifacte" , " Swiss SGS Certificate", Iconic Brand in Chinese Electromechanical Industry", "Famous Brand of Guangdong Province", "Non-public Scientific and Technological Enterprise in Guangdong Province", "National High and New-tech Enterprise", "TOP 50 in Chinese Gear Industry"
"2011 Foshan Engineering and Technological R&D Center" and so on.

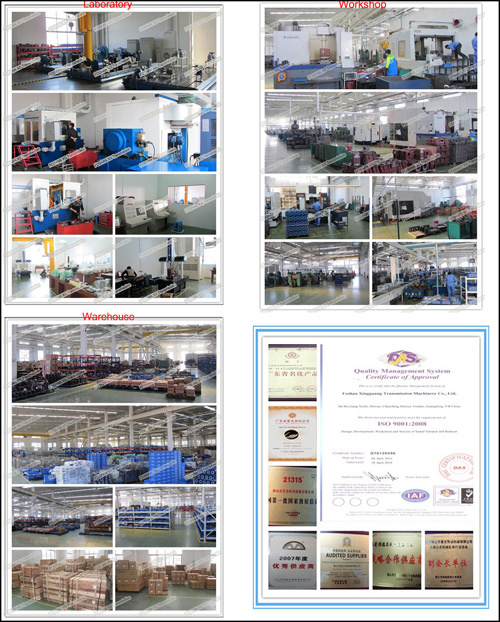

6.Our Factory Views:
| Prod Model: | S series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Keywords: | Worm Gear Reducer |
| Mounted Type: | Flange Mounted,Shaft Mounted,Foot Mounted |
| Based No.: | S37-187 |
| Manufacturing Method: | Cast Gear |
| Toothed Portion Shape: | Helical Gear |
| Type: | Helical Gear |
Since our establishment, we have been striving to develop new products to meet the market demands. Our main products include JWB-X series of Planetary cone-disk variators, RV series of worm gear reducers, B/JXJ series of cycloid pinwheel gear drives, CJ series of gear reducers, S series of helical-worm gear reducers, K series of helical bevel gear reducers, F series of parallel shaft helical gear reducers and R series of helical gear reducers. These products are widely used in ceramics, glass production, food processing, beverage packing and production, environmental protection, metallurgy, wood machinery and textile industries.
We have more than 200 sets of equipment for processing and detection, including several advanced equipment imported from Japan, Germany and South Korea. Thus, we have an annual production capacity of 200, 000 sets.
Our products are widely distributed in Europe, America, Taiwan, Southeast Asia, the Middle East and other areas. To begin sourcing, contact us today.
