SmCo Pot magnet/Cobalt magnet
General Description

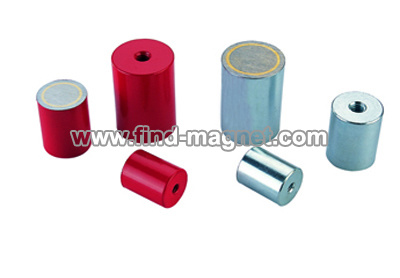

1. Samarium Cobalt Pot magnets feature a cylindrical permanent magnet housed in steel "pot" or case.
2. The north and south poles are on the same plane. Because the gap between the poles is narrow, they have a shallow flux field, which makes these cylindrical type magnets most suited for gripping applications on smooth, thin surfaces
3. The SmCo pot magnets are each supplied with a threaded hole to increase their flexibility in use. Their magnetic force is very high as compared to ferrite magnets
4. Holding area is high resistant to corrosion and require no special surface treatment, which makes them able to work under high temperature environments
5. SmCo pot magnetic assemblies are completely resistant to demagnetizing fields and maintain their holding force indefinitely. Even the effect of strong magnetic opposing fields resulting from spot welding and hard mechanical impacts does not weaken the magnetic holding force...
Applications:
The Samarium Cobalt pot magnets have following applications:
1. Welding moulds of spot-welding machines
2. In very small tools
3. In various gripping operations
For more detail info, please feel free to visit our website or inquire us at any of your convenience
We also supply hard magnets and magnetic materials from China. Our magnets include ferrite magnets, flexible magnets, NdFeB magnets, AlNiCo magnets, SmCo magnets, rubber magnets, refrigerator fridge magnets, magnetic powder, magnetic compound meters & magnetizers, and magnetic jewelry. We also supply ferrite cores, MnZn cores and NiZn cores for transformers and coils, loudspeaker magnets, motor magnets, and refrigerator gasket stripes. .
| Item Code | Dimensions (mm) | Pull(N) |
| D | L | H |
| SCM02-01 | 6 | 10 | 2 | 2 |
| SCM02-02 | 8 | 12 | 3 | 3 |
| SCM02-03 | 10 | 16 | 6 | 8.5 |
| SCM02-04 | 13 | 18 | 7 | 12 |
| SCM02-05 | 16 | 20 | 5 | 20 |
| SCM02-06 | 20 | 25 | 6 | 45 |
| SCM02-07 | 25 | 30 | 5 | 100 |
| SCM02-08 | 32 | 35 | 3 | 190 |
| SCM02-09 | 40 | 45 | 5 | 200 |
| SCM02-10 | 50 | 50 | 2 | 420 |
