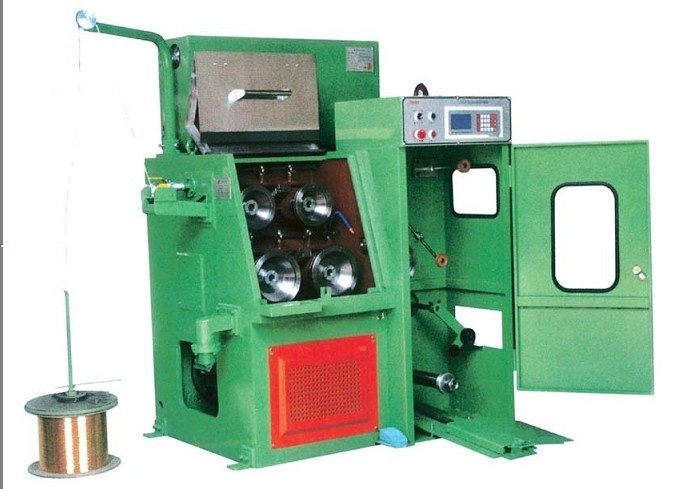

Model No.: Snf-24dn copper wire drawing machine with continuous annealing
No. Technical parameter
1. Control system computer digital control or LCD control
2. Inverter control dual inverter control
3. Wire finished dia. φ 0.07-0.25mm
4. Wire inlet dia. φ 0.50-1.00mm
5. Max. Drawing speed 2000m/min
6. Max. Drawing dies 24PCS
7. Mechanical draft ratio 13%
8. Speed capstan draft ratio 8%
9. Final draft ratio 0%-2%
10. Cabinet ironed cast
11. Capstan ceramic plasma capstan
12. Max. Capstan dia. φ 242.5mm
13. Speed capstan dia. φ 199mm
14. Bobbin size 380mm
15. Bobbin loading&unloading type shaft type
16. Tranversing unit 110W synchronize motor type
17. Main motor 11kw(15HP)
18. Spooler motor 3.7kw(5HP)
19. Transmission type flat belt
20. Correction system synchronous control spooler
21. Detecting device weight balance by swing arm
22. Tension control weight balance type
23. Lubrication type spray type
24. Brake type magnetic brake
25. Bearing lubrication type without oil
26. Max. Loading capacity 50kg
27. Annealing output current 9KVA
28. Anneling control 4 pole DC current output
29. Power source 380V 50/60Hz
30. Lubrication capacity 40 liter/min
31. Equipment dimension l4, 000xw1, 550xh1, 900mm
32. Machine weight 3, 500kg
1. Intermediate copper wire drawing machine
2. Copper wire drawing machine
3. Cable machinery
4. Cable production line
5. Cable manufacturing equipment
6. Fully automatic control
7. Dual inverter control
Anhui Hengzheng Technology Limited is located in the east of Hefei City. We are a new high-tech enterprise. As a member of International Wire & Machinery Association, we specialize in super thin metal alloy silk equipment and copper thin silk equipment. As a leading enterprise, our company lies on technique from Chinese Science & Technology University, undertaking "Torch Plan". We have been awarded as "Chinese Quality Service Prestige AAA Class Enterprise" and "National Enterprise Management Innovation Demonstration Unit".
Adhering to principle of "holding together and down-to-earth, carving out and winning our ways", we insist on quality first, customers first and credit first. Besides, we have attained ISO9001: 2000 certification. Our products comply with "Three Warranties" policy. We help to fix equipment and offer technical trainings for free.
