Stee wire drawing machine
Turn over type water tank with 4 groups;
High carbon and stainless steel wire;
Easy operation

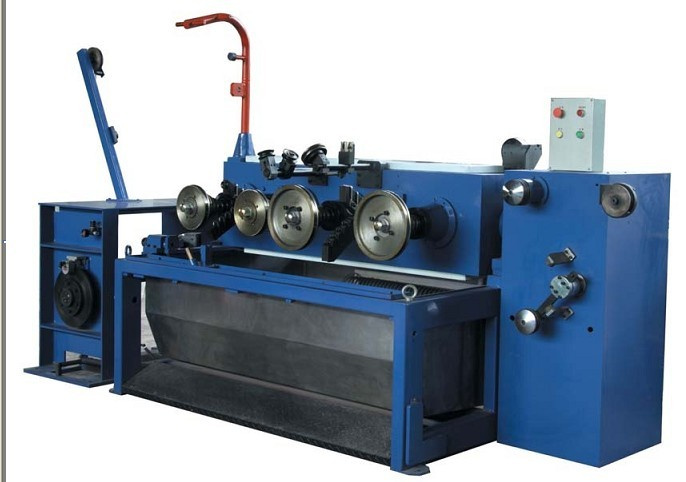

Model No.: LT160-23-320B Wet Wire Drawing Machine
No. Technical Parameter
1 Model Type Turn over type water tank with 4 groups of step pulley(with truction cooling system)
2 Drawing Material High-carbon steel wire, Stainless steel wire
3 Drawing Times 21
4 Max. Speed 20m/s
5 Input Wire Diameter 0.8mm-1.9mm
6 Finished Wire Diameter 0.15mm-0.30mm
7 Average Reduction Per Draft 14.50%
8 Input Wire Tensible Strength 1, 350Mpa
9 Output Wire Tensible Strength 3, 200Mpa
10 Capstan Surface Status Spray tungsten carbide
11 Capstan Surface Hardness HRC62-64
12 Lubrication Cooling Type Circulation cooling
13 Driving Motor Power 30KW
14 Mode of Adjusting Speed AC Frequency conversion, stepless speed changing
15 Electrical Control Type PLC programme controlling, Multifunctional automatic protection
16 Turn Over Type Manual
17 Wire Arrangement Type Pneumatic
18 Take-up Capstan φ 305 spool
19 Take-up Motor Power 5.5KW
20 Noise ≤ 85dB
21 Volume of Cooling Tank 750L
22 Unit Dimension 1, 950x1, 600x1, 910mm
23 Weight 2, 300kg
Anhui Hengzheng Technology Limited is located in the east of Hefei City. We are a new high-tech enterprise. As a member of International Wire & Machinery Association, we specialize in super thin metal alloy silk equipment and copper thin silk equipment. As a leading enterprise, our company lies on technique from Chinese Science & Technology University, undertaking "Torch Plan". We have been awarded as "Chinese Quality Service Prestige AAA Class Enterprise" and "National Enterprise Management Innovation Demonstration Unit".
Adhering to principle of "holding together and down-to-earth, carving out and winning our ways", we insist on quality first, customers first and credit first. Besides, we have attained ISO9001: 2000 certification. Our products comply with "Three Warranties" policy. We help to fix equipment and offer technical trainings for free.
