Technical index:

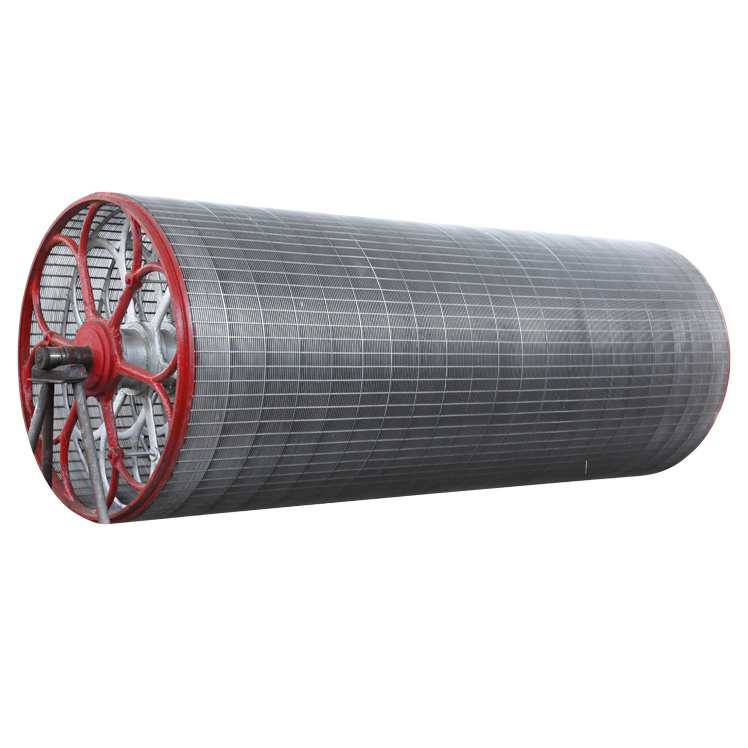

Different usage type: Paper making cylinder mould, concentrate cylinder mould.
Different structure type: Common, air exhause, vacuum.
Different material type: Stainless steel
Specification: Dia1000\Dia1250\Dia1500\Dia1800\Dia2000
Working face range: 1000-5000mm
Main character: Improve water filter area and speed, increase the capacity.
1/Diameter 1500mm
2/Face length 2000mm
3/Diameter of SS stick 12mm
4/Qty of SS stick 80
5/Qty of middle supportchip 14 PCS
6/Thickness of SS strip 15mm
7/Diameter of axis 180mm
8/Bearing model 113624
9/Stainless steel winding scrip δ = 1.5 × 25mm
10/Outer arm of wheel made by cast iron
11/Inner arm of wheel made by cast iron
12/Pull rod Q235A 3sets
13/Axle: It is made byΦ 180mm seamless steel pipe. Wall thickness is 14mm. The material of spindle nose is carbon steel., thermal refining.
14/Technical requirement: Surface polishing, winding scrip chamfering, knurl treatment, straightness of oversheet≤ 0.025mm/m, static equilibrium.
17/Dimension: 1.6mx1.6mx2.4m
18/weight: 1ton per setpacking and shipping
packaging: products will packaged according to their shapes, weight, transport distance and transport
modes. large machines will be packaged in sections. every part of export machinery will be in standard export package-seaworthy wooden case, waterproof film, straw rope, carton box etc., which willensure the intactness of products.
transportation: products will be transported according to their features and clients's needs. air, train andsea transportation are all available.
Perfect service :
1.we can supply technical consulting and feasibility report according to client's current condition ;
2. We can make detail design of workshop and whole factory ;
3.we supply complete installation and test machine ;
4.we train client's engineer and worker for free ;
5.we supply spare part with best price
company information :
Zhengzhou guangmao machinery manufacturing Co.,Ltd ,located in Zhengzhou city ,china ,is a leading professional paper making machine manufacturer in china, which specializes in pulp making machine ,paper making machine and paper processing machine manufacturing .
1.Following is main introduction of our company :
(1) total area of factory : 20,000m2 ;
(2) total qty of workshop : 4 ;
(3) workers : 110 workers ;
(4)engineer qty : 25 engineers ;
2.Why you choose us ?
(1) professional engineer team with 30years experience ;
(2) we can supply you turn -key solution without any trouble ;
(3) we have strict quality control system and ensure there is no unqualifiedly product ;
(4) professional installation technician and clear technical training for your workers ;
(5) strict recalling system : if any problem of machine ,we will recall it and change a new one for free ;
Remarks :
1.please check and clear all necessary technical data ,then we can make exact quotation
for you ;
2.payment term : T/T , L/C ;
3.Delivery time :within 40 days after first payment ;
4.we can make special design according to client's requirement and need ;
5.we can accept turn-key project ;
6.we can accept OEM ;
If you interest our product ,please send us a inquiry for having a better understanding about paper-making
Zhengzhou guang mao machinery manufacturing Co., Ltd. is located in zhengzhou city, China. We are a leading and professional paper machine manufacturer in China.
We specialize in the manufacture of paper machines, paper processing machines and paper machine parts.
Our company has perfect service system. We have experienced engineer teams, who can supply perfect service during the whole deal, including technology consultation, civil work design, project evaluation; Installation and testing the whole production line; Training engineers and workers; Meanwhile, we also supply spare parts for long time and manufacture machines in accordance with customers' special requirements.
1. Following is main introduction of our company:
(1) total area of factory: 20, 000m2;
(2) total qty of workshop: 4;
(3) workers: 110 workers;
(4)engineer qty: 25 engineers;
2. Why you choose us?
(1) professional engineer team with 30years experience;
(2) we can supply you turn -key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualifiedly product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: If any problem of machine, we will recall it and change a new one for free;
3. About shipment:
1. Sea transportation and rail way transportation is our main shipment way.
2 the delivery time is decided by your the machine model, we can also adjust delivery time according to your special requirement;
We hope to establish friendship and business relationship with friends from all over the world.
