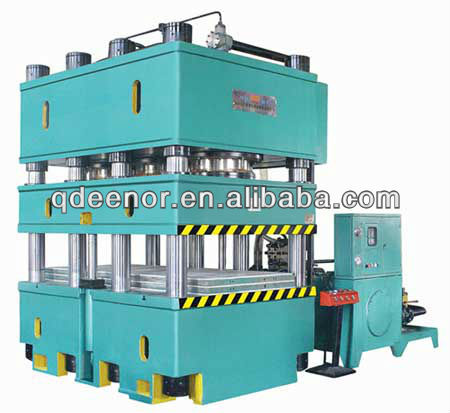

Steel door hydraulic machine/automatic hydraulic press machine:
1-press various size of steel door, by molds.
2-auto PLC system
We also can according to customers' requirement, and design the non-standard model of door hydraulic press machine.
|
Number |
Item |
unit |
HP-500T hydraulic press |
|
1 |
Total pressure |
KN |
5000 (500 Tons) |
|
2 |
Max working pressure |
Mpa |
7.8 ( 78kg/cm2 ) |
|
3 |
Retract pressure |
KN |
600 (60 Tons) |
|
4 |
Max stroke |
mm |
1200 |
|
5. |
Voltage (for all electric unit) |
380V, 3P, 50HZ |
|
6 |
The moving worktable to the bottom beam (slider stroke) |
mm |
0-1200 adjustable |
7 |
Slider stroke |
fast closing speed |
mm/s |
90 |
|
pressing speed |
mm/s |
50 |
|
Return speed |
mm/s |
90 |
|
8 |
Worktable size(the size of the moving worktable) |
mm |
800x800x80 |
|
9 |
Worktable high from ground |
mm |
500 |
|
10 |
auxiliary cylinder pressure |
KN |
600 |
|
11 |
auxiliary cylinder stroke |
mm |
1200 |
|
12 |
Motor power |
KW |
2 5 |
|
13 |
Structure mode |
|
Four column |
|
15 |
Operation system |
|
Automatic PLC system |
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
