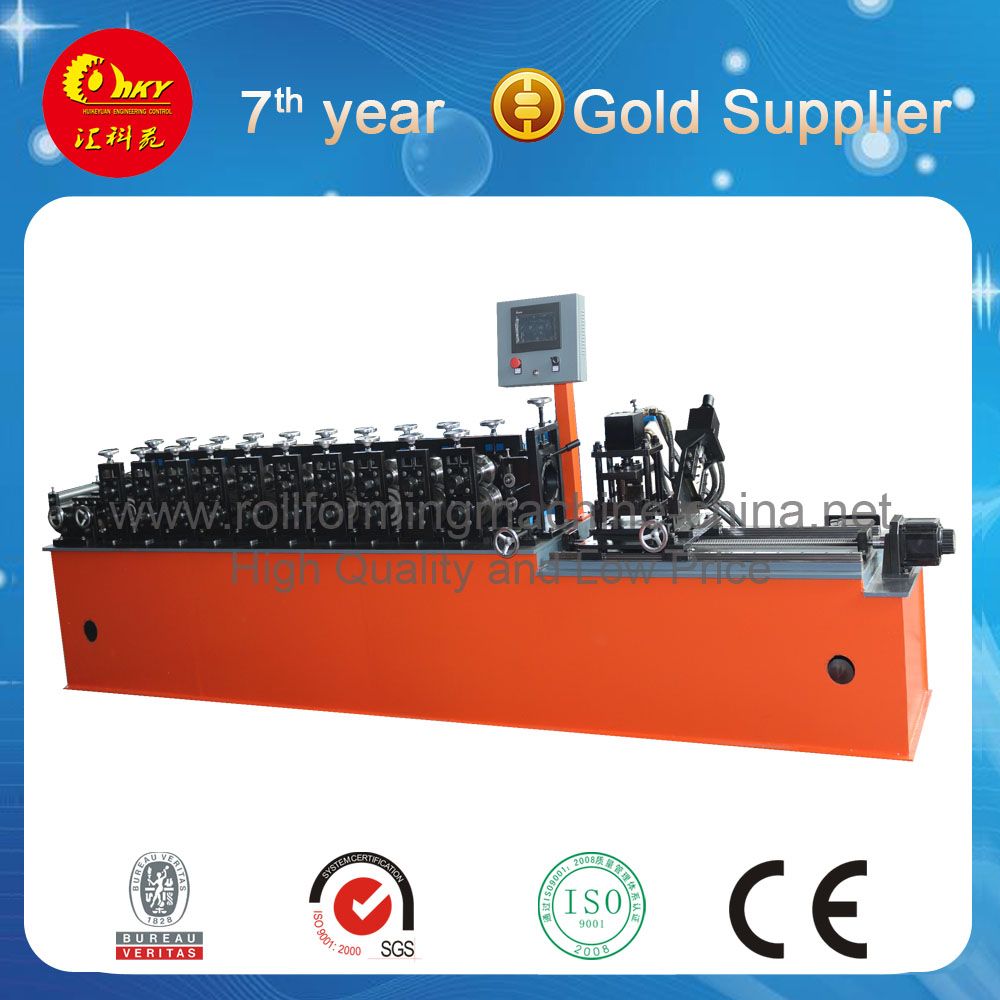

Steel Tile Roll Forming Machine (HKY001)
Components of whole set roll forming machinery:
1. De-coiler
2. Shearing Device
3. Forming System
4. Cutting Device
5. Run-out table
6. Electrical System and Control centerSet1
Technical Parameters
1. De-coiler
Manual Un-coiler
Width of raw material: 1250mm
Max Capacity: 8000kgs
Max out diameter of coil: 1600mm
Inner diameter of coil: 500-600mm
Manual feed with brake
2. Shearing Device
Shearing way: Manual
The material of blade: Cr12 with Heat treatment HRC60-62
3. Tech parameter
1 Main motor power:5.5KW
2 Hydraulic station power:4KW
3 Hydraulic oil pump:CB-E310
4 Sprocket: P-25.4
5 Roller station: 11
6 Material of Main Shaft: High Grad #45 Steel, Heat Treatment
7 Diameter of principal Shaft: 60MM (add a key between axle and roller to fix)
8 Material of roller: C45steel hard chrome plating
9 Processing speed: 20m/min
10 Installation dimension about(L*W*H):5*1.5*1.4M
11 Total weight: about 4.6T
4. Cutting device
Oil pump station 1set
Motor power of Oil pump station: 4kw
Forced air cooling device available
Cutting mould: 1set
Material of blade: CR12 with heat treatment HRC60-62
Pressure of cutting: 15tons
5. Run-out Table
Frame: Angle bar or steel tube welded
Length: 3m
Quantity: 1 pc
6. Electrical System
PLC and HMI touch Screen (Taiwan Delta or Siemens)
Automatic length measurement
Automatic quantity measurement
Length measurement: Rotary Encoder
Over current protection for control system, aviation plugs
Cutting off type: Paused to cut, moving automatically after cutting.
Power: 380V 60Hz
We also can design and manufacture as per your request!
