Characteristics:
1,pioneer in china
2,drawing without acid
3,bright and high speed
Bright steel wire producing process:
Hydraulic double position high speed non-stop continuous high rack wire pay off stand→
Mechanical descaler→coated abrasive polish machine→fixed position wheel group→

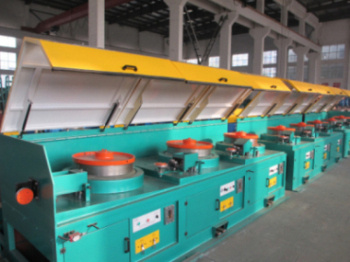

LZ8/560 straight line wire drawing machine group→tension stand→SB560 non stop high
Speed coiler
Size | LZ250 | LZ300 | LZ400 | LZ560 | LZ600 | LZ700 | LZ900 | LZ1200 |
Block diameter mm | 250 | 300 | 400 | 560 | 600 | 700 | 900 | 1200 |
Max inlet wire tensile strength | ≤300 |
drawing passes | 2~12 | 2~12 | 2~12 | 2~13 | 2~9 | 2~9 | 2~9 | 2~9 |
Max inlet wire diameter mm | 2.5 | 2.8 | 4.2 | 6.5 | 8 | 10 | 14 | 16 |
min finished wire diameter mm | 0.3 | 0.6 | 0.75 | 1.35 | 1.6 | 2.2 | 3 | 3 |
max drawing speed m/s | ~20 | ~20 | ~20 | ~15 | ~12 | ~10 | ~8 | ~6 |
drawing power kw | 5.5~7.5 | 7.5~11 | 7.5~22 | 22~55 | 22~75 | 45~90 | 90~132 | 90 ~160 |
block | use cast steel spraying tungsten carbide (or bead weld abrasion-resistant alloy),hardness HRC>60, good abrasion performance.cooling style adopt narrow slit type cooling and annular air cooling. |
drive system | LZ350-LZ560 type wire drawing machine use first class or second class strong narrow V belt drive, transmission stable.LZ450-1200 use first class strong narrow V belt+first class hard tooth face gearancillary drive,high contact ratio and overlap ratio , transmission stable,low noise;also can use first class strong V belt+standard hard tooth face gear drive. |
die bos | water cooling,can adjust up,down, left,right,euip pressed wire device.decrease wire vibration,not easy to rise unqualified wire, can choose rotating die box,pressure die box and die box stirring device |
tuning device | Tunning roller suface painting , Wear Resistance,use pneumatic back tension tunning, tension can tune constant |
control type | Ac frequency speed adjustment, PLC Full Digitalization control, man-machine interface touch screen |
wire pay off type | hydraulic high rack wire pay off or "I" spooler wire pay off machiine |
wire take up type | "I" spooler wire take up machiine or non stop coiler |
Installation Requirement
Pos. | Item acceptance | Requirement |
1 | position and height of the equipment | adjust the level, height tolerance between the inlet and outlet no more tham 2mm |
2 | Fixture of the equipment | Fixed solid, no violent dithering phenomenon during operation |
3 | Water tube, air tube, oil tube | No leaking, no air leakage, no oil leakage |
4 | No-load test | 1. Running normally, can not have the phenomenon such as jam, violent vibration and sound 2. Each drum speed matching 3. The action of the switch button is normal |
5 | Equipment load test | Equipment operation is normal, qualified product quality, equipment performance is stable |
REMARKS:
Wire drawing machine is customized products, we will precise calculate according to the customer's requirements, providing customers with the most suitable products, the perfect on-site installation and after-sales service.
Our company will provide the whole machine quality assurance for one year, belt and quik-wear parts warranty for 3 to 6 months.
Jiangyin Hengyi Electromechanical Co., Ltd is a high-tech manufactory which is specialized in wire drawing machine, lighting material and precision alloy material. The main products are various wire drawing machine, dumet wire, nickel-coated steel wire, soft magnetic alloy, expansion alloy, thermostat bimetallic strip, ect...Also our company has obtained the GE Approval and CSA Approval.
Our company has gained good reputation in domestic and overseas market with superior quality, reasonable price and perfect afer-sales service. So far, we are obedient to the principle of Create Value for Customers. If you are interested in our products, please feel free to contact us for more information.
