| Price: | Negotiableset |
|---|---|
| Trade Terms: | CFR |
| Min Order: | 1set |
| Pay Type: | L/C,T/T,Western Union |
WORKING PRESSURE | MAX.ALLOWED PRESSURE | DRIVE SYSTEM | CONTROL SYSTEM | POWER SOURCE | POWER CAPACITY |
| 5kgf/cm²0.49Mpa | 8kgf/cm²0.78Mpa | Pneumatic Cylinder | PLFBS-10MAT | AC220V+10V 50/60HZ | 0.5 |
| MODEL | VERTICAL STROKE (mm) | CROSSWISE STROKE (mm) | SWING ANGLE (DEGREE) | MAX.LOADING (kg) | NET WEIRHT (kg) | (TON) MACHINE | |||||||||||||
| MAIN ARM | DEPUTY ARM | MAIN ARM | DEPUTY ARM | ||||||||||||||||
| ST650ID | 650 | 650 | 170 | 120 | 1000 | 2.5 | 135 | 80-200T | |||||||||||
| ST750ID | 750 | 750 | 170 | 120 | 1300 | 2.5 | 145 | 80-250T | |||||||||||
| MODEL | TOTAL HEIGHT | THE TOP OF THE CYLINDER AND THEDISTANCE OF THE BASET | LEAD PULLED OUT FROM BASE | MAIN ARM STANDBY HEIGHT 1 | MAIN ARM STANDBY HEIGHT 2 | DEPUTY ARM STANDBY HEIGHT | THE TOTAL LENGTH | LEAD LENGTH PULLL | VALVE CHEST WIDTH | THE BASE WIDTH | THE BOOM AND ARM MINIMUM DISTANCE (K/Min) | THE MAIN ARM AND BASE MINIMUM DISTANCE (L/Min) | THE MAIN ARM AND BASE MAXIMUM DISTANCE (L/Max) | PAIR AIR OF ARM AND BASE MINIMUM DISTANCE (M/Min) | PAIR AIR OF ARM AND BASE MAXIMUM DISTANCE (M/Min) | LEAD STROKE PULL (N) | STANDBY CENTER DISTANCE AND ARCH ABUTMENT (O) | ||
| ST650ID | 1370 | 1120 | 500 | 82 | 118 | 115 | 1480 | 600 | 345 | 120 | 100 | 350 | 600 | 250 | 470 | 1000 | 230 | ||
| ST750ID | 1490 | 1220 | 500 | 82 | 118 | 115 | 1480 | 600 | 345 | 120 | 100 | 350 | 600 | 250 | 470 | 1000 | 230 | ||

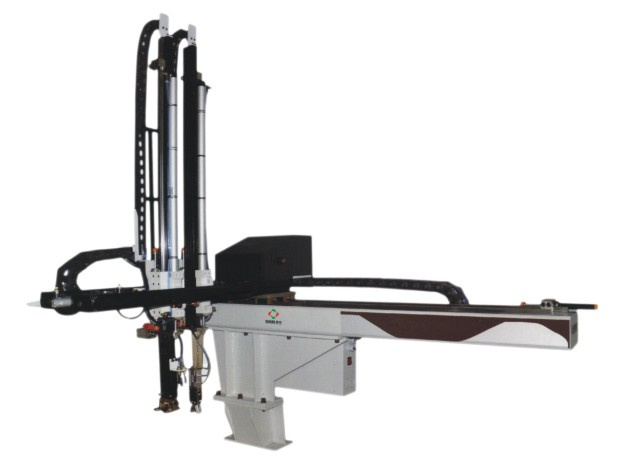

| Prod Model: | SST650ID/SST750ID |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automaticly: | Convenient |
