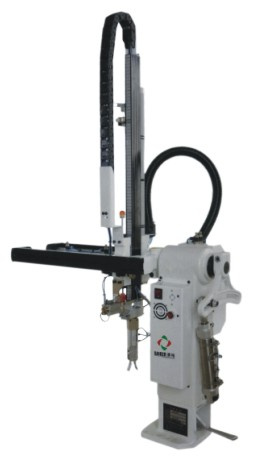

Take-out servo robot arm (robot for injection moulding machine)
WORKING PRESSURE | MAX.ALLOWED PRESSURE | DRIVE SYSTEM | CONTROL SYSTEM | POWER SOURCE | POWER CAPACITY |
5kgf/cm²0.49Mpa | 8kgf/cm²0.78Mpa | Pneumatic Cylinder | PLFBS-14MAT | AC220V+10V 50/60HZ | 0.2 |
MODEL | VERTICAL STROKE (mm) | CROSSWISE STROKE (mm) | SWING ANGLE (DEGREE) | MAX.LOADING (kg) | NET WEIRHT (kg) | (TON) MACHINE |
SM550ID | 550 | 120 | 50-90 | 2 | 42 | 80-160T |
SM650ID | 650 | 120 | 50-90 | 2 | 45 | 80-200T |
MODEL | TOTAL HEIGHT | LEAD LENGHT PULL | HEIGHT OF CENTER OF ROTATION | THE ARCH WIDTH | FIXTURE WITH BASE MINIMUM DISTANCE | FIXTURE WITH BASE MAXIMUM DISTANCE | STANDBY HEIGHT | WIDTH OF THE FUSELAGE | THE BASE WIDTH | THE TOTAL WIDTH |
SM550ID | 1280 | 550 | 532 | 255 | 100 | 350 | 195 | 175 | 180 | 320 |
SM650ID | 1400 | 550 | 532 | 225 | 100 | 350 | 195 | 175 | 180 | 320 |
The precursor of "ONGO" was established in 1992. After more than 20 years running, we have formed a professional team with more than 10 years developing and manufacturing experience in high-grade plastic injection machine. We adpot morden development technology and scientific management system to build "ONGO" Z series high-grade plastic injection molding machine FROM 700KN to 30000KN clamping force.
The company is situated in Ningbo Industrial Electomechanical Park, covering an area of more than 60000 square meters with an annual output of some 3000 sets.
"The profession guarantees quality, the technology Creates future". Depending on up-to-date technology, strong productivity, scientific management and customer-oriented concept, the company has been one of the most active enterprises in plastic machine industry in China!
