BEST MATERIAL- Forged steel SC45 LONG LIFE- At least 5 years life .
HIGH PRECISION- No any flash , no any gap .
GOOD HEAT TRANSFER- curing time are shorter than old type .

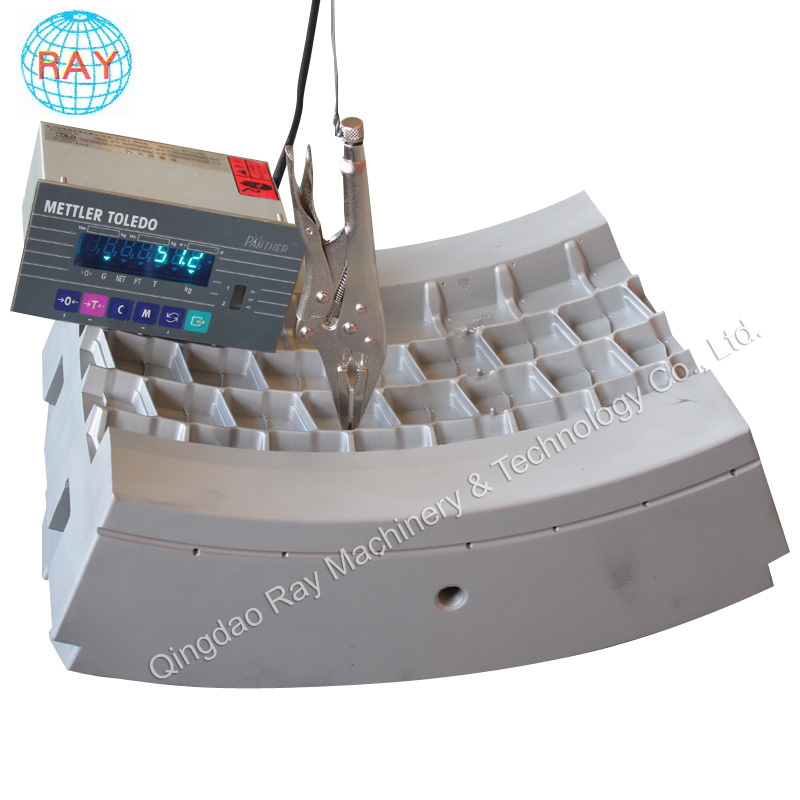

1 Product name: segments mould2 Material of product : Forged steel ST-52.3 or equivalent.& casting steel ST-52.3 or equivalent & alloy steel 3 Manufacturing method: CNC turning & CNC milling & CNC engraving & EDM ,Sands blasted urface . 4 Price : Depond on the construction & tread pattern ; we always quote you by FOB term;5 Period of Validity : Normally it is valid for 2 Month, special order is 3 Month; 6 Payment term : We like do business by T/T ,some times ,D/P& L/C at sight also can be accepted. 7 Package : Inside: Plastic film package all product to avoid rust.Outside: STD wood box with pallet . 8 Period of shipment : For normal order , delivery in factory is 7 weekes. For special order , by discussing .9 Parameters of Goods : Life: all steel mould is more than 10 years. Main tolerance of OD& SECTION&bead ring , within 0.1mm.10 Advantage :Special manufacturing method were taken ,Proper material to ensure long life ;CNC process to ensure all tolerance are exactly on target .Flexibal delivery time and payment term can be discussed .
![]()
Company Profile:
Our Company is a professional tyre mould& rubber machine manufacture in China. We have more than16 years' experience in rubber industry. Our have served hundreds of overseas customers. We also provide professional after-sale service and product maintenance to satisfy all your needs.
Our product Catalog includes:
Mouldseries: Tyre mould, bladder mould, solid tyremoud ,air spring moud,agr mold &industrial mould, inner tube mould& flap mould,building drums for all tire tyres.
Rubber machine series: Mixing mill, press machine, hydraulic press,tyre building . Steel-wire extruding and Cracking mills.
Capacity of mould production: 50 sets of moulds per month.- 2D &3Ddrawing design for customer by CAD / CAM .
- Use good materials &Precise cnc machine to produce. Turnning lathe:Diameter from 100mm to 2800mm.

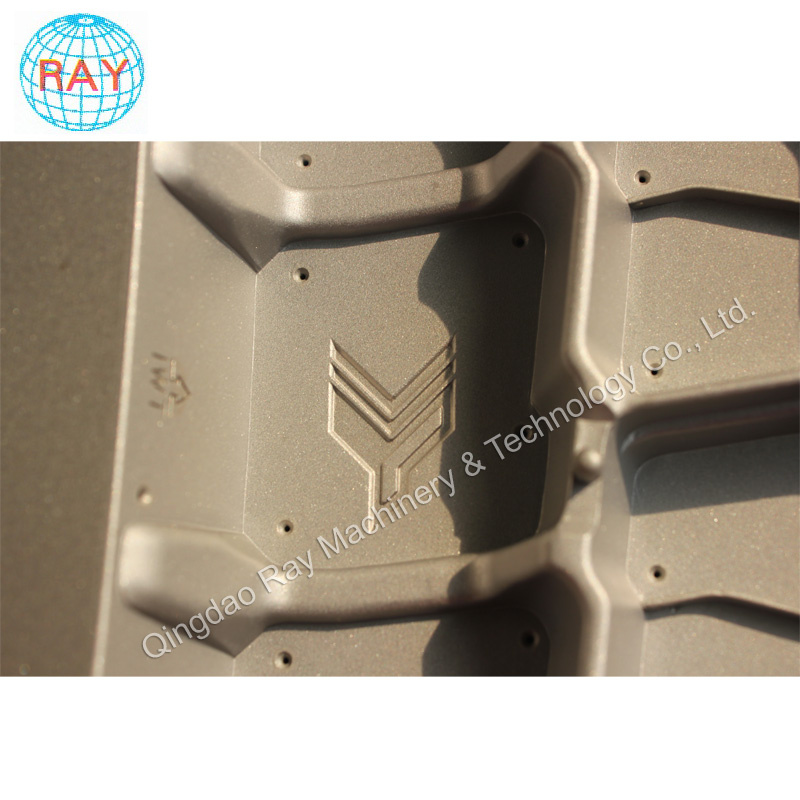

- Tread pattern were made by EDM specified machine, electrode were made by CNC machine which diameter OF loading is from 400mmto 2000mm.
- Your trademark on tyre sidewall will be engraved by CNC mill machines. We have 3 axes,4 axes and 5 axes to satisfy different requirements.
- 5 steps of quality inspection to achieve customer's requirments, check the run-out &T.I.R of mould, assemble testing .
| MAXIMUM DIAMETER | 2000MM |
| MAXIMUM THICKNESS | 1200MM. |
| MAXIMUM WEIGHT | 6000KG. |
RAY could supply whole design for your new moulds project according to the original size moulds.
The drawings for tire moulds are designed with the considerations of mould durability, convenience of assembling, safety function, Curing press fitting availability, to reduce defects or tiny faults in tire production.
Your design ideas and specification which include special requirements are checked and studied by our highly skilled experienced engineers. Then we combine know-how and expertise into your requirements for manufacturing the best tire mould. Good moulds are born through a very high level of workmanship and an understanding of your requirements and requires. When such a faithful workmanship is put into production and applied to the mould manufacturing, a very high standard of tire mould is manufactured.

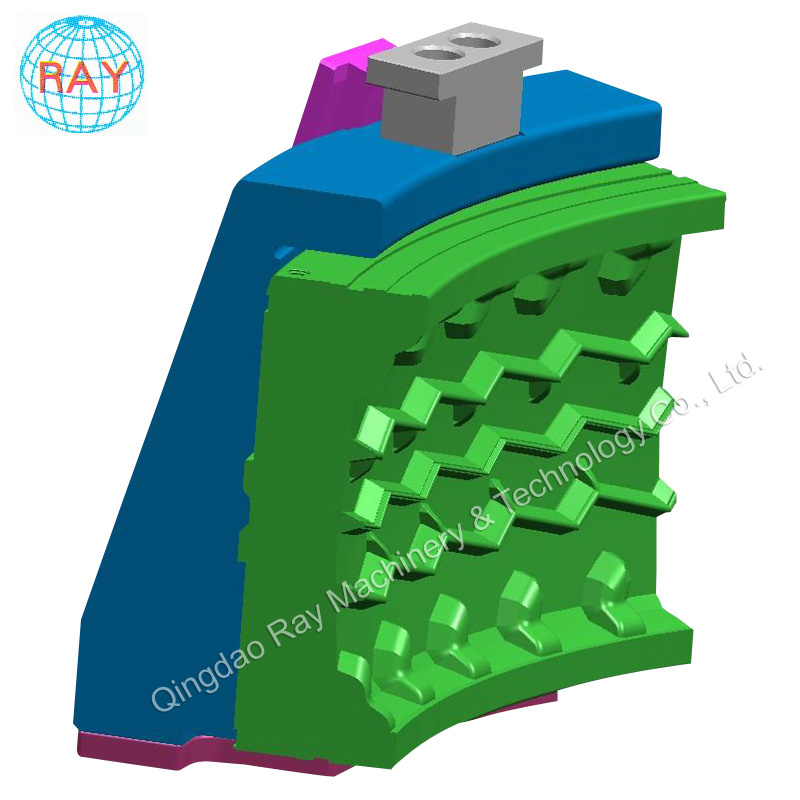

We have made many improvements and research over the years. We can offer tire pattern design,3D Modelling,Mould Drawing, Lettering Drawing and Pattern Design Simulation in technical area , based on the technical data.
A Mould is a very important piece of equipment which determines the final process of tire production. Company value is depending on the dignity of how good tires you produce. You have to use good tire moulds to produce good tires. With RAY tire moulds you will upgrade your tire level. Focusing on your tires, Your will understand how important tire mold is.
FAQ :
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM / ODM manufacturer and trading company with ISO9000 and export license.
2. Question : Why choose cooperate with us ?
Answer : -We have more than16 years'experience in rubber industry.
-We have highly experienced engineers and skilled workers.
-Wecould supply whole drawing design, production, assembling, testing, maintenance.
3. Question : Where is your factory located ?
Answer: Our factory located in Qingdao city, Qingdao port is so convenient ,so you will receive your product as soon as possible.
4.Question :What is your mission?
Answer: :Do our best to set up and maintain a bridge. Through this bridge ,Chinese high quality tyre mould & rubber machine with competitive price will serve more friends of the world.![]()
![]()
![]()
Qingdao Ray Industries inc is located in the beautiful coastal city of Qingdao.
We are the professional manufacture of tyre mould in China. We have been in the field for 16 years. Company possesses good reputation and complete management system, the first-class service to customers, deeply overseas clients.
We not only provide the most competitive prices with best quality, but also have the ability to help customer to solve all of their problems happened during the design stage to the finish products.
Products are exported to Asia, Europe, Amarican. etc;
Company is willing to cooperate with the customers, and create a better tomorrow.
