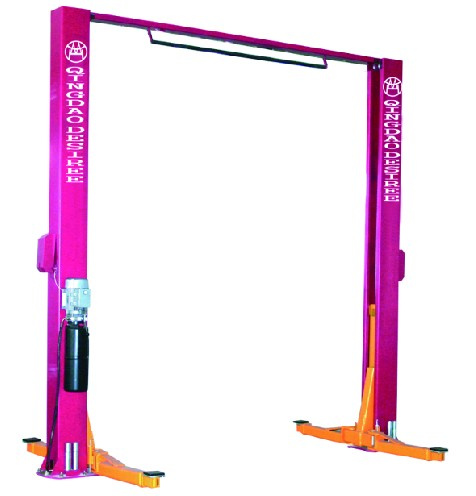

Gantry design, convenient for repairing and operation
Dual-cylinder lifting system, stable and fast
Cable -equalization system
Single or double manual lock release system, safe and reliable
Wear -resistant, heat-resistant and high strength macromolecular polyethylene slide blocks
Mold machining through the whole process so that the part are universal and interchangeable
Automatic arm lock release
Automatic lifting height limitation
Pass 120%capacity dynamic load test and 150% capacity static load test
Italian oil seal to make sure no oil leakage
DTPO610AC is asymmetric design, DTPO610VC has two pieces columns
Features:
Working noise ≤ 75dB ( A )
Rise time 75s
Drop time 70s
Motor power 2.2Kw/220 ~ 380V
Working pressure 14Mpa
Relative humidity 80%
Using altitude ≤ 1000m
Lifting capacity 14000lbs/6300kgs
Lifting height 1882mm
Clearance between posts 2750mm
Overall height 3674mm
20 container 24 sets
40 container 40 sets
Single point lock release Manual
|
Model No. |
Lifting Capacity |
Lifting Height |
Overall Height |
Width Between Posts |
Rise/Drop Time |
Power |
|
DTPO610AC |
4500kgs/10000lbs |
1860mm |
3672mm |
2538mm |
60/50s |
2.2kw |
|
DTPO610CX |
4500kgs/10000lbs |
1860mm |
3672mm |
2999mm |
60/50s |
2.2kw |
|
DTPO610VC |
4500kgs/10000lbs |
1860mm |
3672mm |
2981mm |
60/50s |
2.2kw |
|
DTPO612 |
5500kgs/12000lbs |
1882mm |
3674mm |
2750mm |
75/70s |
2.2kw |
|
DTPO614 |
6300kgs/14000lbs |
1882mm |
3674mm |
2750mm |
75/70s |
2.2kw |
