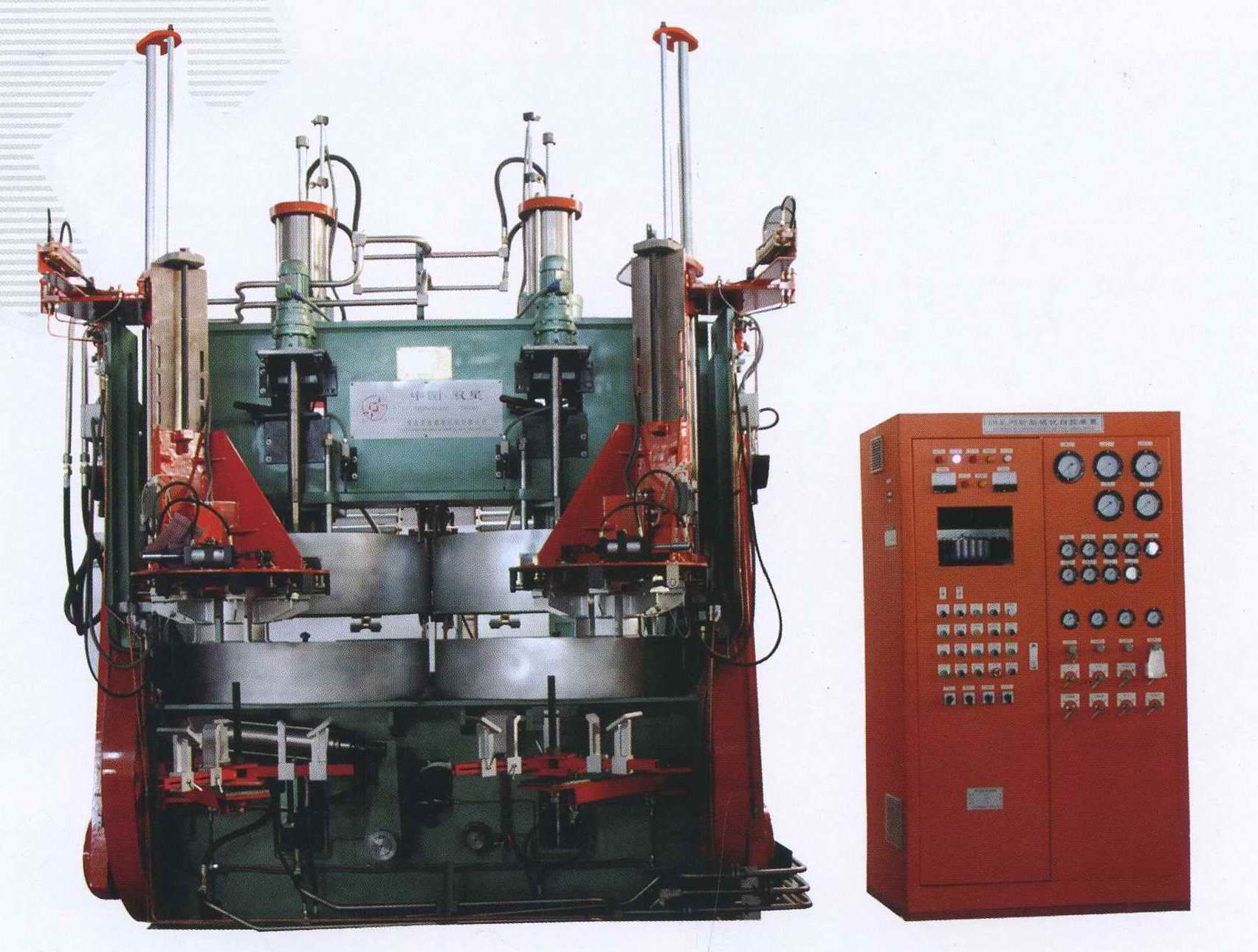

B (Bag O matic) type double mould tyre shaping and curing press is suitable for the vulcanization of all-steel heavy-duty radial tyre, semi-radial tyre and nylon bias tyre with one set of additional post curing inflator.
Sizes of the machine: LL-B1145X2, LL-B1310X2,
LL-B1525X2, LL-B1640X2.
| MODEL | LL-B1640X2 | LL-B1525X2 | LL-B1310X2 | LL-B1220X2 | LL-B1145X2 | LL-B1050X2 |
| Steam dome specifications | (65.5'') 1640mm | (63.5'') | (55'') | (48'') | (45'') | (42'') |
| 1525mm | 1310mm | 1220mm | 1145mm | 1050 |
| Max. mould closing force | 4450X2KN | 4220X2KN | 2890X2KN | 1920X2KN | 1720X2KN | 1320X2KN |
|
| Height of mould | 254-622mm | 254-635mm | 245-445mm | 305-505mm | 230-455mm | 180-300mm |
|
| Power of main motor | 16Kw | 13Kw | 13Kw | 11 Kw | 11 Kw | 11 Kw |
|
| Apply bead specifications | 19''-24.5'' | 18''-24.5'' | 16''-20'' | 13''-20'' | 12-17.5'' | 12''-16'' |
|
| Notes | It works for the vulcanization of TBR, PCR tires or bias tires.
If it works for curing the bias tires, the press will match with post curing inflator.
If it works for curing the radial tires, the press will match with segmented mould controller |
|
Qingdao Newdesen Industry Co., Ltd. is one of the leading manufacturers of rubber machinery in China and located in Jiaonan, Qingdao, China and has got ISO9001 quality system certificate.
The main products are semi-steel radial tire building machine (First stage and second stage), all-steel radial tire building machine (Two drum and three drum), tire curing press (45, 48, 55, 63.5, 65.5 inches), all kinds of conveyor belt press-lines, all kinds of batch off and large two-roll mixing mill series, etc. Our company can also design and manufacture all kinds of non-standard rubber machines according to the requirement of clients. We can provide the service for large projects including machines and technology of bias tire, all-steel radial tire, semi-steel radial tire and all kinds of conveyor belt, etc.
