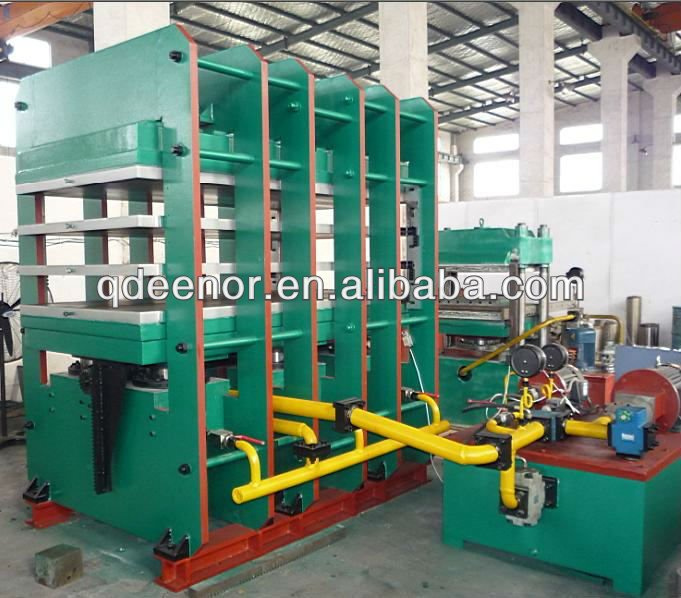

Tire tread vulcanizing press, Tyre tread vulcanizing press, Tire retread vulcanizer
Specifications
1. Low energy consumption
2. Convenient in maintenance
3. High capacity with simple operation
4. Automatic PLC system
The main features of this tyre tread vulcanizing press
1. Two dual-action cylinders are adopted for fast mold open / close;
2. Provided with mass flow pre-fill valve;
3. Automatic mold forward / backward;
4. PLC controlled;
5. Unit area pressure no less than 45kg/cm ² To ensure the density of the tyre-surface
6. Multiple options of layer number and tables;
7. Hydraulic pressure components and electrical equipments are imported or of local famous brand, to ensure reliable performance.
8. Each batch tyre tread vulcanizing time is 22-25 minutes.
9. We also can according to the customers' requirement, and design the non-standard type of tire tread vulcanizing machine.
|
Model |
XLB-400×3600×3/600T |
|
Total Pressure |
6.0MN |
|
Plate Size |
400×3600×70(mm) |
|
Daylight |
200mm |
|
Unit Area Pressure |
4.0Mpa |
|
Working Layer No. |
3 |
|
Piston Diameter |
250mm |
|
Oil Cylinder No. |
6 |
|
Piston Stroke |
600mm |
|
Working Hydraulic Pressure |
20.3Mpa |
|
Plate Heating Mode |
Electrical or Steam or Oil |
|
PressStructure |
Frame Type |
|
Control System |
PC Automatic |
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
