| Price: | US $ 10000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Advantages | 1.Strong tensile strength; 2.High efficient; 3.Handy operation; 4.Quick link; 5.High quality; 6.Economy profit 7.Environment protection; |
| Test | 100% bar break |
| Privilege | According your order, we can give related items as a present; |
Package | Wooden cases |
Origin | Changzhou City, Jiangsu Province, China |
Other | 1. We can provide FREE SAMPLE(Rebar Coupler); 2.If you have any other problems, please send messages to me; |

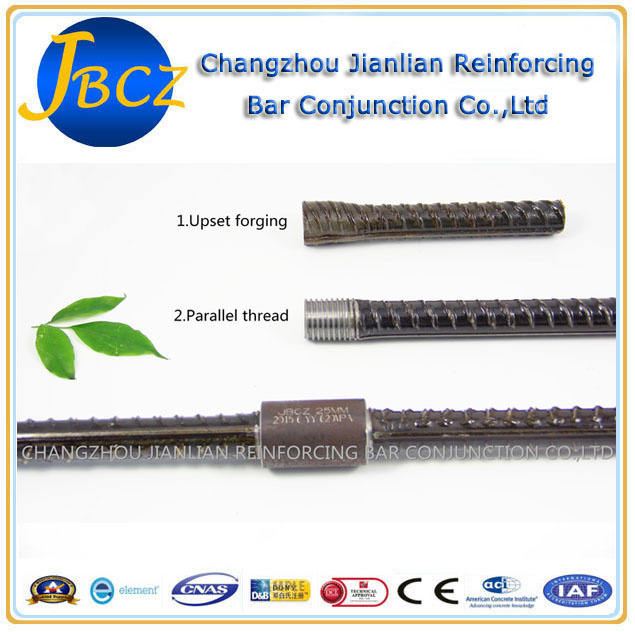

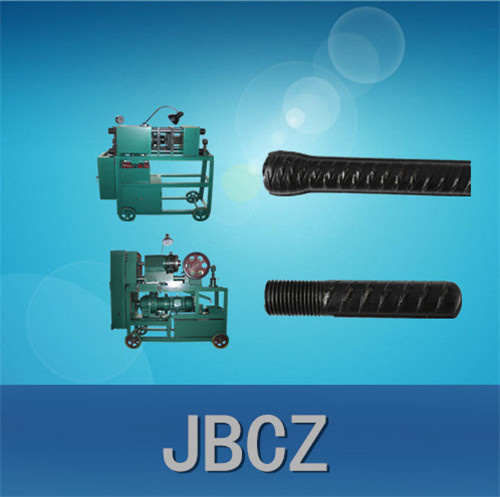

| 1.First, we use GD-150 to forging the end of rebar. |
| 2.Second, we use the GZL-45 to threading the end of rebar. |
| 3.Third, we use the coupler to link the two ends of rebar. |
1. Adopts upset forging parallel thread connection technology; |
2. Wide working range: Adaptable for 12mm-40mm same diameter, different diameter, bending, new and old, advance covered up rebar of GB 1499, BS 4449, ASTM A615 or ASTM A706 standard. |
3. High strength: Stronger than the reinforcement bar and guarantees bar break under tensile stress(tensile strength of connection point =1.1 times of connected bar's specified tensile strength). It can satisfy the requirements stipulated in the Chinese standard JGJ107-2003, JG171-2005. |
4. High efficiency: Upset forging and threading one joint only needs no more than one minute, and handy operation and quick link. |
5. Environmental protection and economy profit: No envirement pullution, can work all day, not affected by weather, economize energy source and bar material. |

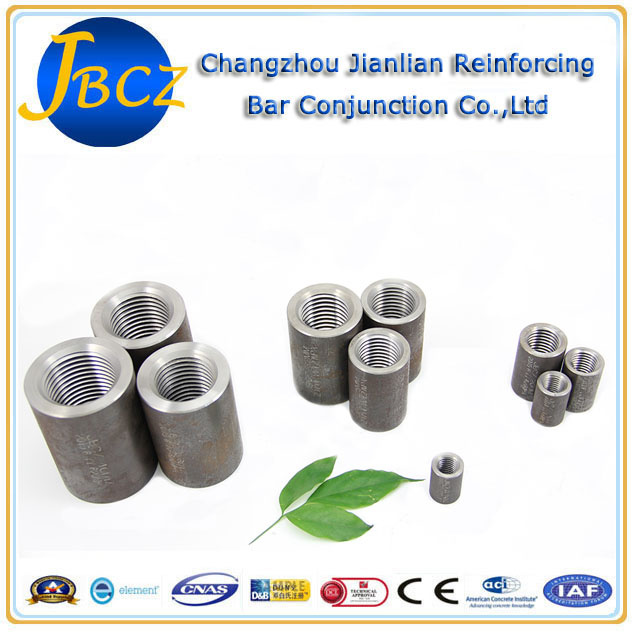

| Steel bar diameter(MM) | Outer diameter of coupler (MM) | Length of coupler (MM) | Size of thread (MM) |
| 12 | 20 | 30 | M14*2.0 |
| 14 | 22 | 34 | M16*2.0 |
| 16 | 26 | 40 | M20*2.5 |
| 18 | 29 | 44 | M22*2.5 |
| 20 | 32 | 48 | M24*3.0 |
| 22 | 36 | 52 | M27*3.0 |
| 25 | 40 | 60 | M30*3.5 |
| 28 | 44.5 | 66 | M33*3.5 |
| 32 | 50 | 72 | M36*4.0 |
| 36 | 56 | 80 | M39*4.0 |
| 40 | 62 | 90 | M45*4.0 |
Shanghai Oriental Pearl TV Tower | Jeddah water pump station |
1. How can I know the quality of JBCZ rebar coupler?
We can send you FREE SAMPLE to do test, or you can send us your rebar, we link it with our rebar coupler, then send back to you, if the test result is bad, we will pay you for the courier charges.
2. Where is your company?
Our company is located between Shanghai and Nanjing China, if you arrive at Shanghai Airport, we are glad to pick up. It will take 2 to 3 hours from the Airport to our company by Car. You are very welcome to visit us!

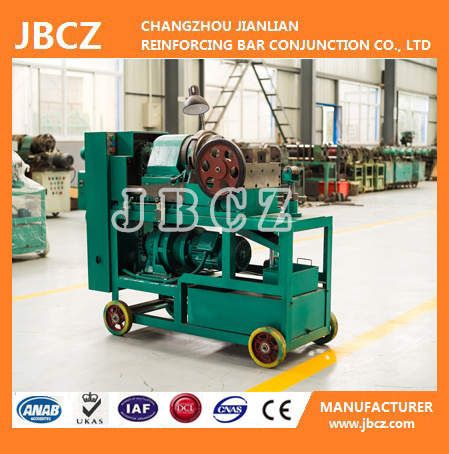

3. If you have any problems about Upset Forging Parallel Thread Rolling Machine GZL-45, please send message to me, I will reply you within 1 working day.
| Prod Model: | GD-150, GZL-45 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: | CE and ISO |
| Thread Type: | Parallel Thread |
| Brand Name: | Jbcz |
| Size: | 12mm-40mm |
| Quality: | High |
| Price: | The Most Competitive |
| Port: | Shanghai |
| Model No.: | Gd-150;Gzl-45 |
| Function: | Process Rebar Dia. From12~40mm |
| Tensile Strength: | 1.08-1.35 Times of Rebar |
| Forging Forming Method: | Free Forging |
| Power Source: | Upset Forging |
