PTFE resin molded sheet is manufactured by molding with PTFE granular resin.

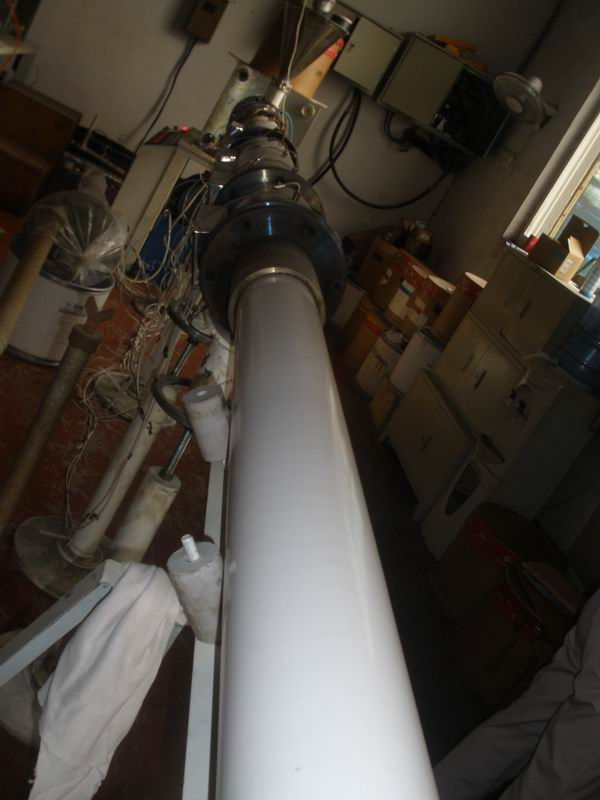

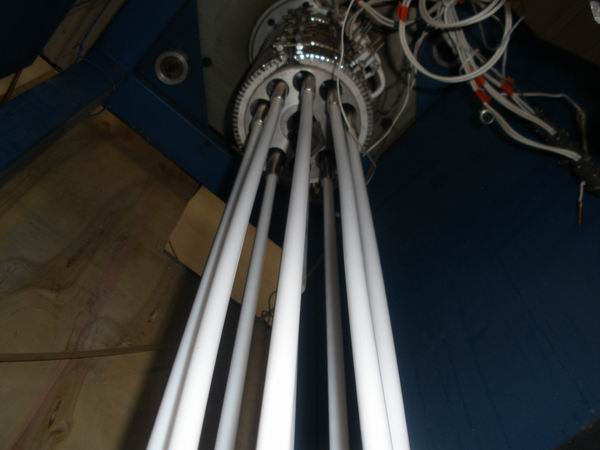

PTFE rod is manufactured with virgin resin by ram extrusion or compressing moulding
PERFORMANCE:
Wide service temperature range(-180 - +260 ), high chemical resistance, high insulation, non-stick, low friction and long life
PTFE sheet
length×width(mmXmm) |
Thickness(mm) |
Tolerance |
150×150 | 1.0-30 | ±0.30-±0.50 |
250×250 | 1.5-30 | ±0.30-±0.50 |
300×300 | 1.5-30 | ±0.30-±0.50 |
450×450 | 1.5-30 | ±0.30-±0.50 |
600×600 | 2-30 | ±0.30-±0.50 |
800×800 | 2-30 | ±0.30-±0.50 |
1000×1000 | 3-30 | ±0.30-±0.50 |
1200×1200 | 3-30 | ±0.30-±0.50 |
1000 ×2000 | 5-35 | ±0.30-±0.60 |
PTFE sheet
Technical data | unit | Result |
Apparent density | g/cm 3 | 2.10-2.30 |
Tensile strength(min) | MPa | 15.0 |
Ultimate elongation(min) | % | 150 |
Dielecric strength(min) | Kv/mm | 10 |

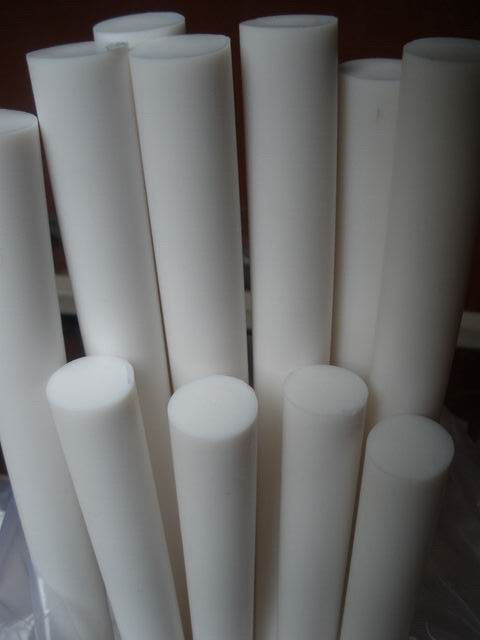

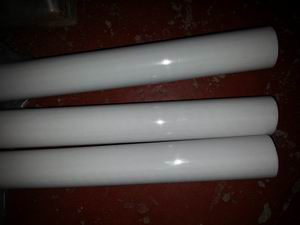

PTFE rod
SPECIFICATION :
Type | Diameter mm | Length mm |
Pressed Rod | 2-4 | Produced under requirements |
Extruded Rod | 5-120 | 500-3000 |
Die Pressed Rod | 55-300 | 100-300 |
TECHNICAL DATA:
Technical data | Unit | Result |
Apparent density | g/cm 3 | 2.10-2.30 |
Tensile strength(min) | MPa | 14.0 |
Ultimate elongation(min) | % | 140 |
