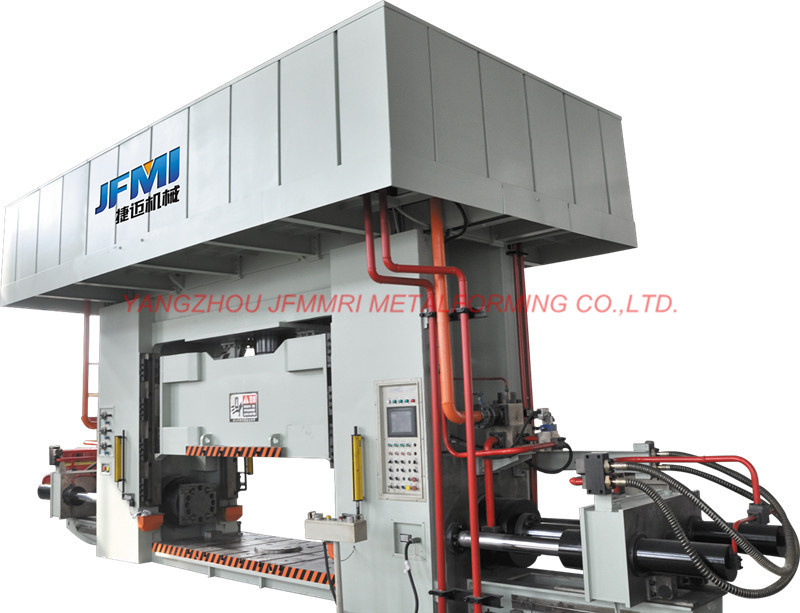

Widely Used Bulging Hydraulic Press with ISO9001
| Price: |
US $ 10000-10000000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Bulging hydraulic press mainly used for pipe production.Bulging hydraulic press mainly used for pipe production.
| Item | Unit | YJ65-200 | YJ65-800 | YJ65-1600() |
| Nominal force | KN | 2000 | 8000 | 16000/16000 |
| slide stroke | MM | 600 | 600 | 600/200 |
| Daylight | MM | 1000 | 1000 | 1000 |
| Size of table | MM | 3000*1200 | 2500*1500 | 2100*1500 |
| Size of slide | MM | 1800*1000 | 1800*1200 | 1800*1500 |
| Return force | KN | 400 | 800 | 1000/1000 |
| Side cylinder force | KN | 2500*2 | 6000*2 | 2000*2 |
| Side cylinder return force | KN | 1000*2 | 1000*2 | 1000*2 |
| Side cylinder stroke | MM | 700 | 550 | 550 |
| The distance between side cylinder pressure middle line and table face | MM | 380 | 380 | 380 |
Side cylinder pressure head
size(W*H) | MM*MM | 450*450 | 700*700 | 450*450 |
Max. distance between side
cylinder head and press middle line | MM | 1500 | 1250 | 1150 |
| Table height above floor | MM | 300 | 300 | 300 |
| Slide quick down speed | MM/S | 100 | 100 | 100 |
| Slide pressing speed | MM/S | After speed low down keep pressure | After speed low down keep pressure | 3~7(when high pressure low speed) |
| Slide return speed | MM/S | 100 | 100 | 100 |
| Ejection cylinder ejection force | KN | 200 | 500 | 500 |
| Ejection cylinder stroke | MM | 350 | 350 | 350 |
| Side cyliner empty stroke ejection speed | MM/S | 40 | 40 | 40 |
| Side cylinder add pressure ejection force | MM/S | 20 | one:15MM/S pressure200T
two:7MM/S pressure600T | 10 |
| Slide cylinder return force | MM/S | 100 | 40 | 50 |
| Press height above floor | MM | 4000 | 6000 | 6000 |
| Motor power | KW | 145 | 170 | 160 |
| Max. part height | T | 8.5 | 20 | 30 |
| Press weight | T | 56 | 108 | 160 |
| Prod Model: |
YJ65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Sheet Metal Drawing, Bending, Blanking, Extrusion |
| Forging Forming Method: |
Mold Forging |
| Power Source: |
Hydraulic Pressure |
| Advantage: |
Use Widely |
Yangzhou JFMMRI Metalforming Machinery Co., Ltd. is located in the beautiful Hanjiang Economic Development Zone of Yangzhou. We are a new modern enterprise invested by Jinan Foundry and Metal Forming Machinery Research Institute and Yangzhou Metalforming Machine Group Co., Ltd.
Our company produces a variety of straight-side mechanical presses of less than 1250 tons with one, two or four points for current or special use, and all kinds of hydraulic machines of below 3000 tons for current or special use, and related automated production lines. The technologies of our products have reached advanced level. All our products are applied extensively in many fields, such as automobile, agricultural vehicle, light industry, home appliance, building material, military industry, and shipping. We can satisfy users completely in different level.
Using the peculiar advantages in design, development, debugging and machining in forging and stamping industry, we innovate continuously on the existing foundation of sale and service network, to offer optimum manufacture in the lowest price to the market and finally realize the benefits for both sides of supply and demand. Our company has always paid great attention to technical innovation since our company was set up in 2002, and we have R&D center and have developed more than 120 items of new products successfully. Our products have maintained continuous increase in sale, output, profit tax and market share, and especially are appreciated by foreign investment companies and domestic capital enterprises.
Our staff will adhere to the pursuit of "exceeding ourselves", and persist in implementing the management concept of "developing new products to survive, expanding the market for success, reinforcing the foundation for the development, and innovating the management for the efficiency", to build the brand of "Yangzhou JFMMRI". We are willing to work together with all colleagues and friends to improve your machinery equipment level. Taking the industrial revitalization of nation as our responsibility, we strive to improve the overall quality of the enterprise, and provide high quality products and services for our new and old customers.
