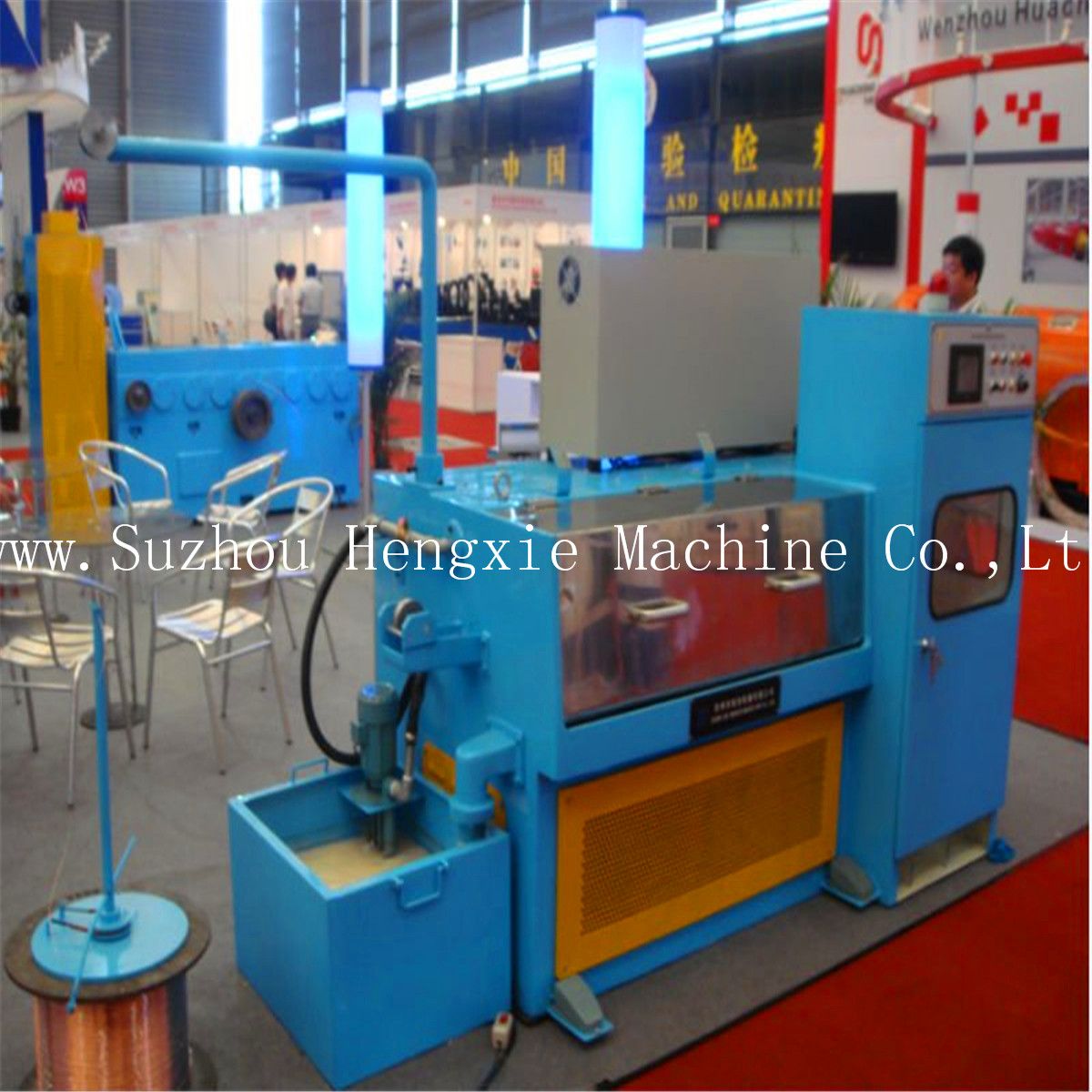

Wire Drawing Machine (HXE-22DW)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
HXE-22DW Copper wire drawing machine
Technic Deatil
| Inlet diameter | 0.6mm-1.2mm |
| Outlet diameter | 0.1mm-0.7mm |
| Dies | 14 |
| Max speed | 2500m/min |

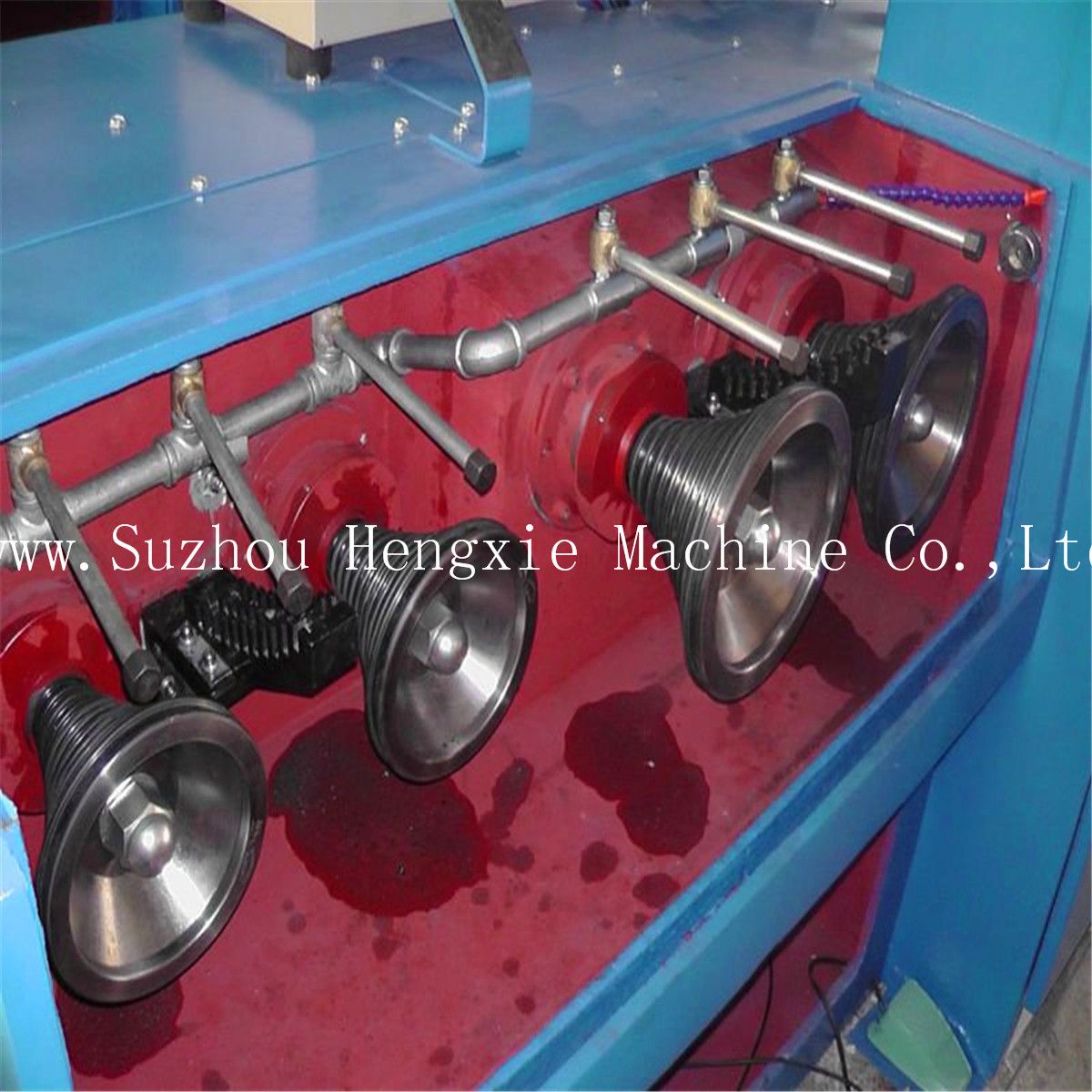

| Capstan | Ceramic plasma |
| Slip ratio of machine | 15% |
| Slip ratio of fix speed capstan | 8% |
| Fram | Iron cast |
| Capstan size | 242mm |
| Fix speed capstan size | 207mm |
| Main motor | 15KW Three phase AC motor |
| Spool motor | 3.7KW Three phase AC motor |
| Revise system | PID synchronous control spoole |
| Inverter control | Dual inverter control |

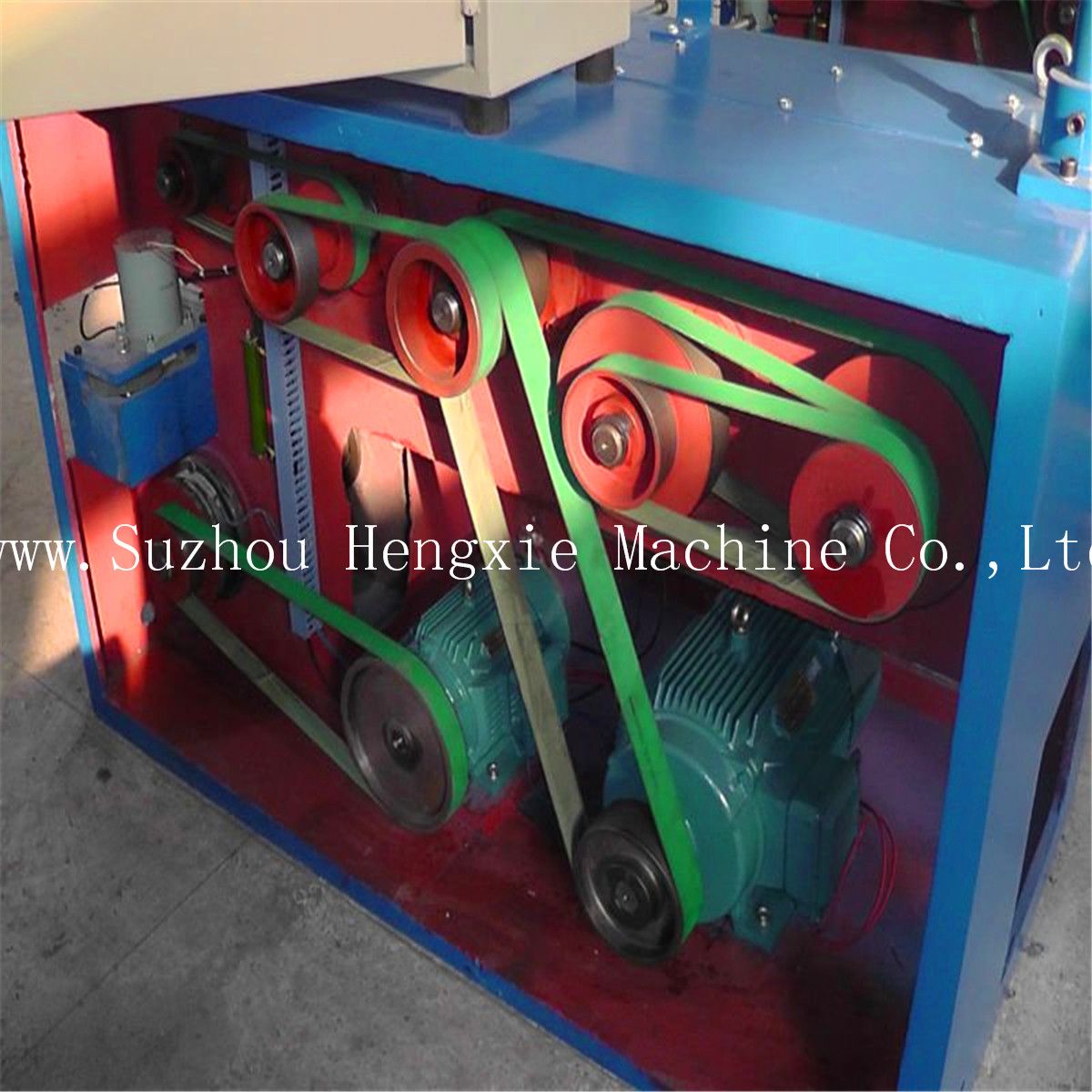

| Transmission type | Flat belt |
| Pay-off method | Over-head |
| Traversing unit | Flat belt+synchronous motor |
| Tension control | Weight balance by swing arm |
| Lubracation type | Spray |
| Bobbin size | 300mm or customized |
| Spooler capacity | 50-60kg |
| Bobbin loading | Shaft type |
| Power source | 380V or customized |
| Brake | pneumatic brake |
For any require ,for any question,please feel free to contact me.i will reply as soon as possible.
| Prod Model: |
22DW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Hxe New |
| Operation: |
Button Control |
| Popularity: |
Hot/on Sales |
| Warranty: |
1 Year |
| Inverter Control: |
Dual Inverter Control |
| Color: |
Bule/Customized |
| Power: |
Customized |
| Bobbin Size: |
300mm or Customized |
| Type: |
LT Water Tank Type Metal Drawing Machine |
| Usage: |
Rope Wire |
| Max.Inlet Wire Dia.: |
0.6mm-1.2mm |
| Outlet Diameter: |
0.1mm-0.7mm |
| Max. Number Of Block: |
22 |
| Certification: |
TÜV |
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
