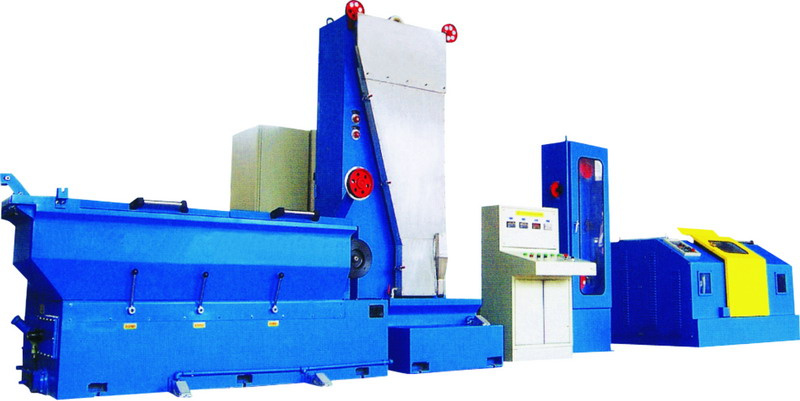

Intermediate wire drawing machine for copper wire
Inlet: 2.5-3.2mm
Output: 0.4-1.2mm
| Products models | 17H | 9H |
| Revolving speed | Max1200m/min | Max 1200m/min |
| Main motor | 37kw |
| Take-up drive motor | 15kw | 15kw |
| Inlet wire | 2.0-3.2mm | 2.0-3.5mm |
| Finish dia | 0.4-1.6mm | 0.8-1.6mm |
| Spool capaticy | 300-500kg | 300-500kg |
| No. of dies | 17 | 9 |
| Capstan | Tungsten steel four-layer slit-type,surface tungsten carbide (full immersion) |
| Reduction rate | 25% | 25% |
| Transmission type | Gear transmission,hydraulic pressure is adopted for both lifting and tightly with standing of receiving wire |
| Power consumption | 70kw |
| Dimension | 12500*3000*3000 | 12000*3000*3000 |
| Weight | 4500kg | 4200kg |
