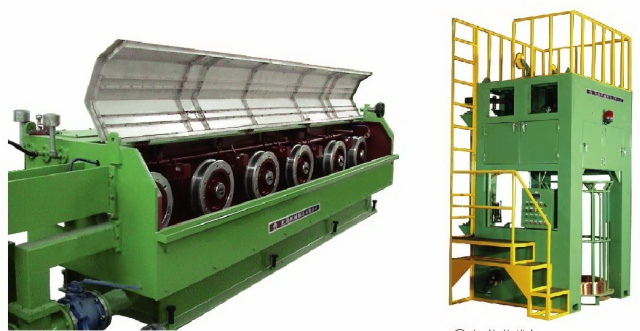

Intermediate wire drawing machine for copper wire
Inlet: 8mm
Output: 1.3-4mm
| Products models | 13D |
| Revolving speed | 25m/s;(Φ1.3mm) ≥18m/s(Φ2.0mm) |
| Main motor | 280kw(DC) |
| Take-up drive motor | 30kw(DC) |
| Fix speed capstan motor | 75kw(DC) |
| Inlet wire | Φ8.0mm |
| Finish dia | Φ4mm-1.3mm |
| No. of dies | Max 13 |
| Capstan size | 450mm |
| Reduction rate | 25% |
| Transmission type | Chain transmission |
| Dies dimension | Φ38*25 |
| Spool dia. | PND500-630 |
Yancheng AIJIN electrical machinery Co., Ltd adheres to the company spirit of "scientific and technological innovation, more professional and stronger" and strives to make the advanced, efficient and easy operation machines. "AIJIN"brand will become an international famous brand with the development of your enterprise!
