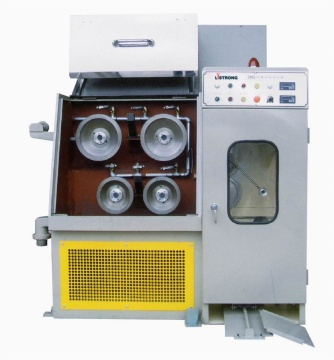

Machine type 22D 24D
Inlet dia. (mm) φ 0.6--φ 1.2 φ 0.5-φ 1.0
Outlet dia. (mm) φ 0.1--φ 0.32 φ 0.08-φ 0.25
Drawing line speed(MPM) 2500 2500
Drawing dies NO. 22 24
Slip ratio of m/c 15% 13%
Fix speed capstan dia. 8% 8%
Capstan Ceramic plasma or Tungsten Ceramic plasma or Tungsten
The dia. Of capstan (mm)/MAX φ 242 φ 242
Fix speed capstan dia. (mm) φ 207 φ 207
Frame Welded by steel plate Welded by steel plate
Main motor 11KW 3P 11KW 3P
Receiving motor 3.7KW 3P 3.7KW 3P
Revise system PID synchronous control spooler
Inverter control Dual Inverter control
Transmission type Flat belt
Traversing unit Flat belt +motor
Tension control Weight balance type
Lubrication type Spray type
Suitable spool(mm) φ 300 φ 300
Capacity of reveiving (kg) 50-60 50-60
Bobbin loading&unloading type Shaft type
Power source 380V
Brake Magnetic brake
Machine dimension(mm) 2050Lx1600Wx1900H
Machine weight 2500 2500
