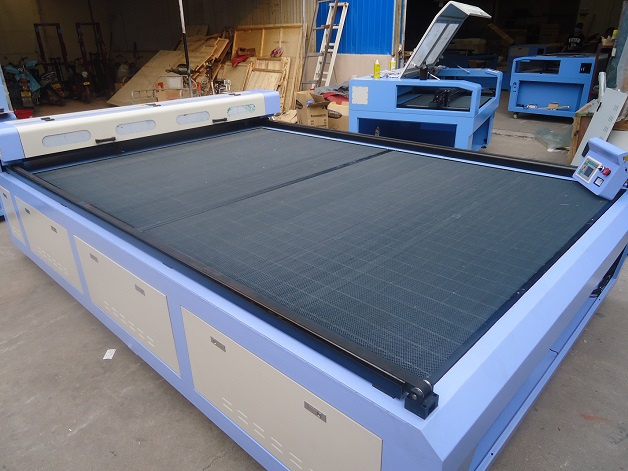

Wood Cutting Laser Engraver machineMarble laser engraving machine, Wood laser cutting machine, laser cutting machine, laser engraving machine, wood laser cutting machine, laser leather cutting machine, cnc laser cutting machine, fabric cutting machine, cloth cutting laser machine, laser cutter engraver.
Applicable industry:Label processing, Garment samping, Embroidery, advertising, decoration, arts and crafts, electronics,
Electric appliances, large format tailoring, mould industry, packing industry, etc.
Applicable Materials:Acrylic, wood planks, label, fabric, paper ware, bamboo ware, double color board, paper, leather, shell,
Coconut shell, ox horn, resin animal grease, ABS board, lamp shade, embroidery, leather, synthetic leather, canvas, artificial leather, glass, marble, crystal, etc.
Product features:1. Taiwan HIWIN linear guide and precision gear, matched with the advanced DSP Controller,
Also within stepper/servo motor to ensure the working accuracy.
2. This work table was large enough to bear, extra times were all saved.
3. That working table were all stainless steel material, easily operate and never fray.
4. Continuous & rapid curve cutting function; Selecting shortest path function.
5. USB Interface, with mass storage device; Improve working-speed & working efficiency.
6. LaserWork software compatibility with AutoCAD/Coredraw/Cam/Photoshop/Taijima designing program, output designs directly.
| Model | TZJD-2030L |
| Working area | 2000mm*3000mm |
| Laser power | RECI brand, 80w |

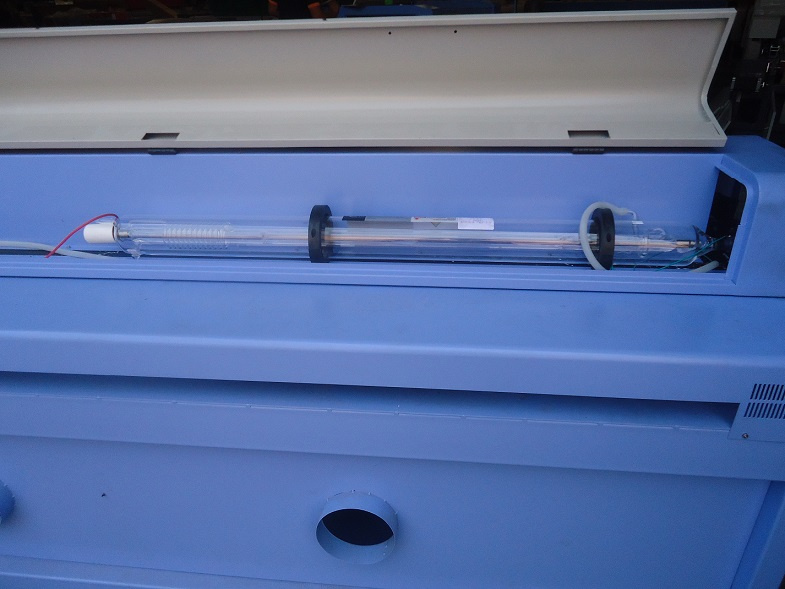

| Laser type | CO2 Sealed laser tube , 10.6μm, water-cooled |
| Cooling type | CW5200 Water chiller |
| Engraving speed | 0-75000mm/min |
| Cutting speed | 0-50000mm/min |
| Total power | 2KW/H |
| Laser output control | 0-100% set by software |
| Min. engraving size | Chinese: 1.5mm*1.5mm, English letter: 1.0mm*1.0mm |
| Highest scanning precision | 4000DPI |
| Locating accuracy | ≤+0.01mm |

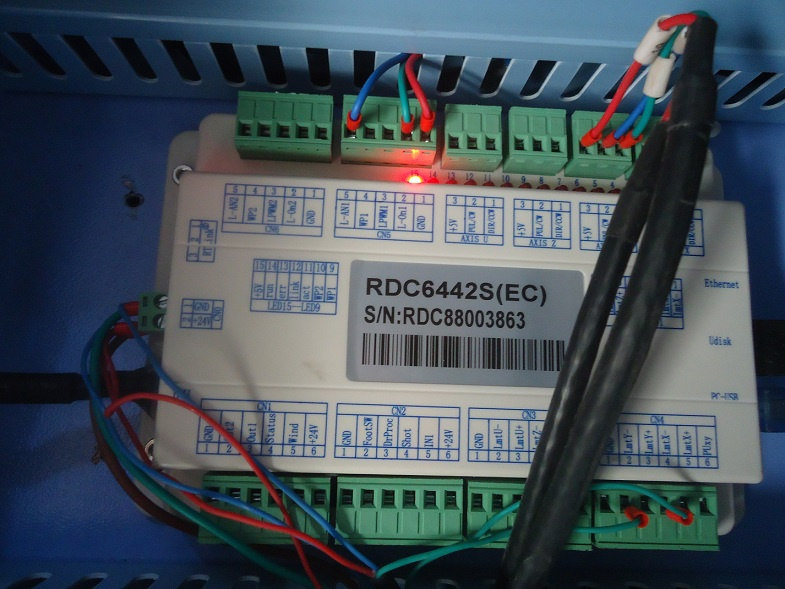

| Controlling software | DSP control system |
| Graphic format supported | DST PLT BMP DXF DWG AI LAS,etc |
| Compatible software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
| Color separation | Yes |
| Drive system | High-precision 3-phase stepper motor |
| Auxiliary equipments | Exhaust fan and air exhaust pipe; red-dot position system;
UP & DOWN working table; Auto-focus device;
one focus lens & three reflection mirrors on the machine;
air compressor system, etc. |
| Power supply | AC110V/AC220V±10%, 50HZ/60HZ |
| Software | LaserWork |
| Working environment | Temperature:0-45ºC, Humidity 5-95%(No condensate water) |
| Packing size | 3.4m*4.03m*1.4m |
| Net weight | 1450KG |
