138t CE Approved Hydraulic Injection Molding Machine Hi-G138

Name: 138t CE Approved Hydraulic Injection Molding Machine Hi-G138
Brand: themouldinfo
SKU: 621012654
Availability: InStock
Rating: 4.5 (34 reviews)

Price:	US $ 17800-19800/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Hisson Plastic Machinery Co., Limited

Showroom Product Company Profile

Prod Model:	HI-G138
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamping Force:	1380kn
Screw Dia.:	38/42/45mm
Shot Volume:	198/242/278cm3
Tie Bar Distance:	410*410
Type:	Injection Blow Molding
Structure:	Horizontal
Plastic Type:	Thermoplastic
Plasticizing Way:	Screw Type
Clamping Way:	Hydraulic & Mechanical
Automation:	Automatic
Computerized:	Computerized
Certification:	ISO9001:2008

Product Description

Application:	Home, Household, Industrial, Auto	Components:	Vickers, Schneider, Dofluid
Control Method:	Automatic, Fully-automatic	Feature:	Energy Saving
Material:	PE, PVC, Plastic, A.B.S	Mold Cavities:	10 Cavities, 12 Cavities, 4 Cavities, 6 Cavities, 8 Cavities
Product Name:	Injection Molding Machinery	Style:	Horizontal
Working Principle:	High Speed	Clamping Force:	138tons

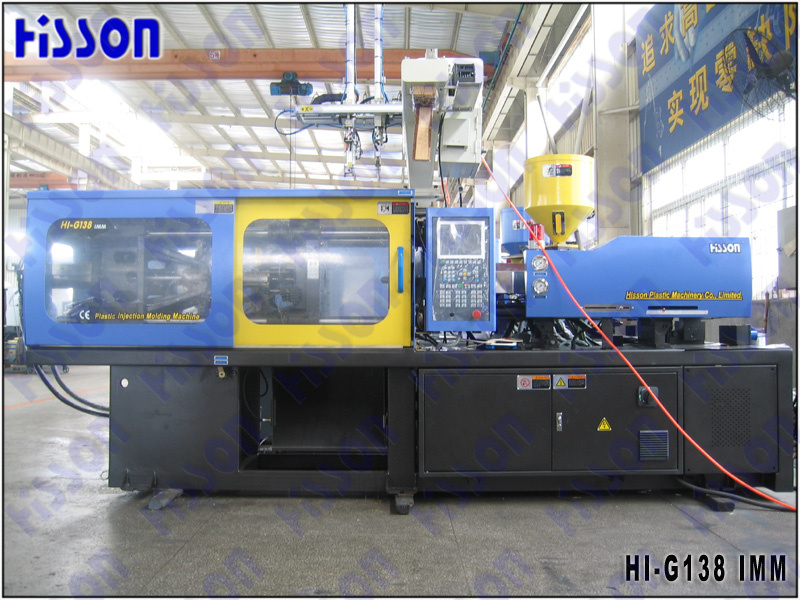

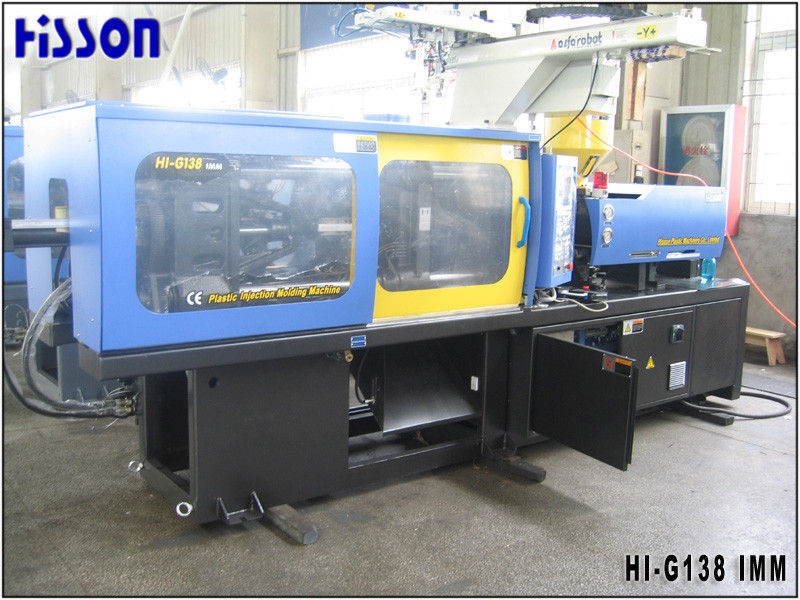

CE approved hydraulic injection molding machine

Quick Detail:

HI-G138 Hydraulic Injection Molding Machine is mainly used to produce small industrial parts, household appliances and other plastic products . It is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S. PVC etc. And it is with clamping force 138tons, there are three available screws, the corresponding real shot weight 145g, 180g, 215g.

Hydraulic Injection Molding Machine is composed of direction valve, proportional pressure valve, proportional direction valve, overfall valve, unilateral valve & pump, and hydraulic motor etc, these components compose the electric-hydraulic proportional loading feedback circuit, which is with fast respond, reliable running, stable action, energy saving, easy to operate, easy to maintain and other characteristics.

Description:

HI-G138 Hydraulic Injection Molding Machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.

Machine main components adopt world famous brand, e.g.:

Controller:TECHMATION (TAIWAN),
Low voltage contactor: SCHNEIDER(FRANCE),
Low voltage air switch: SCHNEIDER(FRANCE),
Proportional Valve: Dofluid HNC(TAIWAN)
Oil pump: VICKERS(USA)
Directional Valve: VICKERS(USA)
Induction travel switch: OMORON (JAPAN)
Inductor potentiometer: FORT(USA)

Competitive Advantage:

1. The machine equipped with hydraulic protection

2. The machine equipped with double Hydraulic pulling device

3. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.

4. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.

5. Heaters adopt ceramic, the using life is double than stainless steel.

6. The machine equipped with double Air Ejector

7. The machine equipped with single slots on the mold plates

HI-G138 Technical Parameters

HI-G138			Optional Parameters
TECHNICAL PARAMETER TABLE		Unit	A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	38	42	45
	SCREW L/D RATIO	L/D	23.1	20.9	19.5
	SHOT VOLUME(THEORETICAL)	cm³	198	242	278
	INJECTION WEIGHT(PS)	g	180	220	253
	INJECTION RATE	g/s	97	118	135
	PLASTICIZING CAPACITY	g/d	17	21	23
	INJECTION PRESSURE	Mpa	217	178	155
	SCREW SPEED	rpm	0-200
CLAMPING UNIT	CLAMP TONNAGE	kN	1380

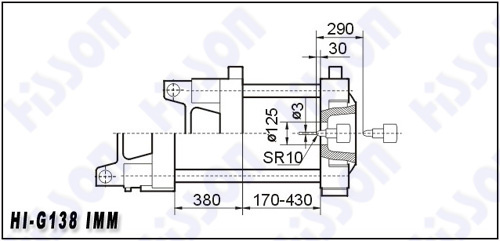

	TOGGLE STROKE	mm	380

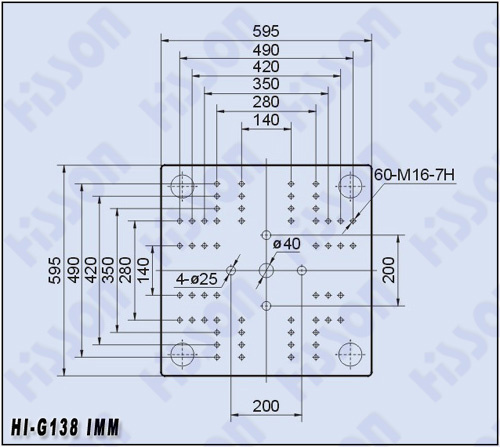

	SPACE BETWEEN TIE BARS	mm	410×410
	MAX.MOULD HEIGHT	mm	430
	MIN.MOULD HEIGHT	mm	170
	EJECTOR STROKE	mm	115
	EJECTOR TONNAGE	kN	40
	EJECTOR NUMBER	Piece	5
OTHERS	Max.PUMP PRESSURE	Mpa	16
	PUMP MOTOR POWER	KW	13
	HEATING POWER	KW	7.2
	MACHINE DIMENSION(L×W×H)	m	4.7×1.3×1.8
	MACHINE WEIGHT	T	4.6
	HOPPER CAPACITY	kg	25
	OIL TANK CAPACITY	L	230

Hisson Plastic Machinery Co., Limited was founded in 1996, which located in Ningbo, a harbor city of eastern China.

We supply high quality plastic injection molding machine, PET bottle blow molding machine, extrusion blow molding machine and various kinds of plastic molds.

Our injection molding machines are exporting to many countries include European countries, Australia, Middle East, Afraica etc., now energy saving is popular, more than 60% of the machines we made are servo motor machines.

In PET bottle field, we have abundant experience, we have special PET preform injection molding machine, PET preform injection mold, semiauto and automatic PET bottle stretch blow molding machine and blow molds, we have 2-cavity, 4-cavity and 6-cavity automatic PET bottle blow molding machine. We provide 2D and 3D design service for PET preforms and PET bottles, according to samples, design draft or only idea.

We serve for all clients include agents and final users, we provide Turkey solution of complete production line, the auxiliary equipment we choose are from top grade manufacturers.
