Screw Injection Machine:
Plastics Processing Machine
Type:
Injection Blow Molding
Automation:
Automatic
Structure:
Horizontal
Computerized:
Computerized
Plastic Type:
Thermoplastic
Plasticizing Way:
Screw Type
Clamping Way:
Hydraulic & Mechanical
Certification:
CE
Product Description

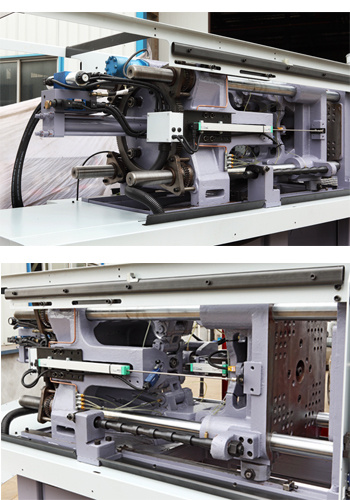

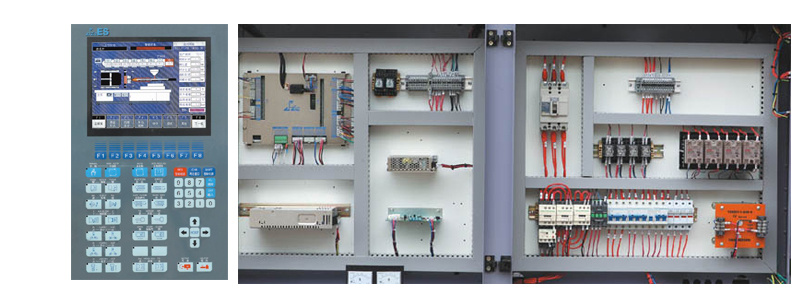

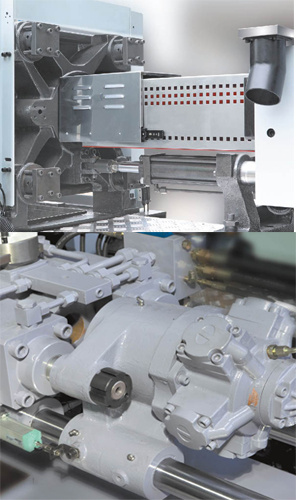

Clamping unit 5-point double toggle clamping system Mechanical &electrical safety devices Low pressure moule protection Controllable multi_stage mold open/close position,pressure&speed Fast moule clamping with differential device Robust casting construcition with strengthened tie bar for maximum service life and best molding results Automatic mould height adjustement Variable mokes of djector movement Automatic central lubrication Injection unit Double drive cylinder injection system with symmetrical oil circuit Controllable multi-stage injection pressure,speed and position Controllable multi-stage dwell pressure,speed and time Controllable multi-stage charging speed ,position and time PID barrel temperature control Screw plasticizing back pressure control Suck back function Plasticizing cold start prevention Screw speed inspection Self purging function Efficient plasticizing device with strong torque hydraulic motor Control System Japanese controller with 10 inch LED color screen. Mold data storage Linear transducer forclamping/injection/ejection control English ,Spanish,Portuguese,Russsian,Arabic and other language options Hydraulic system Efficient and sound reduced hydraulic sustem Weldless oil circuit Hydtaulic proportional control Hydraulic elements by well-known brand with high reliability and long service life Oil temperature alarm
YH170
INJECTION UNIT
T
A
B
C
Sxrew diameter mm
36
4
45
48
Screw stroke mm
225
225
225
225
Screw L:D L/D
24
22.5
20
18.5
Shot volume cm3
229
283
358
407
shot weight Ps g
206
254
322
366
injection pressure Mpa
267
216
171
150
dwell pressure kgf/cm2
2720
2203
1741
1530
injection speed mm/sec
110
110
110
110
injection rate cm3/sec
111.9
138.2
174.9
199.0
screw rotate speed rpm
230
230
230
230
nozzle sealing force KN
46.6
nozzle advancestroke mm
30
heater power KW
10.24
CLAMPING UNIT
clamp force KN
1700
toggle steoke mm
435
space between tie bars mm
470×470
max.mould height mm
500
min.mould height mm
180
ejector number pc
5
ejector force KN
50.9
ejector stroke mm
130
OTHERS
specialpump pressure Mpa
21
standrd pump pressure Mpa
18
machine dimensions(L×W×H)m
5.0×1.11×1.78
Machine weight T
5
oil tank capacity L
250
pump motor power KW
15
Building long-term customer relationship and pursuing technology innovation have been the foundation of FL Machinery.
In FL Machinery, we have full understanding of customer demands in a changing technology environment.
Our engineers are always striving for providing our customers the solutions that they need to stay ahead of the competition.
FL machinery assures product quality by using of high quality components from Europe, the USA, Japan, and Taiwan. By applying advanced 3-D software design, our engineers have come up with innovative and advanced machines that integrate the latest mechanical, electrical and hydraulic technologies into one machine, to produce very efficient and low maintenance plastic machines.
FL Machinery is of the best quality, with characteristic high rigidity, strong mould locking force and high injection pressure as well as high precision. Our machine is well known among customers by their durability, low energy consumption and reliability.
We FL Machinery welcome you and your valuable suggestions for our continuous improvement and sustainability.
Building long-term customer relationship and pursuing technology innovation have been the foundation of FL Machinery.
In FL Machinery, we have full understanding of customer demands in a changing technology environment.
Our engineers are always striving for providing our customers the solutions that they need to stay ahead of the competition.
FL machinery assures product quality by using of high quality components from Europe, the USA, Japan, and Taiwan. By applying advanced 3-D software design, our engineers have come up with innovative and advanced machines that integrate the latest mechanical, electrical and hydraulic technologies into one machine, to produce very efficient and low maintenance plastic machines.
FL Machinery is of the best quality, with characteristic high rigidity, strong mould locking force and high injection pressure as well as high precision. Our machine is well known among customers by their durability, low energy consumption and reliability.
We FL Machinery welcome you and your valuable suggestions for our continuous improvement and sustainability.
Hydraulic system
