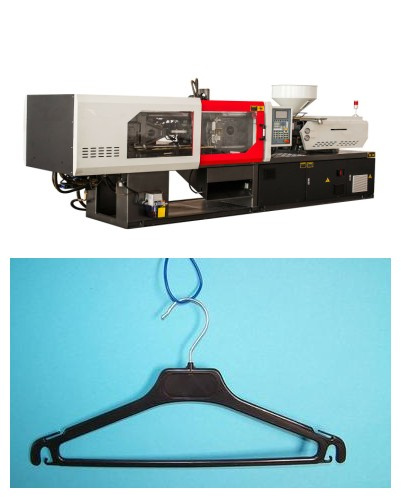

260 Ton Plastic Hanger Injection Molding Plastic Machine

260 Ton Plastic Hanger Injection Molding Plastic Machine
Price: US $ 28600/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: WMK-260
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamp Force: 2600kn
Pump Motor Powder: 22kw
Machine Weight: 7.1t
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic
Clamping Way: Hydraulic & Mechanical
Certification: ISO9001:2008
Type: Injection Molding

Product Description

260 Ton Plastic Injection Molding Machine

We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T, injection weight from 50 to 10000g. With best price/ performance ration of any machine on the market.

Some of the important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation, molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: On time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time: 30-60 days
Port of dispatch: Shanghai



INJECTION UNIT
  Unit WMK-260
A B C
Screw Diameter Mm 50 55 60
Screw L/D Ratio L/D 24 21.8 20
Short Size Cm3 557 676 802
Injection weight G 507 610 730
Injection Rate g/s 121 146 174
Plasticizing capacity g/s 32 42 49
Injection Pressure Mpa 223 184 155
Screw Speed Rpm 0-190




CLAMPING UNIT
Clamp Force KN 2600
Space Between Tie Bars mm 560*530
Toggle Stroke mm 505
Max. Mold Height mm 560
Min. Mold Height mm 200
Ejector Stroke mm 150
Ejector Tonnage KN 62
Ejector Number P 9


OTHERS
Max. pump Pressure Mpa 16
Pump motor powder Kw 22
Heater Power Kw 16
Machine Dimension(L*W*H) M 5.3*1.5*1.95
Oil Tank Capacity L 400
Machine Weight T 7.1

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
