Type:
Extrusion Blow Molding Machine
Raw Material:
PE
Making Method Of Parison:
Extrusion-Blow Molding
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Product Description

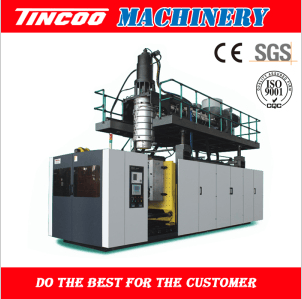

The 25-160L drums, tool boxes and auto parts series consists of DHB80,DHB90,DHB100 and DHB110 etc., which can be used for producing drums, tool boxes and hollow parts of all kinds. Materials of PE, PP, and ABS can be used. Maximum capacity of accumulator head can be 12L while volume of products can be 160L. Its control system adopts closed loop control imported from Europe and hydraulic system is pressure-flow double proportional control equipped with variable plunger pump to ensure fast and smooth operation of the machine and energy consumption of the hydraulic system can be reduced by 30% or above, saving considerable electricity. Features: 1.This series adopts new patent of two pull-rod type closing-mold device; double-folding accumulator head;extrusion device and product taking-out device, and entirely achieves full automatic production. 2.The electrical control system adopts Complete computer control to automatically conduct to automically conduct technical parameter optimization and trouble diagnosis with high control precision and good reliability. 3.This series,completely designed and manufactured according to German standards of same model is the model with ration of performance to price at present. Advanced processing equipment: Introducing advanced technology form Germany,Italy,Japan etc. Involving advanced design and production of super large-scale blow-molding machine and engineering management capability. Holding over 40 items Patent Technologies. After sales service: With good brand reputation and attitude of customer-centric, we invite special technologists responsible for after sales. Service hotline is 24-hour on call. Fast response: domestic call is handled within 12 hours. International call is handled within 20 hours.
Specification
DHB80
DHB90
DHB100
DHB110
Material
PE,PP
PE,PP
PE,PP
PE,PP
Max.container capacity
L
25
50
120
160
Number of die
set
1
1
1
1
Output (dry cycle)
pcs/hr
500
400
360
300
Machine Dimension
m
4.2×2.3×3.6
4.6×2.5×3.8
5.8×2.5×4.6
6.0×2.9×4.8
Total weight
ton
12
13.8
18
20
Accumulator head
DHB80
DHB90
DHB100
DHB110
Accumulator capacity
L
5
6.6
12
16
Power of die heating
KW
18
22
25
30
Number of heating zone
zone
4
4
4
5
Die diameter
mm
300
350
450
510
Injection pressure
Mpa
8
8
8
8
Max.injection speed
Kg/sec
1.5
1.5
1.5
1.5
Clamping Unit
DHB80
DHB90
DHB100
DHB110
Clamping force
KN
210
350
500
720
platen opening stroke
mm
350-800
400-1000
500-1200
500-1500
platen size
mm
740×600
880×780
1020×1060
1300×1300
Max mould size
mm
560×630
700×960
800×1260
900×1400
Mould thickness
mm
360-420
450-510
510-650
510-700
Extruder Unit
DHB80
DHB90
DHB100
DHB110
Screw diameter
mm
80
90
100
110
Screw L/D ratio
L/D
25:1
25:1
25:1
25:1
Extruding Volume
Kg/hr
100-120
120-200
180-270
200-280
Screw rotation rate
r/min
10-86
10-86
10-86
10-86
Extruder heating power
KW
20.2
21.6
26
28
Extruder driving power
KW
30-37
37-45
45-55
55-75
Power Consumption
DHB80
DHB90
DHB100
DHB110
Oil pump power
KW
22
30
37
37
Servo motor power
KW
4
4
4
4
General assembly power
KW
94.2,101.2
114.6,122.6
137,147
154,174
Average energy consumption
KW
38,42
47,50
55,60
65,75
Air pressure
Mpa
0.7
0.7
0.7
0.7
Air consumption
m³/min
0.6
0.8
0.8
1.0
Cooling water consumption
m³/min
0.4
0.5
0.6
0.6

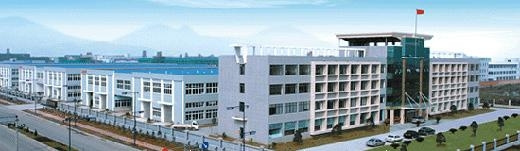

Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.
Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.
Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.
Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.
Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
The 25-160L drums, tool boxes and auto parts series consists of DHB80,DHB90,DHB100 and DHB110 etc., which can be used for producing drums, tool boxes and hollow parts of all kinds. Materials of PE, PP, and ABS can be used. Maximum capacity of accumulator head can be 12L while volume of products can be 160L. Its control system adopts closed loop control imported from Europe and hydraulic system is pressure-flow double proportional control equipped with variable plunger pump to ensure fast and smooth operation of the machine and energy consumption of the hydraulic system can be reduced by 30% or above, saving considerable electricity.
