Type:
Extrusion Blow Molding Machine
Raw Material:
PE
Making Method Of Parison:
Extrusion-Blow Molding
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Product Description

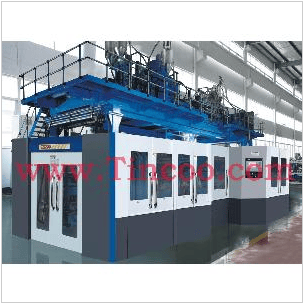

Six and seven layers extrusion blow molding machine DHB-M120, DHB-M280. The extrusion system of six to seven layers co-extrusion blow molding machine consists of 6-7 sets of extrusion and composition, machine parts and screws adopt high quality nitride alloy steel, have high surface hardness, long service life and good quality of plasticizing, which is suitable for processing high molecular weight polyethylene.
EXTRUDER
DHB-M120
NO
/
A
B
C
D
E
F
G
Screw Diameter
mm
100
100
70
40
40
50
50
L/D ratio
/
36
30
25
25
25
25
25
Screw speed
r/min
0-62
0-62
0-70
0-88
0-88
0-78
0-80
Plasticising capacity
kg/h
255
180
100
13
13
25
30
Driver Power
kw
75
75
30
11
11
15
18
MOULDING UNITE
Mold clamping force(KN)
Platen dimension(WxH)(mm)
Distance between platens(mm)
Max.mold dimension(WxHxT)(mm)
1200
1600x1500
800-2000
1600x1900x1000
CO-EXTRUDING HEAD
Layers of melt material(mm)
Die dimension(mm)
Heating power(kw)
Heating zones
6
200-600
68
15
BLOW UNIT
Extension stroke(mm)
Expansion stroke(mm)
250
2x320
(Adujustable)
OTHERS
Capacity of total power
480KW
Average energy consumption
≈220kw
Discharge of compressed air
120-150m/h 3 (1.0MPa)
Cooling water consumption
40-50m/h 3 (0.3MPa,20c)
Total weight
≈68T
Overall dimension (LxWxH)
1450cmx1100cmx700cm
WALL THICKNESS SECTION OF PRODUCTS
Inner new materal layer(A)
Sticking layer(D)
Blockading layer(F)
Sticking layer(E)
Recycling layer(B)
Outer new matrial layer(C)
Inner condlayer(G)
25%-35%
2%
3%
2%
35%-45%
15%-20%
10%

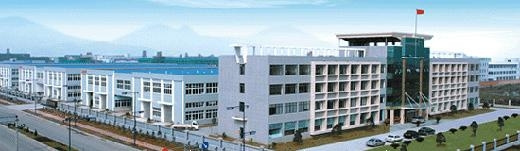

Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.
Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.
Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
