Type:
Extrusion Blow Molding Machine
Raw Material:
PE
Making Method Of Parison:
Extrusion-Blow Molding
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Product Description

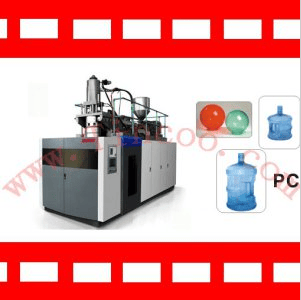

DHB-82PC machine are composed by clamping structure,die head ,extrusion system,hydraulic system,Frame,bottom blow device,electric system,parison controller and so on.and the take out products device can be chosen by customer. Specially for 3 gallon and 5 gallon water barrel and lamp cover with PC Material. Introducing advanced technology form Germany,Italy,Japan etc. Setting: Clamping----------Double station+Hight-precision guide+large arm cylinder axle Extrusion system--Hard gear surface reducer+Japan inverter Die system--------Central-incoming extrusion die with special steel Hydraulic system--Japan hydraulic valve seal and proportional control Control system----Japan PLC+Imported HMI+PLC automatic
Specification
DHB-82PC
Material
PC
Max.container capacity
L
25
Number of die
set
1
Output
pcs/hr
500
Machine Dimension
m
6.5×2.6×4.7
Total weight
ton
12
Accumulator head
DHB-82PC
Number of die heating
zone
4
Power of die heating
KW
8
Max die-pin diameter
mm
150
Accumulator capacity
L
1.8
General dimension
m
1.2×0.5×0.42
Clamping Unit
DHB-82PC
Clamping force
KN
220
platen opening stroke
mm
350-800
platen size
mm
740×630
Max mould size
mm
550×660
Mould thickness
mm
360-420
Extruder Unit
DHB-82PC
Screw diameter
mm
82
Screw L/D ratio
L/D
38:1
Extruding Volume
Kg/hr
150
Number of heating zone
zone
8
Extruder heating power
KW
20
Extruder driving power
KW
34
Power
DHB-82PC
Oil pump drive power
KW
45
Fan power for screw
KW
0.9
Total power
KW
90
Air pressure
Mpa
1.2
Air consumption
m3/min
1.0
Average energy consumption
KW
42

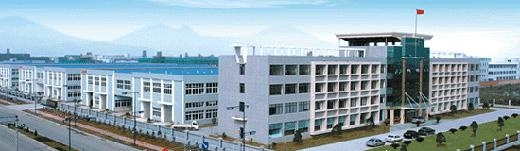

Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.
Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.
Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.
Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.
Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
DHB-82PC machine are composed by clamping structure,die head ,extrusion system,hydraulic system,Frame,bottom blow device,electric system,parison controller and so on.and the take out products device can be chosen by customer.
