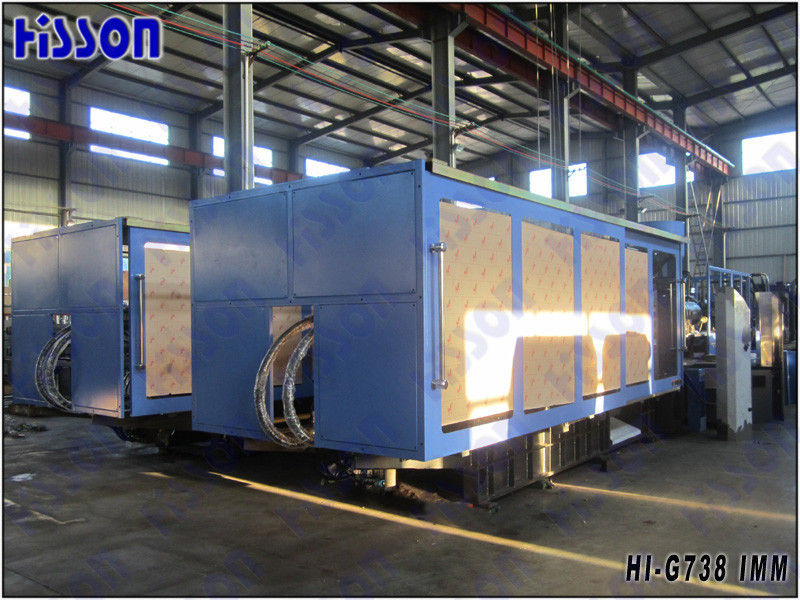

738t Plastic Injection Molding Machine Hi-G738

738t Plastic Injection Molding Machine Hi-G738
Price: US $ 100000-105000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: HI-G738
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamping Force: 7380kn
Screw Dia.: 90/95/105mm
Shot Volume: 2861/3188/3894cm3
Tie Bar Distance: 950*950mm
Type: Injection Blow Molding
Structure: Horizontal
Plastic Type: Thermoplastic
Plasticizing Way: Screw Type
Clamping Way: Hydraulic & Mechanical
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008

Product Description

Detailed Product Description


Style:HorizontalApplication:Home, Household, Industrial
Components:Techmation, Schneider, VickersControl Method:Automatic, Auto, Fully-automatic
Material:PE, PVC, A.B.SMold Cavities:8 Cavities, 10 Cavities, 12 Cavities, 6 Cavities, 4 Cavities
Working Principle:High Speed, HydraulicClamping Force:738 Tons

 PE Home Plastic Injection Molding Machine With Schneider Contactor

 Quick Detail:


HI-G738 Plastic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S. PVC etc., this machine is with clamping force 738tons, there are three available screws, the corresponding real shot weight 2210g, 2460g, 3010g. This machine is mainly used to produce middle&big industrial parts, household appliances and other plastic products.


 Description:


HI-G738 Plastic Injection Molding Machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.

Machine main components adopt world famous brand, e.g.:
? Controller:TECHMATION (TAIWAN),
? Low voltage contactor: SCHNEIDER(FRANCE),
? Low voltage air switch: SCHNEIDER(FRANCE),
? Proportional Valve: Dofluid HNC(TAIWAN)
? Oil pump: VICKERS(USA)
? Directional Valve: VICKERS(USA)
? Induction travel switch: OMORON (JAPAN)
? Inductor potentiometer: FORT(USA)


Specifications:


HI-G738 Technical Parameters



HI-G738

Optional Parameters

TECHNICAL PARAMETER TABLE

Unit

A

B

C

INJECTION
UNIT

SCREW DIAMETER

mm

90

95

105

SCREW L/D RATIO

L/D

23.2

22

19.9

SHOT VOLUME(THEORETICAL)

cm3

2861

3188

3894

INJECTION WEIGHT(PS)

g

2603

2901

3543

INJECTION PRESSURE

Mpa

195

175

143

INJECTION RATE

g/s

560

610

700

PLASTICIZING CAPACITY

g/s

85

100

110

SCREW SPEED

rpm

0-130

CLAMPING
UNIT

CLAMP FORCE

kN

7380

OPEN STROKE

mm

950

MAX.MOULD HEIGHT

mm

960

MIN.MOULD HEIGHT

mm

400

SPACE BETWEEN TIE BARS

mm

950×950 (W×H)

EJECTOR FORCE

KN

200

EJECTOR STROKE

mm

280

GENEREL

EJECTOR NUMBER

n

17

PUMP PRESSURE

KW

16

PUMP MOTOR POWER

KW

30+37

HEATING POWER

KW

46.45

MACHINE DIMENSION

m

10.1×2.6×2.8(L×W×H)

MACHINE WEIGHT

T

38

Hopper Capacity

L

100

Oil Tank Capacity

L

1500



Applications:


HI-G738 Plastic Injection Molding Machine is for middle &big industrial parts, household appliances and other plastic products, material PC, PP, PE, Nylon, A.B.S. PVC etc., suitable plastic products weight 20g-3010g, mold cavity can be:   1 Cavity, 2 Cavities, 3 Cavities, 4 Cavities, 6 Cavities, 8 Cavities, 10 Cavities, 12 Cavities, 16 Cavities, 24 Cavities, 32 Cavities,48 Cavities,72 Cavities


Competitive Advantage:


1. Heaters adopt ceramic, the using life is double than stainless steel.
2. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.
3. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.
4. The machine equipped with hydraulic protection
5. The machine equipped with double Hydraulic pulling device
6. The machine equipped with double Air Ejector
7. The machine equipped with single slots on the mold plates
