Apply To:
Metal Wire
Brand:
Fr
Inlet Diameter:
8.0mm
Otlet Diameter:
2.0-3.5mm
Block Number:
7PCS
Coilling Block:
600mm
Speed:
200m/Min
Average Compressibility:
25%
Total Compressibility:
88%
Motor Power:
7 Sets, 22kw, 18.5kw, 15kw, 11kw, 7.5kw
Type:
LW Pulley Type Metal Drawing Machine
Usage:
Prestressed Steel Wire
Metal Material:
Aluminum Cald Steel Wire
Outlet Diameter:
2.0-3.5mm
Max.Inlet Wire Dia.:
8.0mm
Max. Number Of Block:
7 Times
Product Description

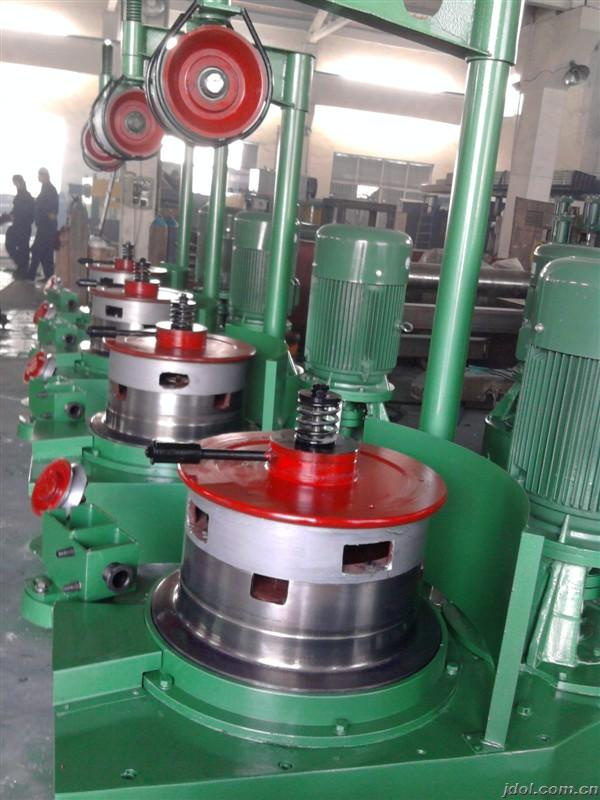

Aluminum Cald Steel Wire Drawing Machine (FR-600)
As wire drawing, reduces the diameter of the wire, wire can be reduced diameter by the drawing die.
Aluminum Cald Steel Wire Drawing Machine is suitable for (bronze. Stainless steel. Iron. Silver. Aluminum) wire material.
Aluminum Cald Steel Wire Drawing Machine is suitable for the ferrous metal wire and non-ferrous wire, it can drawing the thin wire, which is the professional equipment for drawing wire.
Advantage of Aluminum Cald Steel Wire Drawing Machine 1. Lower noise and durable 2. High speed 3. Good quality, best service
Technical parameter of Aluminum Cald Steel Wire Drawing Machine
1
Apply to
Metal wire
2
Inlet diameter
Φ8.0mm
3
Otlet diameter
Φ2.0-3.5mm
4
Block number
7 pcs
5
Block diameter
600mm
6
No.1 motor
22kw
7
No.2 motor
22kw
8
No.3 motor
18.5kw
9
No.4 motor
15kw
10
No.5 motor
15kw
11
No.6 motor
11kw
12
No.7 motor
7.5kw
13
Total compressibility
88%
14
Average compressibility
25%
15
Voltage
380V 50Hz
16
Dimension *1pc
2660*1350*1800mm
17
Weight(reference)*1pc
2.0T
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
