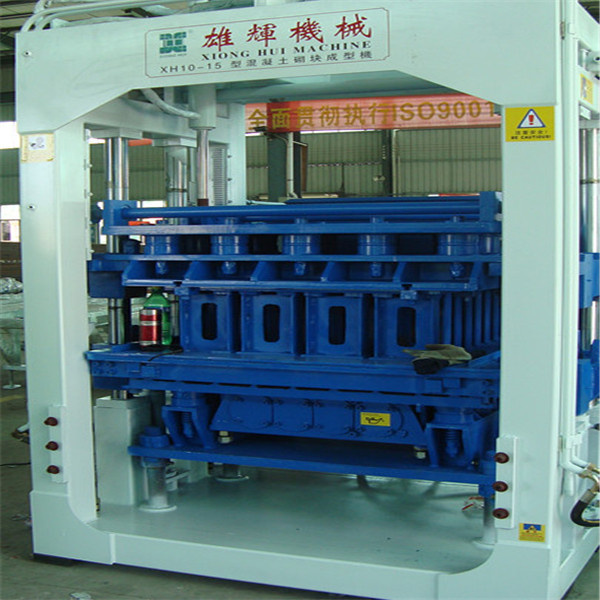

XH10-15 fully automatic concrete block machine
1. Produce all kinds of bricks
2. PLC Automatic Control System
3. Short Mold Cycling
4. High Output
5. Easy and safety operation
6. Good price
XH10-15 automatic block-brick production line
The equipment details:
XH10-15 block machine is suitable to make road blocks, road-side bricks and river bricks. Adopting sub-storage device and independent storage hopper, this machine can overcome the liquefaction of concrete defects in advance, and ensure the quality of the finial products. It can automatically operate the whole set, from material feeding to finish products output.
Features & Advantages of XH10-15 block machine:
1. Adopting strong steel, super-strength design and special welding techniques, this machine features of high-rigid, resistant to vibration and long service life.
2. Adopting four-oriented approach to ensure the pressure head and mold box move exactly with good stability. With the replacement of various models, it can produce kinds of bricks to meet different requirement of clients.
3. The host machine adopts hydraulic rotational molding and vibration compression molding. Molding cycle takes 15-20 seconds to leave the floor for forming health.
4. XH10-15 block making machine is equipped with a multi-fabric mixing fork to mould box evenly.
Specification&capacity of main products |
Items |
Size(L*W*H) |
Pcs/mould |
Pcs/hour |
Pcs/8hour |
one year(300days) production |
Hollow blocks |
390*190*190mm |
10 |
2400 |
19200 |
5760000 |
Perforated blocks |
240*115*90mm |
24 |
5760 |
46080 |
13824000 |
Solid bricks |
240*115*50mm |
52 |
12480 |
99840 |
29952000 |
Color bricks |
200*100*60mm |
28 |
6720 |
53760 |
16128000 |
Technical parameter |
Max. Dimension |
12800×3000×2800mm |
Rated pressure |
21MPa |
Main vibration type |
Table vibration |
Vibration frequency |
2800_4500times/min |
Pallet size |
1080×850mm |
Forming cycle |
15_25sec |
Total Power |
34.5kw |
Weight |
13800kg |
