Product Description

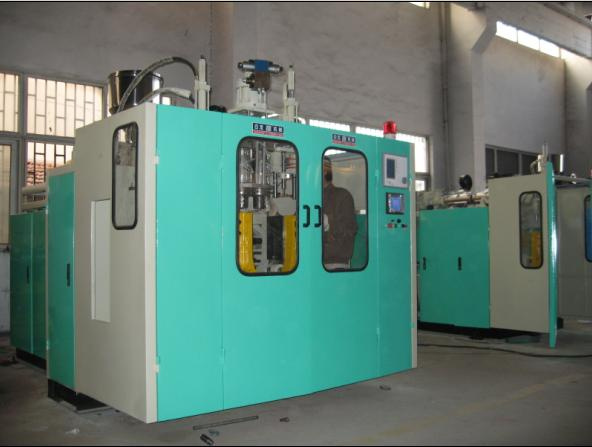

Our BLB55D Blow Molding Machine
Apply material: PE, PP, PVC, (General die head ) etc.
Product capacity: 3.5 L (max)
Power of main motor: 15kw;
Productivity: (dry circle) 480pc/h
Installation capacity: ( Max) 23kw, average energy consumption 14.8kw.
Screw type: Isometry, unequal depth, mixing gradual change screw,
Screw diameter: 55mm, Screw L/D: 24/1
Plasticizing ability: 56Kg/hr (HDPE).
Cooling way: Automatic air-cooling, 3 blowers;
Japan Mitsubishi PLC + human-computer interface (Chinese or English interface), touching screen operation,
Realizing the dialog between human and machine, import components.
Production process of settingchangingsearchingtrouble diagnoses can realize easily in the touching screen.
Blow Molding Machine, bottle blow machine, plastic machine.
We are professional manufacture the blow molding machine over 14 years experiences, also we can design according to client requirement, and save cost, we ensure can supply high quality but lowest price and good after-service. Hope can cooperation with you, and create beautiful furture together.
We are professional manufacture the blow molding machine over 14 years experiences, also we can design according to client requirement, and save cost, we ensure can supply high quality but lowest price and good after-service. Hope can cooperation with you, and create beautiful furture together.
