Product Material:
Plastic
Shaping Mode:
Blowing Mould
Product:
Blow
Product Description

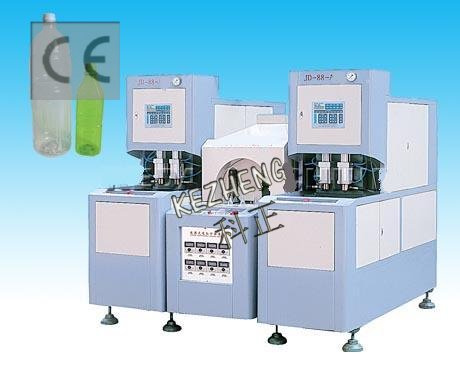

This JD-88-A1 two step heat-resistant(90 degree) semi-automatic bottle blowing machine is used to produce containers which the materials is PET, PMMA, PS and so on.
S/N
Item
Unit
Technical Data
1
Raw material
PET/PMMA/PS/PP
2
Working Pressure(Air)
Mpa
(0.8-1.2)x2
3
Blowing pressure
Mpa
(1.0-3.0)x2
4
Voltage/Frequency
V/HZ
220V/380/50HZ.60HZ
5
Rated power
Heater
KW
(220V)x10
Air Compressor
15(380V)
6
Max mould effective
dimension(LxWxH)
mm
350x350x250
7
Mould opening stroke
mm
170
8
Max mould thickness
mm
250
9
Center distance between two cavities
mm
80-200(Adjustable)
10
Volume of product
ml
10-2000
11
Max stretch length
mm
400
12
Clamping force
KN
60x2
13
Capacity
Pcs/H
1600-2000
14
Machine Dimension
Main machine
mm
1600x600x1500
Heater
2000x600x1500
15
Machine weight
Main machine
Kg
500x2
Heater
250
16
Air Compressor
Dimension(LxWxH)
mm
1800x800x1220
Weight
Kg
480
17
Air Filter
Dimension(LxWxH)
mm
(250x250x600)x2
Weight
Kg
25x2
18
Frezzed Dryer
Dimension(LxWxH)
mm
890xx550x1000
Weight
Kg
200
19
Temperature range
15-110(PET)
15-180(PMMA.PS.PP)
