Product Description

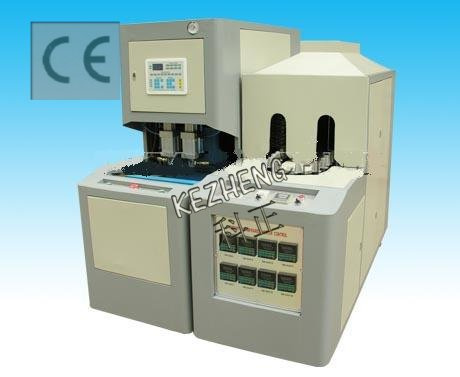

JD88-A Two step semi-automatic heat-resistant bottle blowing machine is used to blow the plastic container within 2L.
Semi automatic bottle blowing machine is the one controlled by the computer with rotary infrared oven heating...This series bottle blowing machine is specializes in the production of blowing the plastic container(PET/PMMA/PS/PP) within 2L which is heat-resistance and superior difficulty.
It has the higher air pressure, big claimping force, small size. Low energy consumption rate, easy to operate and so on.
S/N
Item
Unit
Technical Data
1
Raw material
PET/PMMA/PS/PP
2
Working Pressure(Air)
Mpa
0.7-0.9
3
Blowing pressure
Mpa
0.9-3.0
4
Voltage/Frequency
V/HZ
220V/380/50HZ.60HZ
5
Rated power
Heater
Kw
4(220V)
Air Compressor
Kw
11(380V)
6
Max mould effective
dimension(LxWxH)
mm
335x335x220
7
Mould opening stroke
mm
170
8
Max mould thickness
mm
250
9
Center distance between two cavities
mm
80-240
10
Volume of product
ml
10-2000
11
Max stretch length
mm
400
12
Clamping force
KN
50
13
Capacity
Pcs/H
400-900
14
Machine Dimension
Main machine
mm
1600x600x1500
Heater
1750x600x1450
15
Machine weight
Main machine
Kg
500
Heater
200
16
Air Compressor
Dimension(LxWxH)
mm
1700x670x1220
Weight
Kg
410
17
Air Filter
Dimension(LxWxH)
mm
250x250x600
Weight
Kg
15x2Pcs
18
Frezzed Dryer
Dimension(LxWxH)
mm
890xx550x1000
Weight
Kg
175
19
Temperature range
15-110(PET)
15-180(PMMA.PS.PP)
