| Prod Model: |
PL-22DT |
| Markets: |
Africa,Mid East,Western Europe |
| Type: |
LT Water Tank Type Metal Drawing Machine |
| Usage: |
Wire |

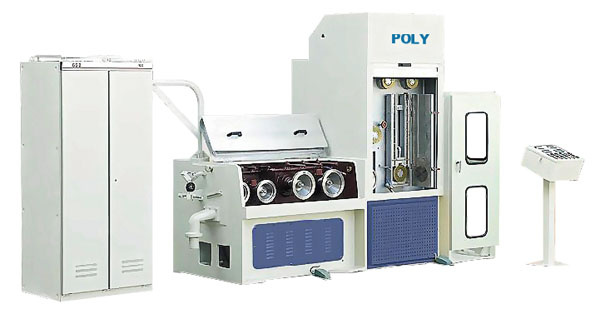

Product Description
High- speed fine drawing machine with continuous annealer
Main Specification:
1. Fine drawing machine: Horizontal type with four cone capstan.
2. Inlet wire dia: Ø 0.8mm ~ 1.2mm (cooper wire)
3. Outlet wire dia: Oslash; 0.08mm ~ 0.32 mm
4. Area reduction: 13 % (die reduction: 14.5% average)
5. No. Of dies: 24 (outer diameter of die: Oslash; 25*8mm)
6. Speed of drawing: Max, 2000 M / min (step less speed change)
Ø 0.08 mm ~ 0.2 mm 1800 M / min
Ø 0.2 mm ~ 0.30 mm 1500M / min
6.Line speed PID control, fully synchronization of speed and capstan rotation.
7. Lubrication for drawing: Shower type.
1). Lubricant circulation system with pump.
8. Drawing capstan:
1) 4 capstan material tungsten carbide costing rings insert type with hardness of HS-90 degree.
2) each capstan has 11 grooves. Max. OD 190.2mm.
9. Brake device: Pneumatic brake (set up in spooler)
10. Auto stop system: Stop when wire breaks / stop when full-load
11. Inching operation: Running board with foot type inching padel. (when wire-feed process)
12. Operating motor: Drawing main body: AC 3Ø 380V 50Hz 20HP.
Annealer:
13. Annealer transformer: 6kHz 1070V 20kVA 200A Max.
14. Annealer capstan material: Nickel alloy, ODØ 160mm. 4 set.
15. Transmit center axle: Pre-hearting phase + annealer phase+ dry phase
15. 1) Dry phase transformer: 6kHz 0-40V, 10kVA 100A max...
16. Control system:
1) automatically traces the line-speed,
2) special frequency conversion + high-frequency transformer + high-frenquency commutator.
3) digital high-frenquency voltage meter and current meter
17. Cooling system: High-pressure pump cycling, separating tanks and easy to clean
18. Dewater device: Desiged especially with strong high-pressure, great wind-quantity and low noise Take-up:
19. Take up spool capacity: 40 kg, 50kg, these two types can be used
20. Size of take up bobbin: (unit-m/m)
Outer dia inside dia bobbin aperture Traverse width
40 kg Ø 300 Ø 217 Ø 127 270
50 kg Ø 305 Ø 217 Ø 127 270
21. Sustaining way of bobbin: Cantilever/inflated way to fix the bobbin
22. Take-up motor: AC 3Ø 380V 50Hz 7.5HP
1). Traverser device: Motor with screw drives reversely and obversely (pitch can be adjusted)
2)automatically traces wire-speed, controls by PID
3)synchronization speed control with annealer.
4)Air capacity: 4 Kg/cm3
5) Brake: Magnetic type.
23. Tension control: Adopt wiggling counterpoise; You can know the tension from tension meter in monitor.
24. External drain pipe connector.
