Product Description

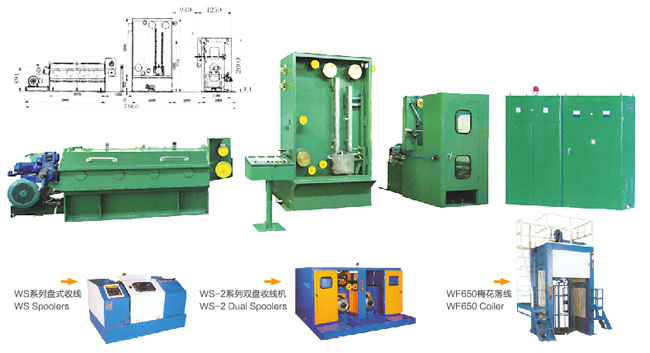

PL-ZL250/17 Intermediate Wire Drawing Machine
Machine composition:
1.1. ) Main body of drawing machine 1set
1-2. ) Detector accumulator----------------- 1 set
1-3. ) Take-up 1set
1-4. ) Length counters 1set
1-5. ) Driven motor c/w control 1set
1.1Main body of drawing machine
1.1. ) Horizontal type, 4 capstan and each one with 4 stages, finishing capstan with meter counter wheel.
1.1.2) Capstan material: Tungsten carbide costing ring insert type.
1.1.3) Capstan dia.: 80.89mm / 117.83mm / 171.63mm / 250mm
1.1.4) Finishing capstan Dia.: 250mm.
1.1.5) Machine brake: Pneumatic disk brake provide for emergency stop.
1.1.6) Front cover: Manual lift up/down type with observe window.
1.1.7) Lubricant: The inlet valve is provided on the side of machine for piping.
1.1.8)All the dies and copper wire are dipping into lubricant oil during outlet valve closed.
90AN Continuous Annealer Machine
Main Specification:
1. ] Main specification:
1.1. ) Type: 1 phases AC electric resistance type with double cooling sheaves, line to be connected with rod break down machine
1.2. ) Line speed: 1500MPM Max.
1.3. ) Finished wire dia: 0.5-1.35mm
1.4. ) Transformer: 90kVA dry type
1.5. ) Power source: AC 1 phases
2. ] Main specification:
2.1. ) Annealing machine 1set
2.2. ) 90kVA transformer 1set
2.3. ) Heat exchanger 1set(Optional)
2.4. ) Steam generator 1set(Optional)
2.5. ) Cooling tank 1set
2.6. ) Electric control panel 1set
3. ]Detail specifications:
3.1. ) Annealing machine:
3.1.1. ) Type: AC high current resistance heating type
3.1.2. ) Contact sheaves:
A. ) 250mm dia. X 12mm groove width
B. ) Sheave shaft cooling: By grease for each annealing sheave shaft
C. ) Electric current contact chamber and carbon brush use blower cooling.
3.1.3. ) Sheaves material: Copper wheels with Ni-Cr band
3.1.4. ) Speed range:
A. ) 0.5-1.0mm at 1200MPM.
B. ) 1.0-1.2mm at 900MPM.
C. ) 1.2-1.35mm at 600MPM.
3.1.5. ) Dry up of annealed wire done by two steps of air wiper on the outlet position of cooling groove
3.1.6. ) Annealing chamber: Made of Aluminum with wire passing grooves, a lot of ceramic rollers and resin plate fitting on the grooves
3.1.7. ) Front door:
A. ) Type: Up and down coiling door type, made of aluminum blades
B. ) Open and close of door done by electric motor driven
3.1.8. ) Anti-oxidation by air blow cooling solution
3.1.9. ) Driven:
A. ) Coupling annealer pulley with out put shaft pulley of drawing machine use multi-belts
B. ) Between annealer sheaves use double side gear belts
3.2. ) Transformer:
3.2.1. ) Capacity: 100 kVA
3.2.2. ) Input: 220V, AC 1 phases
3.2.3. ) Out put: 20-60V with zero hard wire controlled by SCR step less control
3.2.4. ) Primary current: 300A Max.
Secondary current: 2000A Max.
3.2.5. ) Dry type natural cooling
3.3. ) Zero-hard wire annealing control:
3.3.1. ) Type: True RMS SCR automatic Power regulator
3.3.2. ) Application: Current varied with the line speed through line techo-generator device to get a stable annealing current and homogeneous annealing wire
3.3.3. ) Annealing Current: Synchronization control system, Annealing current variety from zero to Max. Correspond current while the machine start from zero to setting a property current in any line speed with synchronization speed, the SCR voltage regulator automatic supply a property current in any line speed with synchronization possible to get nearly zero-hard wire during screw-up speed.
3.4. ) Cooling tank:
3.4.1. ) 600Lt capacity, install under the annealing machine
3.4.2. ) Cooling water circulating: Use a 2HP pump with temperature auto-control
By thermal sensor.
3.4.3)piping inlet 3 ", outlet 4 "
630mm Take-up
1)Type: Screw pintle type. For drum sizeØ 450mm/Ø 630mm.
2) line speed: 1600M/ min.
3) Take up Motor: 30HP AC motor.
4) Travaser motor: 0.2KW
5) Lifting motor: 0.4KW.
6) Bobbin load/unload: Manually move to in/out on platform.
